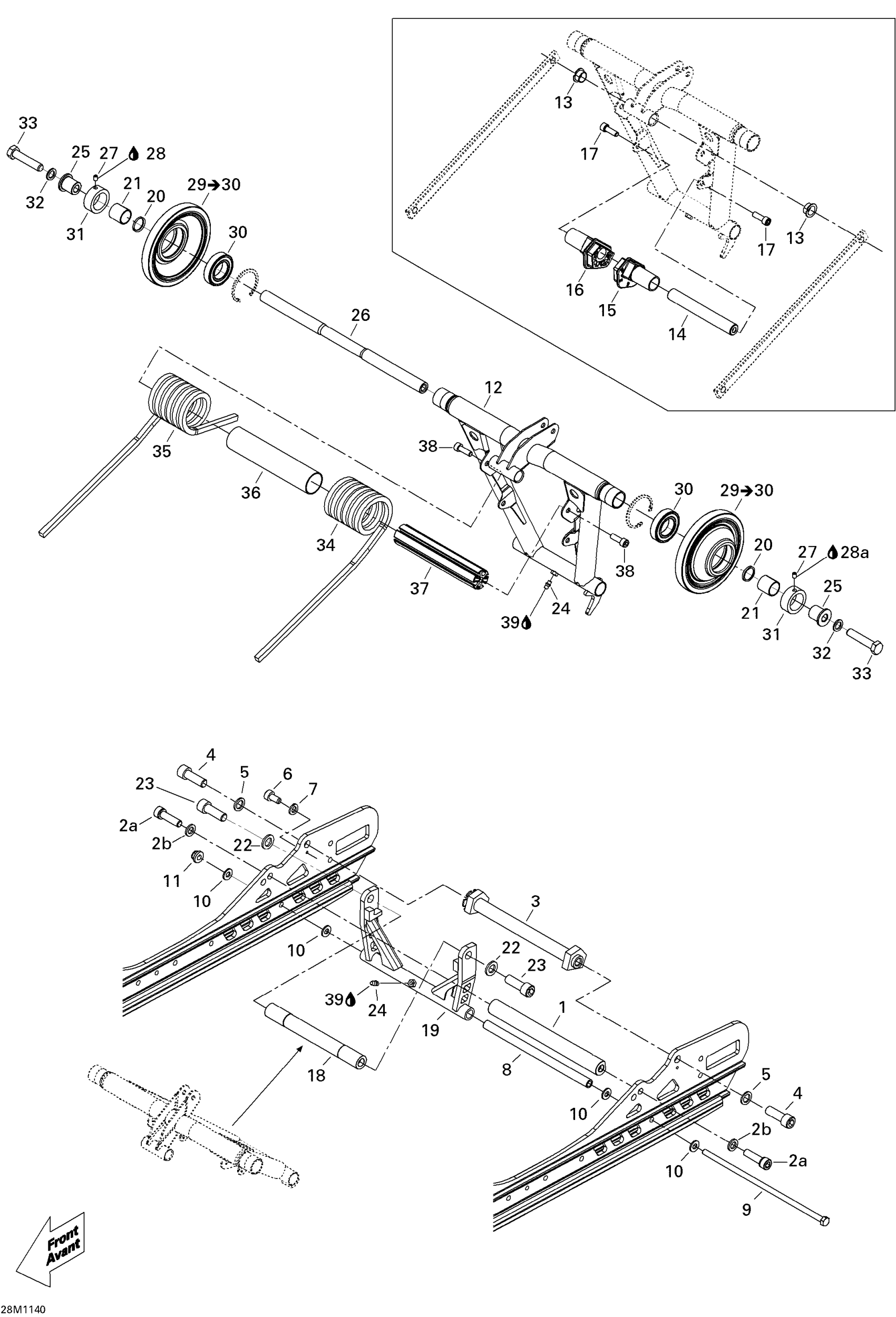

Ski-Doo MX Z X 600RS, 2011 Rear Arm Diagram

#

Description
Price

1

Limit Axle

503192715

$76.09

2a

Socket Screw M10 X 35

205003544

$1.60

2b

Washer

503189564

$0.70

3

CAM AXLE - Call your local BRP dealership

503192716

Unavailable

4

Socket Head Screw Scotch Grip Din.912

205523587

$2.00

5

Washer

503189276

$3.10

6

Socket Head Screw M6 X 12

205061260

$1.45

7

Lock Washer M6, Black

234161471

$0.51

8

Pivot Arm Axle

503189156

$20.12

9

Bolt M8 X 248mm

503192440

$29.07

10

Washer

503192494

$3.01

11

Elastic Flange Nut M8

250100131

Unavailable

12

Rear Arm

503193126

$319.37

13

Swivel Bushing

503191555

$5.54

14

Spring Cam Axe

503191178

$26.84

15

LH Spring Cam

503191191

$13.46

16

RH Spring Cam

503191190

$13.37

17

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

18

Lower Shaft

503192095

$44.75

19

Pivot Arm

503192701

$266.39

20

Washer

503191774

$2.18

21

Bushing

503191773

$13.19

22

Washer | 7415/7416. 7417/7418.

503189148

$2.64

23

Socket Head Screw Scotch Grip Din.912

205523587

$2.00

24

Grease Fitting

408200700

$3.21

25

Bushing

503191775

$14.81

26

Upper Shaft

503191776

$44.75

27

Socket Set Screw M6 X 8

206260844

$1.43

28

Loctite 243, 10 ml

293800060

$21.49

29

BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership

503192483

Unavailable

30

Ball Bearing

503191778

$11.12

31

Retaining Ring

503191782

$13.54

32

Washer

503189276

$3.10

33

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

34

LH Spring, Square

503191615

$58.18

35

RH Spring, Square

503191614

$58.18

36

Plastic Bushing

503191345

$6.69

37

Spring Axle

503191344

$33.55

38

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

39

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
