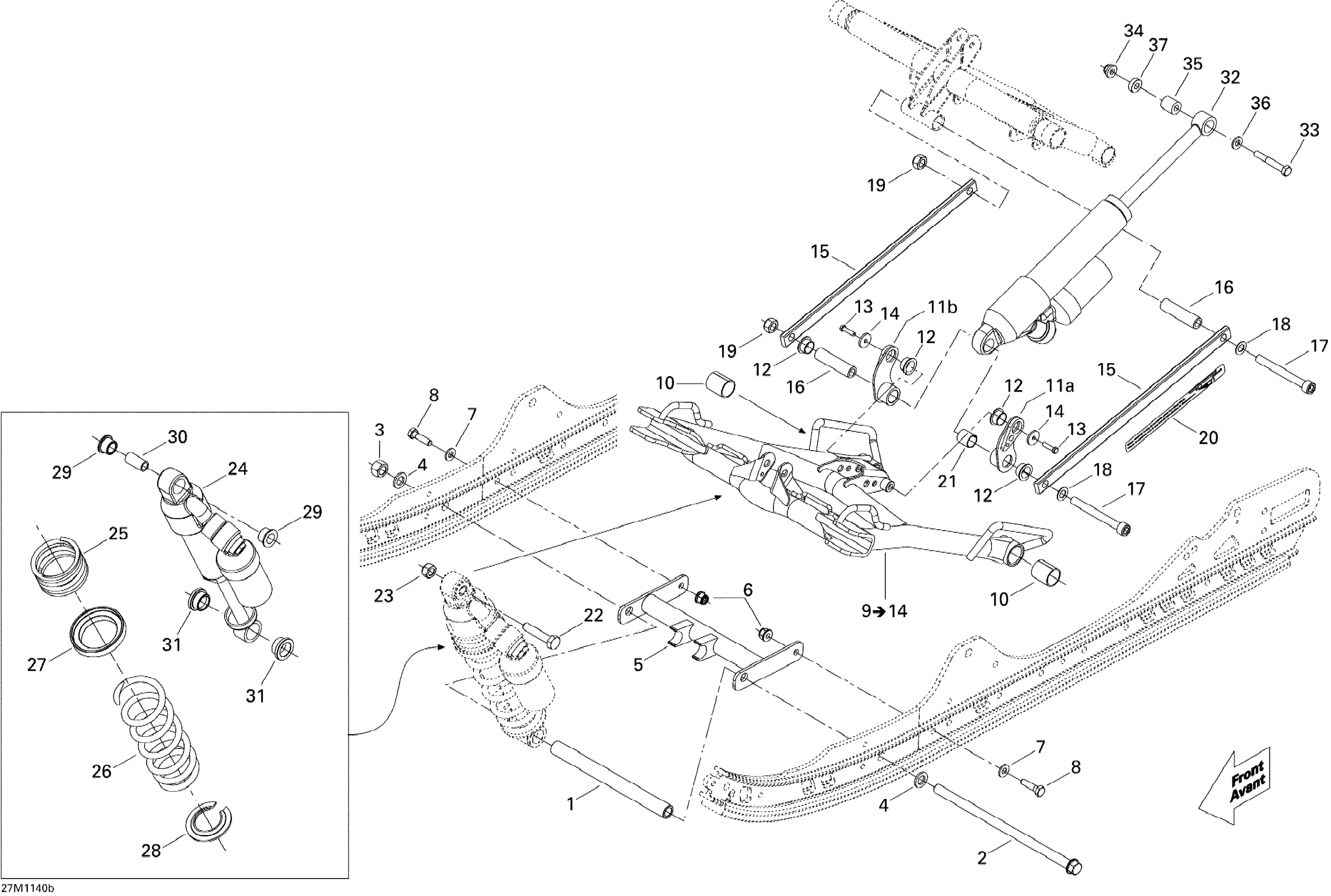

Ski-Doo MX Z X 600RS, 2011 Front Arm 2 Diagram

#

Description
Price

1

CENTER SHAFT PIVOT - Call your local BRP dealership

503192809

Unavailable

2

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

3

Hex. Nut M12

232021416

Unavailable

4

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

5

REINFORCEMENT - Call your local BRP dealership

503192711

Unavailable

6

Hex. Flange Elastic Nut M8

233281414

Unavailable

7

Washer

503189157

$3.20

8

Hex. Screw M8 X 30

207183044

Unavailable

9

Front Arm Ass'y

503192673

Unavailable

10

Bushing

503191554

Unavailable

11a

LH ROCKER ARM - Call your local BRP dealership

503192706

$49.20

11b

RH ROCKER ARM - Call your local BRP dealership

503192707

$49.20

12

Swivel Bushing

503191555

Unavailable

13

Hex. Screw M5 X 20

207152044

$0.88

14

Washer

250200016

Unavailable

15

ROD_LINK - Call your local BRP dealership

503192712

Unavailable

16

Bar Axle

503191192

$40.74

17

Socket Screw M10 X 90

205009044

$7.23

18

Washer

503175800

$3.26

19

Elastic Stop Nut M10

232500416

$1.56

20

Shock Position Decal

516005609

$16.89

21

Leg Cushion

505072663

Unavailable

22

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

23

Elastic Locking Nut M10 X 1.5

233601416

$1.68

24

CENTER SHOCK - Call your local BRP dealership

503192728

Unavailable

25

Black Spring

503192725

Unavailable

26

Black, Spring

503192724

Unavailable

27

Spring Spacer

503192743

Unavailable

28

Spring Stopper

503190271

Unavailable

29

Urethane Bushing

503189117

Unavailable

30

Bushing | Includes 240d to 240d1

503189282

Unavailable

31

CUSHION - Call your local BRP dealership

503192726

Unavailable

32

Rear Shock

503192722

Unavailable

33

Hex. Screw M8 X 55

207085586

$6.11

34

Hex. Elastic Flange Nut M8

233281416

Unavailable

35

Bushing

414936000

Unavailable

36

Washer

503189157

$3.20

37

Spacer

503190526

$8.72
