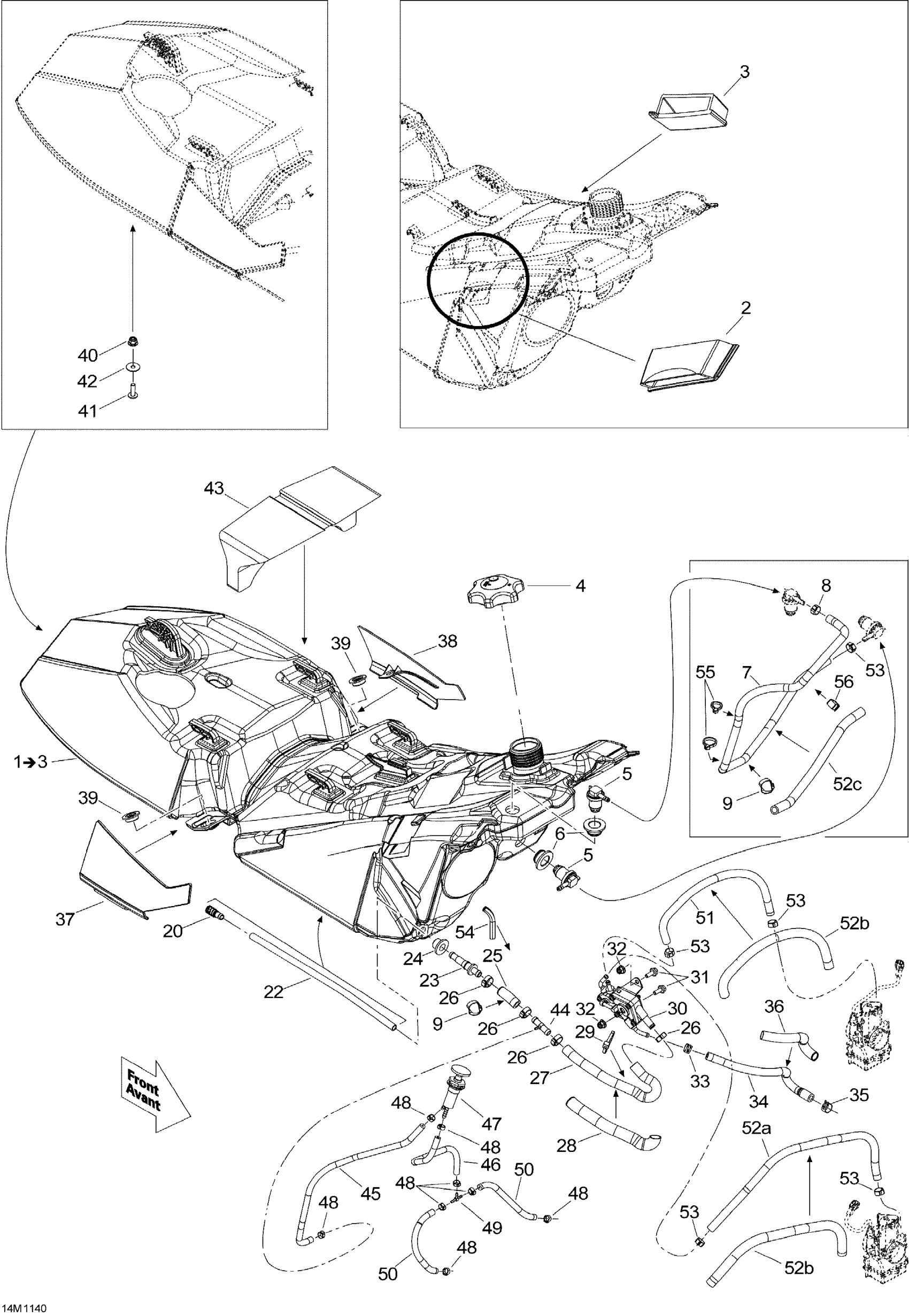

Ski-Doo MX Z X 600RS, 2011 Fuel System Diagram
#
Description
Price
1
FUEL TANK - Call your local BRP dealership
513033697
Unavailable
2
RH Panel Clip
513033471
Unavailable
3
LH Panel Clip
513033472
Unavailable
7
Hose
513033565
Unavailable
22
Polyurethane Hose 1000Mm Long
219704391
Unavailable
23
Male Connector
414872700
Unavailable
24
Grommet
513033435
Unavailable
25
HOSE 9.53MM ID - 40MM - Call your local BRP dealership
513033444
Unavailable
26
Crimp Clamp
293650053
Unavailable
27
FORMED HOSE - Call your local BRP dealership
513033439
Unavailable
28
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
31
Hex. Flange Screw M6 X 16
207661644
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
FORMED HOSE - Call your local BRP dealership
513033111
Unavailable
35
Universal Spring Clamp
513033029
Unavailable
36
Was 409901800 Tubing (13 mm)
219704400
Unavailable
37
RH Cap
513033418
Unavailable
38
LH Cap
513033419
Unavailable
40
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
42
Flat Washer
224060201
Unavailable
43
FOAM - Call your local BRP dealership
513033528
Unavailable
44
T-Fitting
415119300
Unavailable
45
HOSE - Call your local BRP dealership
709000665
Unavailable
46
HOSE - Call your local BRP dealership
709000665
Unavailable
47
Primer
513033441
Unavailable
49
T-Fitting
414222400
Unavailable
50
HOSE - Call your local BRP dealership
709000665
Unavailable
51
Hose
513033448
Unavailable
52a
Hose
513033448
Unavailable
52b
Was 409901800 Tubing (13 mm)
219704400
Unavailable
52c
Was 409901800 Tubing (13 mm)
219704400
Unavailable
54
TRIM 30000MM LONG - Call your local BRP dealership
219704405
Unavailable
55
Tie Wrap 142 mm
293750002
Unavailable
