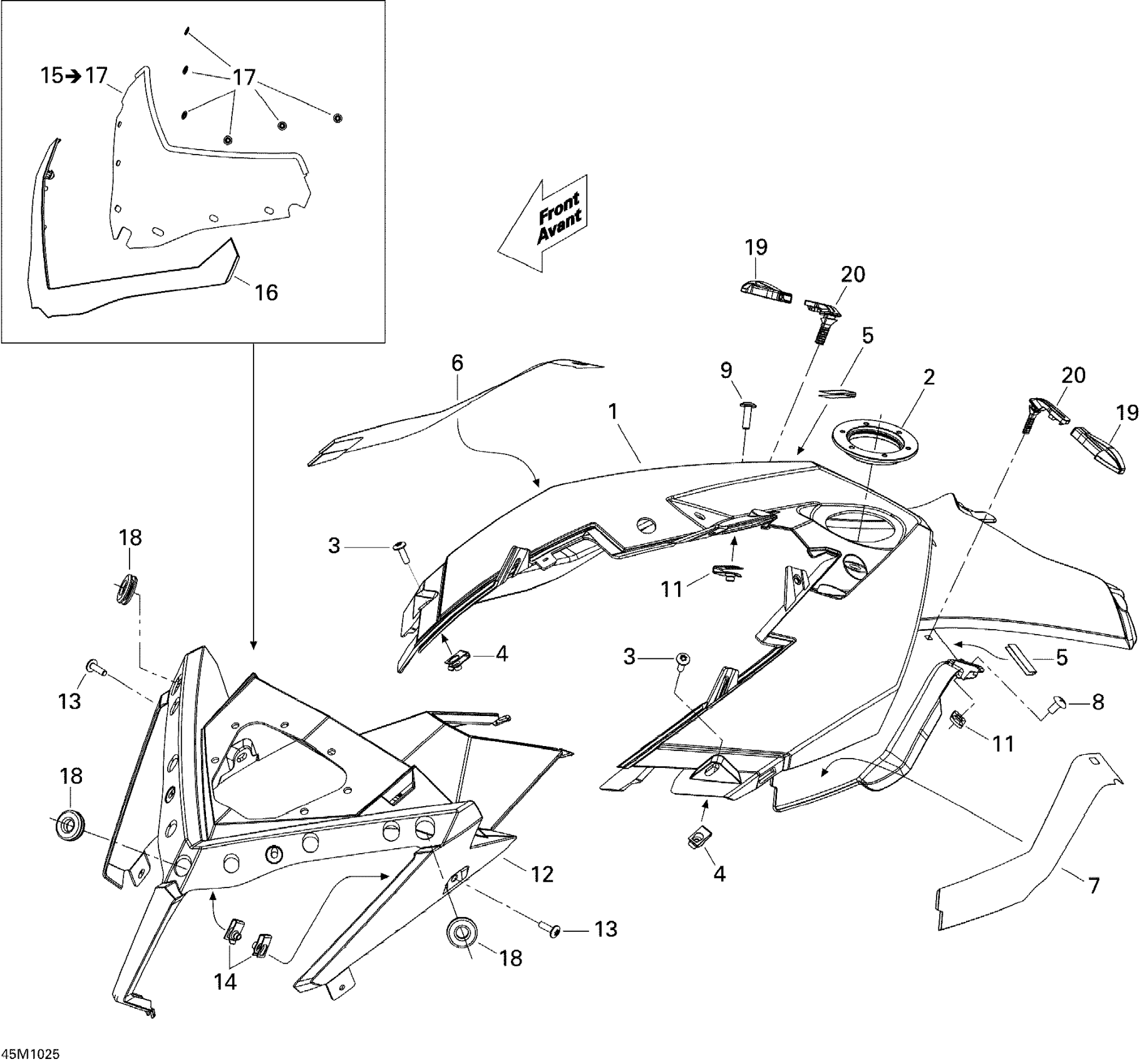

Ski-Doo MX Z X 600RS, 2010 Windshield And Console Diagram

#

Description
Price

1

YELLOW CONSOLE - Call your local BRP dealership

517304127

Unavailable

2

Console Nut

517304518

$13.78

3

Torx Screw M6 X 20

250000722

$1.34

4

Panel Nut M6 X 1.0

250100198

$1.73

5

Console Decal

517304105

$10.74

6

RH Decal

517304103

$16.89

7

LH Decal

517304104

$16.89

8

Torx Truss Screw M6 X 16

250000721

$1.39

9

Torx Screw M6 X 20

250000722

$1.34

11

Panel Nut M6 X 1.0

250100198

$1.73

12

INDICATOR SUPPORT - Call your local BRP dealership

517304699

Unavailable

13

Torx Screw M6 X 20

250000722

$1.34

14

Panel Nut M6 X 1.0

250100198

$1.73

15

Low Windshield Ass'y (140)

517304226

$102.28

16

Windshield Support Kit

860200089

$23.99

17

Push Nut

732610072

$1.72

18

Grommet

517303756

$3.15

19

End Piece Latch

517304075

$4.43

20

Panel Latch

517303981

$10.00
