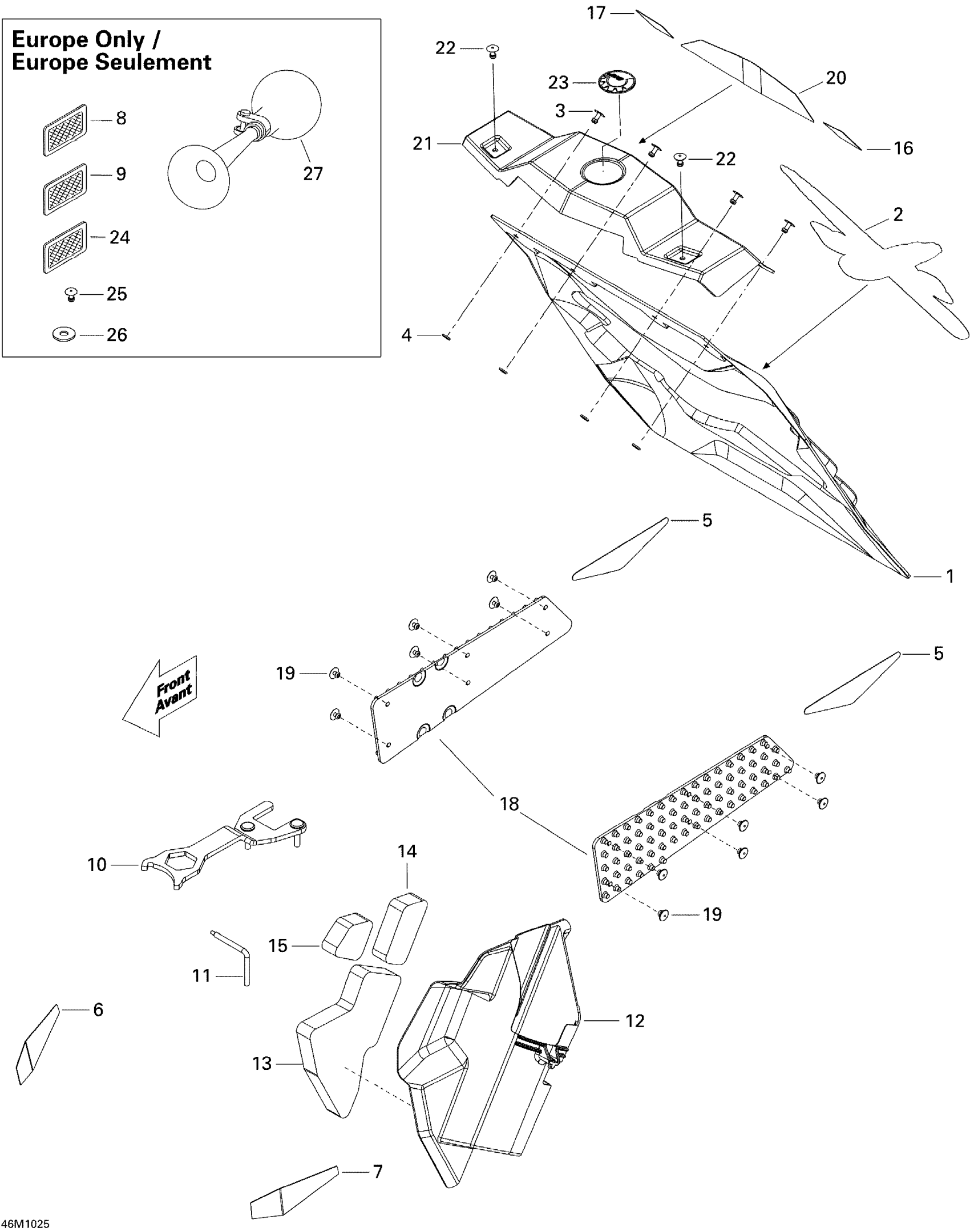

Ski-Doo MX Z X 600RS, 2010 Utilities Diagram

#

Description
Price

1

Snow Flap

520001441

$85.79

2

Decal X

516003647

$44.75

3

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

4

Flat Washer

517225900

$0.16

5

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

5

Rear Reflector, Amber | Europe

520000311

Unavailable

6

Yellow, RH Front Reflector

520000718

$12.15

7

Yellow, LH Front Reflector

520000719

$12.15

8

Amber, Reflector

520000271

$18.63

9

White, Reflector

415037900

$18.63

10

WRENCH - Call your local BRP dealership

520000721

Unavailable

11

Belt Installation Tool

417127044

$12.99

12

Tool Kit Rack

520000842

$15.99

13

Foam

520001059

$11.64

14

Foam

520001061

$9.93

15

Foam

520001062

$5.33

16

WARNING DECAL, SECURITY - Call your local BRP dealership

520000695

Unavailable

17

WARNING DECAL, LOAD - Call your local BRP dealership

520000697

Unavailable

18

Grip Plate Kit

860200164

$41.76

19

Pop Rivet 3/16"

293150103

$0.52

20

REFLECTOR - Call your local BRP dealership

520000764

Unavailable

21

COVER - Call your local BRP dealership

520000750

Unavailable

22

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

23

BRP Logo 48 mm

219903305

$16.39

24

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

25

Pop Rivet 3/16"

293150008

$0.46

26

Washer

517124300

$0.18

27

Horn

549011291

$34.30
