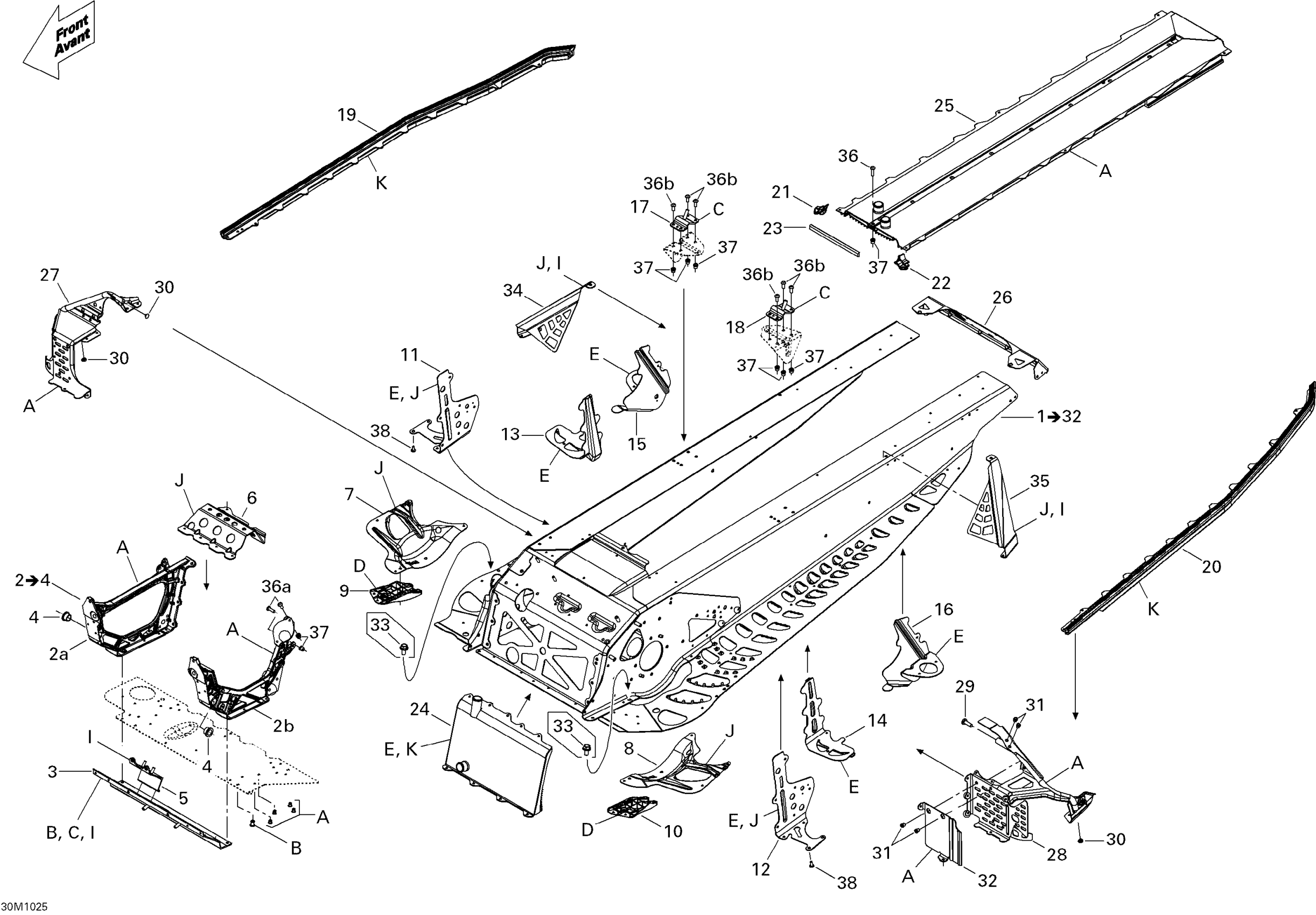

Ski-Doo MX Z X 600RS, 2010 Frame Diagram

#

Description
Price

1

FRAME ASS'Y - Call your local BRP dealership | Includes 10 to G

415129782

Unavailable

2

E Module | Includes 10n to 10at

518327567

Unavailable

2a

RH Member

518326795

Unavailable

2b

LH Member

518326796

$210.74

3

Front Member

518326198

$59.97

4

Leg Bushing

505072690

Unavailable

5

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

6

LINK CROSS - Call your local BRP dealership

518325796

Unavailable

7

Foot Reinforcement RH

518326468

Unavailable

8

Foot Reinforcement LH

518326469

Unavailable

9

RH Deflector, Black Polypropylene

518325782

Unavailable

10

LH Deflector, Black Polypropylene

518325783

Unavailable

11

RH Front Retainer

518326460

Unavailable

12

LH FRONT RETAINER - Call your local BRP dealership

518326461

Unavailable

13

RH REINFORCEMENT - Call your local BRP dealership

518325747

Unavailable

14

LH REINFORCEMENT - Call your local BRP dealership

518325748

Unavailable

15

RH REAR SUPPORT - Call your local BRP dealership

518326766

Unavailable

16

LH REAR SUPPORT - Call your local BRP dealership

518326767

Unavailable

17

RH Rear Base

518325973

Unavailable

18

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

19

RH FOOT ROLLER - Call your local BRP dealership | MXZ XRS

518326282

Unavailable

20

LH Foot Roller | MXZ XRS

518326283

Unavailable

21

RH SEAL - Call your local BRP dealership

518325653

Unavailable

22

LH SEAL - Call your local BRP dealership

518325654

Unavailable

23

NEOPRENE SEAL - Call your local BRP dealership

293200105

Unavailable

24

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

25

REAR RADIATOR - Call your local BRP dealership | Includes 1110 to 1110a

518326344

Unavailable

26

Rear Cap

518327105

Unavailable

27

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

28

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

29

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

30

Full Moon Dart 5 mm

293730042

Unavailable

31

Insert M5 X 0.8

293450268

Unavailable

32

PLATE - Call your local BRP dealership

518326188

Unavailable

33

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

34

RH FOOT STIFFENER - Call your local BRP dealership

518326280

Unavailable

35

LH FOOT STIFFENER - Call your local BRP dealership

518326281

Unavailable

36a

Hex. Flange Screw M6 X 20

207662044

Unavailable

36b

Hex. Flange Screw M6 X 16

207661644

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Torx Screw M6 X 16

250000365

$1.74

A

Stavex Rivet

293150144

Unavailable

B

Hemlock Rivet 6.5 mm

293150120

$7.23

C

Hemlock Rivet, 6.5 mm

293150119

$4.00

D

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

E

Avex Rivet

390909200

Unavailable

F

Henrob Rivet

293150091

Unavailable

G

Henrob Rivet

293150146

Unavailable

H

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

I

Hemlock Rivet, 6.4 mm

293150174

$6.43

J

Avex Rivet

390909100

$0.29

K

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

L

Monobolt Rivet 6.4

293150182

$2.91
