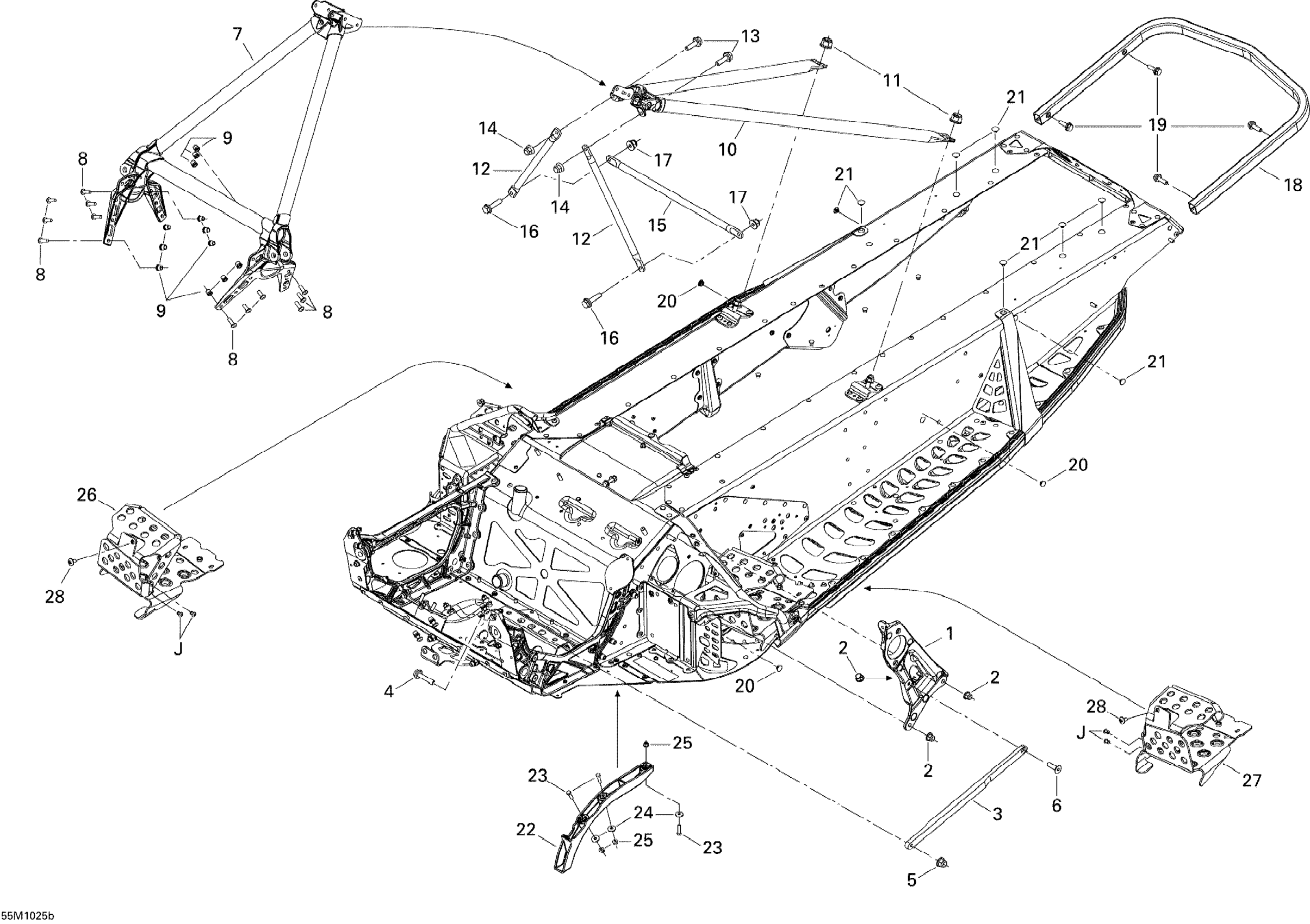

Ski-Doo MX Z X 600RS, 2010 Frame and Components 2 Diagram

#

Description
Price

1

Pulley Support

518328346

$114.15

2

Hex. Flange Elastic Nut M8

233281414

$1.31

3

LINK - Call your local BRP dealership

518326118

Unavailable

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Torx Screw M8 X 25, Scotch Grip

250000143

$2.03

7

Front Member

518327565

$306.69

8

Hex. Flange Screw M6 X 20

207662044

$1.91

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

10

Rear Member

518326559

$237.28

11

Hex. Flange Elastic Nut M8

233281414

$1.31

12

Upper Lateral Column Support

518325114

$20.12

13

Hex. Flange Screw M6 X 20

207662044

$1.91

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

Center Column Support

518325115

$20.12

16

Hex. Flange Screw M6 X 25

207662544

$0.61

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

18

Clear Rear Bumper

518324980

$94.00

19

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

20

Full Moon Dart 8 mm

293730041

$2.06

21

Full Moon Dart 5 mm

293730042

$2.06

22

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

23

Hex. Screw M5 X 20

207152044

$0.85

24

Washer | DS 650 X

391301600

$0.46

25

Hex. Flange Elastic Nut M5

233251414

$1.91

26

FOOTREST RH - Call your local BRP dealership | Includes 27 to 28

518326396

Unavailable

27

FOOTREST LH - Call your local BRP dealership | Includes 29 to 30

518326397

Unavailable

28

Torx Truss Screw M6 X 12

250000767

$1.91

A

Stavex Rivet

293150144

$0.75

B

Hemlock Rivet 6.5 mm

293150120

$7.01

C

Hemlock Rivet, 6.5 mm

293150119

$3.88

D

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

E

Avex Rivet

390909200

$0.28

F

Henrob Rivet

293150091

$0.73

G

Henrob Rivet

293150146

$1.87

H

Ornit Rivet 6,5 X 14.5

293150266

$1.88

I

Hemlock Rivet, 6.4 mm

293150174

$6.24

J

Avex Rivet

390909100

$0.28

K

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

L

Monobolt Rivet 6.4

293150182

$2.82
