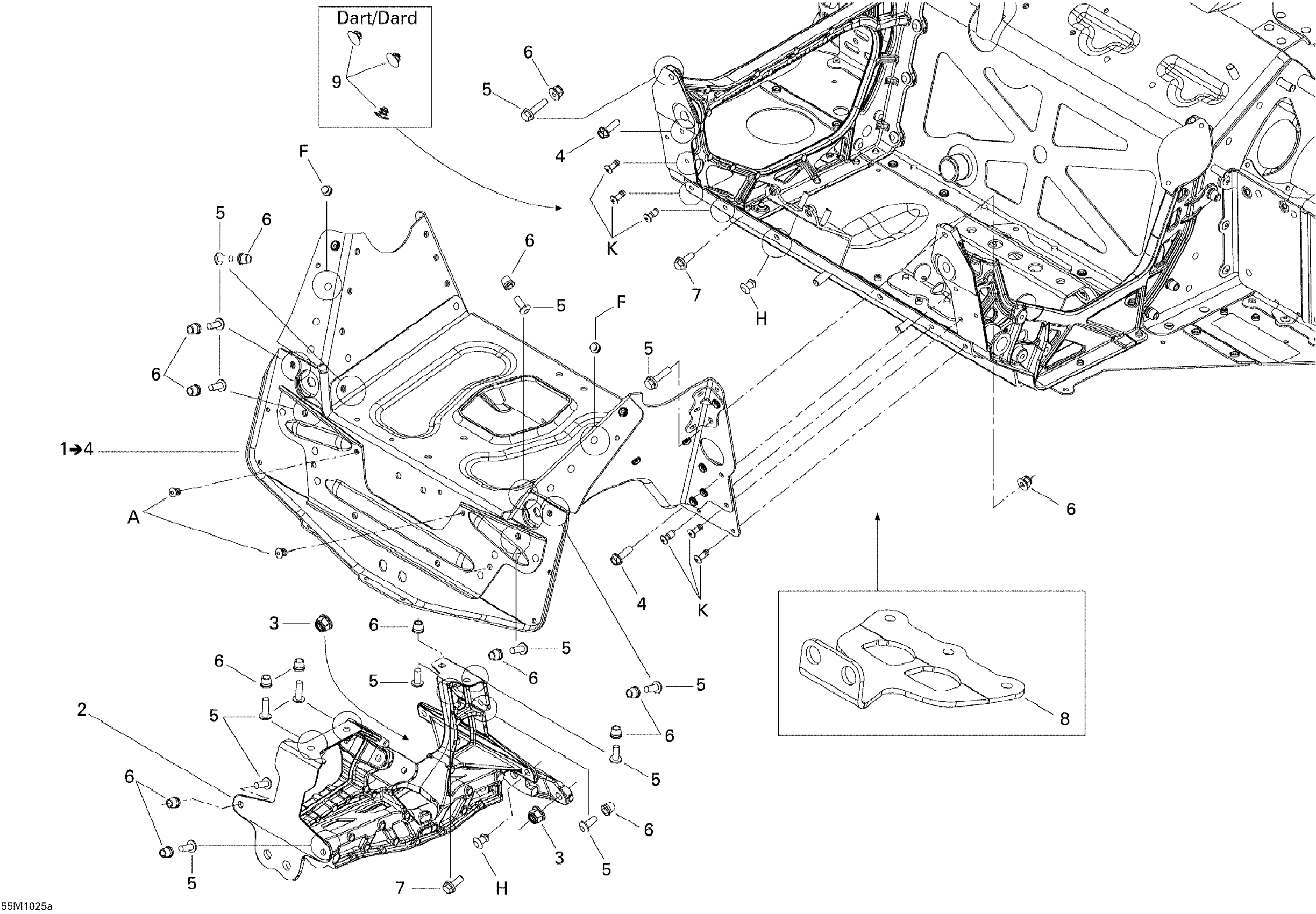

Ski-Doo MX Z X 600RS, 2010 Frame and Components 1 Diagram

#

Description
Price

1

Cross Member S Module | Package Iron Dog

518328322

$439.20

2

Front Suspension Support

518327487

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Hex. Flange Screw M6 X 16

210261650

$1.22

5

Hex. Flange Screw M6 X 25

207662544

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Hex. Flange Screw M6 X 16

207661644

Unavailable

8

MODULE REINFORCEMENT - Call your local BRP dealership

518326466

Unavailable

9

Full Moon Dart 5 mm

293730042

Unavailable

A

Stavex Rivet

293150144

Unavailable

B

Hemlock Rivet 6.5 mm

293150120

$7.23

C

Hemlock Rivet, 6.5 mm

293150119

$4.00

D

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

E

Avex Rivet

390909200

Unavailable

F

Henrob Rivet

293150091

Unavailable

G

Henrob Rivet

293150146

Unavailable

H

Ornit Rivet 6,5 X 14.5

293150266

Unavailable

I

Hemlock Rivet, 6.4 mm

293150174

$6.43

J

Avex Rivet

390909100

$0.29

K

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

Unavailable

L

Monobolt Rivet 6.4

293150182

$2.91
