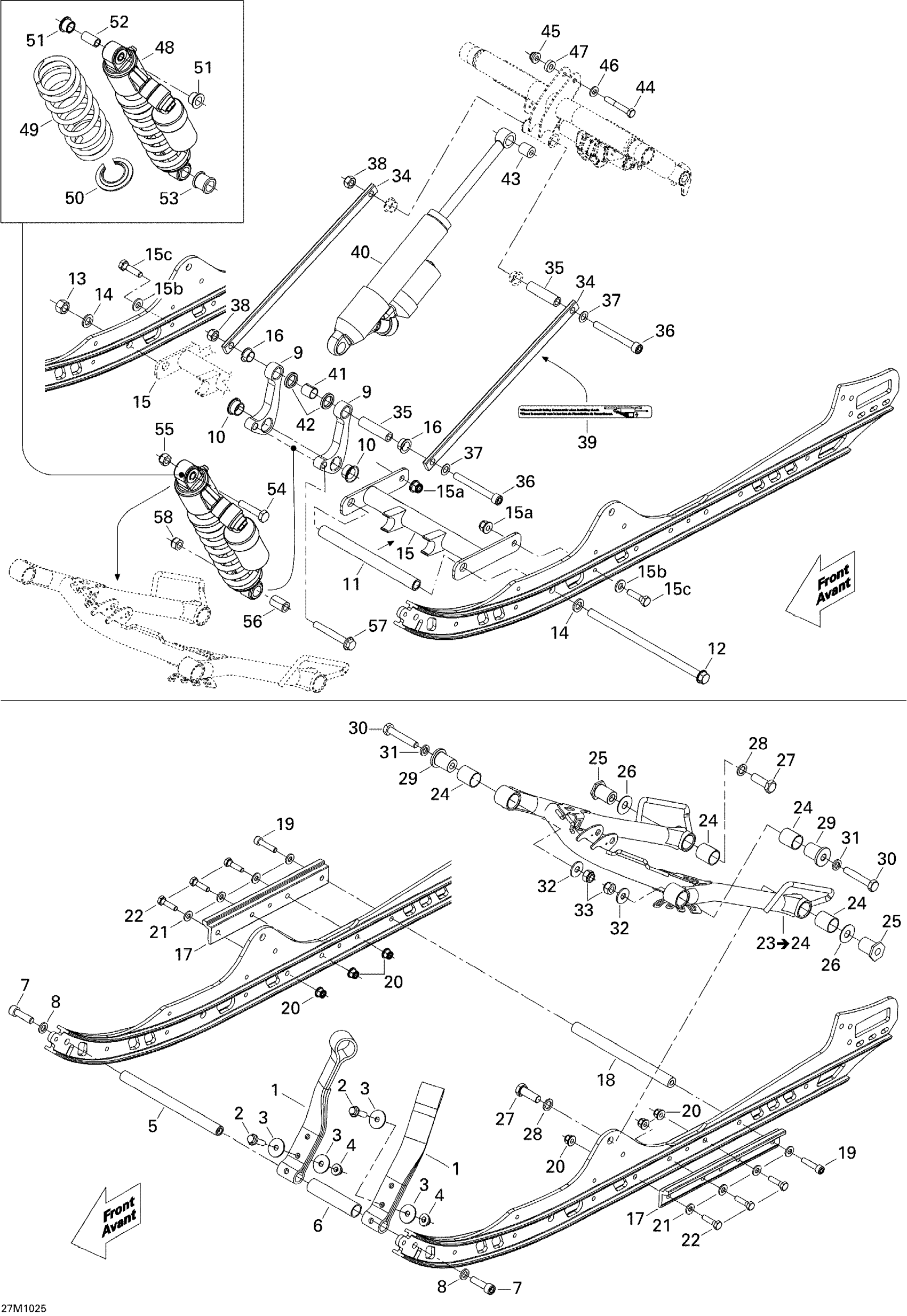

Ski-Doo MX Z X 600RS, 2010 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

Unavailable

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

3

Flat Washer

224081301

$0.86

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

RUNNER AXEL - Call your local BRP dealership

503192115

Unavailable

6

Spacer

503189265

$4.66

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

8

Washer

503189564

Unavailable

9

Rocker Arm

503191161

Unavailable

10

Bushing

503191552

$5.71

11

CENTER SHAFT PIVOT - Call your local BRP dealership

503192809

Unavailable

12

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

13

Hex. Nut M12

232021416

Unavailable

14

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

15

REINFORCEMENT - Call your local BRP dealership

503192334

Unavailable

15a

Hex. Flange Elastic Nut M8

233281414

Unavailable

15b

Washer

503189157

$3.20

15c

Hex. Screw M8 X 30

207183044

Unavailable

16

Swivel Bushing

503191555

Unavailable

17

RAIL REINFORCEMENT - Call your local BRP dealership

503191804

Unavailable

18

Axle

503151600

$15.35

19

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.55

20

Hex. Flange Elastic Nut M8

233281414

Unavailable

21

Washer

503189157

$3.20

22

Hex. Screw M8 X 30

207183044

Unavailable

23

FRONT ARM - Call your local BRP dealership | Includes 23 to 24

503192096

Unavailable

24

Bushing

503191554

Unavailable

25

Lower Axle

503191966

Unavailable

26

Washer

503190656

Unavailable

27

Hex. Cap Screw M12 X 35

250000537

$2.63

28

Washer

503189276

Unavailable

29

Axle

503190698

Unavailable

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006084

Unavailable

31

Washer

503189564

Unavailable

32

Flat Washer M10 | 4X4

250200014

$1.17

33

Elastic Locking Nut M10 X 1.5

233601416

$1.68

34

TIE ROD - Call your local BRP dealership

503191573

Unavailable

35

Bar Axle

503191192

$40.74

36

Socket Screw M10 X 90

205009044

$7.23

37

Washer

503175800

$3.26

38

Elastic Stop Nut M10

232500416

$1.56

39

Shock Position Decal

516005609

$16.89

40

Rear Shock

503192325

Unavailable

41

Bushing

503191553

Unavailable

42

Plastic Spacer

503190694

Unavailable

43

Bushing

414936000

Unavailable

44

Hex. Screw M8 X 55

207085586

$6.11

45

Hex. Elastic Flange Nut M8

233281416

Unavailable

46

Washer

503189157

$3.20

47

Spacer

503190526

$8.72

48

CENTER SHOCK - Call your local BRP dealership

503192327

Unavailable

49

BLACK SPRING - Call your local BRP dealership

503192328

Unavailable

50

Spring Stopper

503194270

Unavailable

51

Urethane Bushing

503189117

Unavailable

52

Bushing | Includes 240d to 240d1

503189282

Unavailable

53

Bushing

503189271

Unavailable

54

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

55

Elastic Locking Nut M10 X 1.5

233601416

$1.68

56

Central Shock Axle

503190604

Unavailable

57

Hex. Flange Screw M10 X 75

207607544

Unavailable

58

Elastic Stop Nut M10

232500416

$1.56
