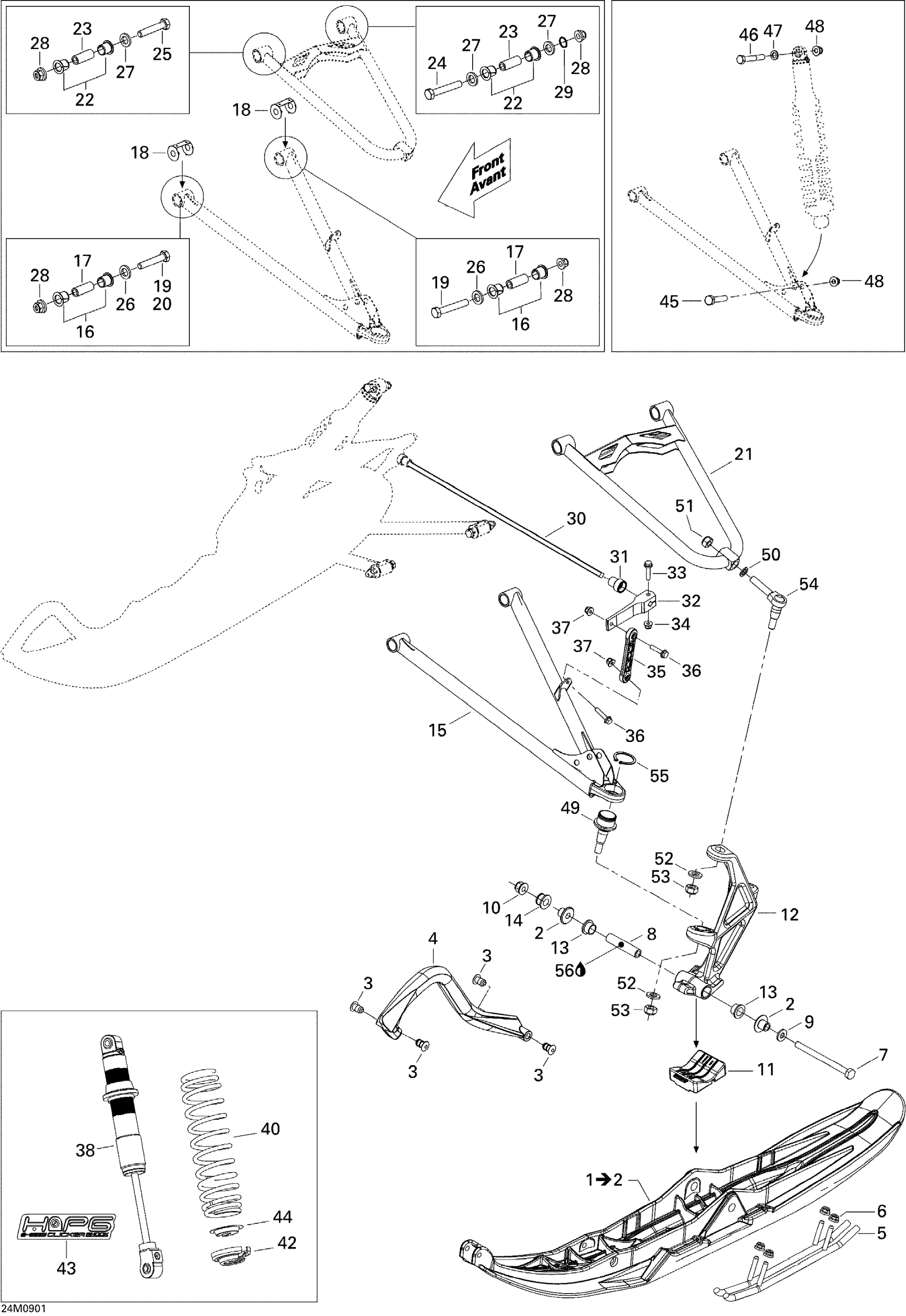

Ski-Doo MX Z X 600 H.O. ETEC, 2009 Front Suspension And Ski Diagram

#

Description
Price

1

RH Pilot Ski 5.7, Black

505072478

Unavailable

1

LH Pilot Ski 5.7, Black

505072479

Unavailable

2

Ski Bushing

505071781

$15.35

3

Retainer 17mm long

505071812

$4.43

4

Black, Handle

505070963

$35.35

4

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

8

Spacer

506133300

$19.97

9

Washer

732900049

$0.57

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Ski Stopper

505071779

$16.12

12

Clear, LH Ski Leg

505073007

$233.05

12

Clear, RH Ski Leg

505073008

$226.89

13

Leg Bushing

505072690

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

RH LOWER ARM - Call your local BRP dealership

505072367

$194.58

15

LH LOWER ARM - Call your local BRP dealership

505072366

$194.58

16

Bushing

505072208

$3.14

17

Bushing

505072214

$15.26

18

Wear Plate

505072634

$4.45

19

Screw Hex. M10 X 70

250001024

$1.74

20

Not Available As Spare Parts

XXX

Unavailable

21

Upper Arm | SE White/White Models

505072374

$143.05

22

Bushing

505072250

$3.14

23

Sleeve

505072143

$8.62

24

Screw Hex. M10 X 60

250001023

$1.74

25

Screw Hex. M10 X 50

250001022

$1.42

26

Washer

503189564

$0.72

27

Washer

505072392

$4.65

28

Hex. Flange Elastic Nut M10

250100165

$0.70

29

O-Ring

505072448

Unavailable

30

Stabilisator

505072602

$71.99

31

Bushing

505072064

$2.22

32

Stabilisator Lever

505072394

$16.12

33

Hex. Flange Screw M6 X 30

207663046

$1.42

34

Elastic Flange Nut M6 X 1.0

233261416

$1.74

35

Sway Bar Double Joint Link

505072204

$19.20

36

Hex. Flange Screw M6 X 30

207663046

$1.42

37

Elastic Flange Nut M6 X 1.0

233261416

$1.74

38

FRONT SHOCK HPG - Call your local BRP dealership | Includes 1 to 7

505072678

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Deep Black, Spring

505072537

$66.89

40

YELLOW SPRING - Call your local BRP dealership | REN BC

505072233

$46.12

40

YELLOW SPRING - Call your local BRP dealership | RENEGADE ADR Except 1000

505072230

$46.12

41

Not Available As Spare Parts

XXX

Unavailable

42

Spring Stopper

706200881

$10.30

43

HPG DECAL - Call your local BRP dealership

505072222

$6.95

44

Cap

706200785

$4.42

45

Hex. Screw M10 X 55

207005544

$1.85

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

47

Washer

503189564

$0.72

48

Hex. Flange Elastic Nut M10

233201414

$1.26

49

Ball Joint

505073636

$49.97

50

Washer

503189276

$3.20

51

Hex. Elastic Hex. Nut M12

250100089

$0.39

52

Flat Washer 12 mm

234021410

$0.68

53

Hex. Elastic Hex. Nut M12

250100089

$0.39

54

Upper Ball Joint

505072257

$16.89

55

Circlip

293370035

$2.55

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
