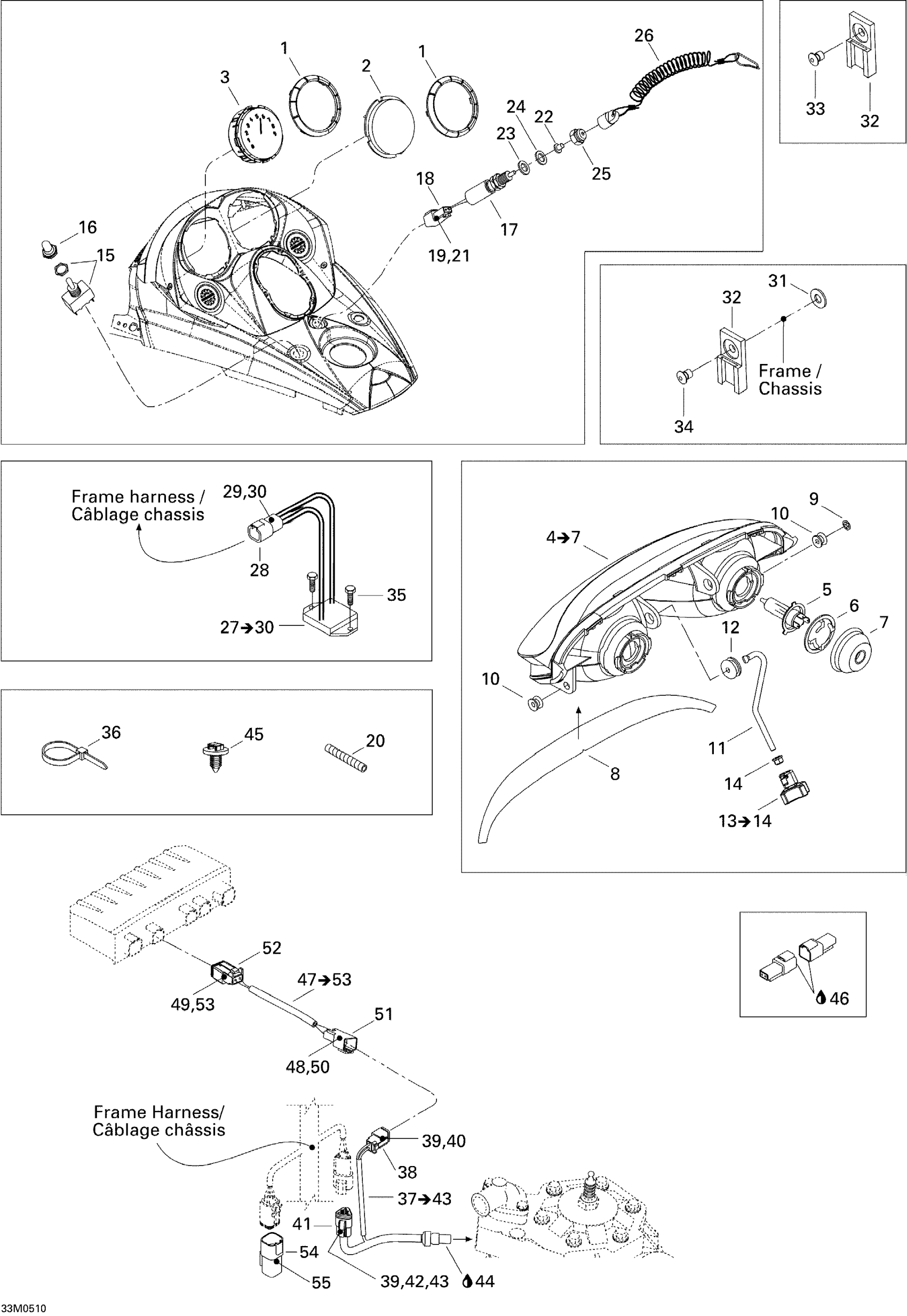

Ski-Doo MX Z X 440 Racing, 2005 Electrical System Diagram

#

Description
Price

1

Gauge Ring This part replaces 515176242.

515179005

Unavailable

2

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

3

Tachometer

515176265

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

Switch (Heating Grip) | FREERIDE

410107300

$34.58

16

Switch Cover

515175281

$15.03

17

Brake Switch

515175653

$15.57

18

Male Terminal Housing, 2 Circuits

515175665

$8.02

19

Male Lock, 2 Circuits

409207500

$3.02

20

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

21

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

22

Plunger Cap

570151100

$10.14

23

Washer

250200032

Unavailable

24

WASHER - Call your local BRP dealership

510004418

Unavailable

25

Switch Nut

415073500

Unavailable

26

Cap Ass'Y This part replaces 515176462.

515178292

Unavailable

27

VOLTAGE REGULATOR - Call your local BRP dealership | Includes 27 to 30

515175655

Unavailable

28

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

29

Male Terminal

515175568

$7.48

30

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

31

Flat Washer

517225900

$0.17

32

Clip

270000141

$8.33

33

Avdel Rivet 3/16"

293150037

$0.47

34

Pop Rivet 3/16”

390410100

Unavailable

35

Hex. Flange Screw M6 X 16

210261650

$1.22

36

Tie Wrap 368 mm

293750008

$0.85

37

TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT

515176041

Unavailable

38

Female Terminal Housing, 2 Circuits

515175670

Unavailable

39

Female Terminal

278000632

Unavailable

40

Female Lock, 2 Circuits

515175675

Unavailable

41

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

42

Female Terminal

278000632

Unavailable

43

Female Lock, 3 Circuits

515175676

Unavailable

44

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

45

Mount Dart

293730040

$0.86

46

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

47

Temperature Harness | Includes 47 to 53

515175963

Unavailable

48

Male Terminal

278000631

$4.12

49

Female Terminal

278000632

Unavailable

50

Male Lock, 2 Circuits

409207500

$3.02

51

Male Terminal Housing, 2 Circuits

515175665

$8.02

52

Female Terminal Housing, 2 Circuits

515175670

Unavailable

53

Female Lock, 2 Circuits

515175706

Unavailable

54

Male Terminal Housing, 6 Circuits

515175668

$14.02

55

Sealing Cap

293000052

Unavailable
