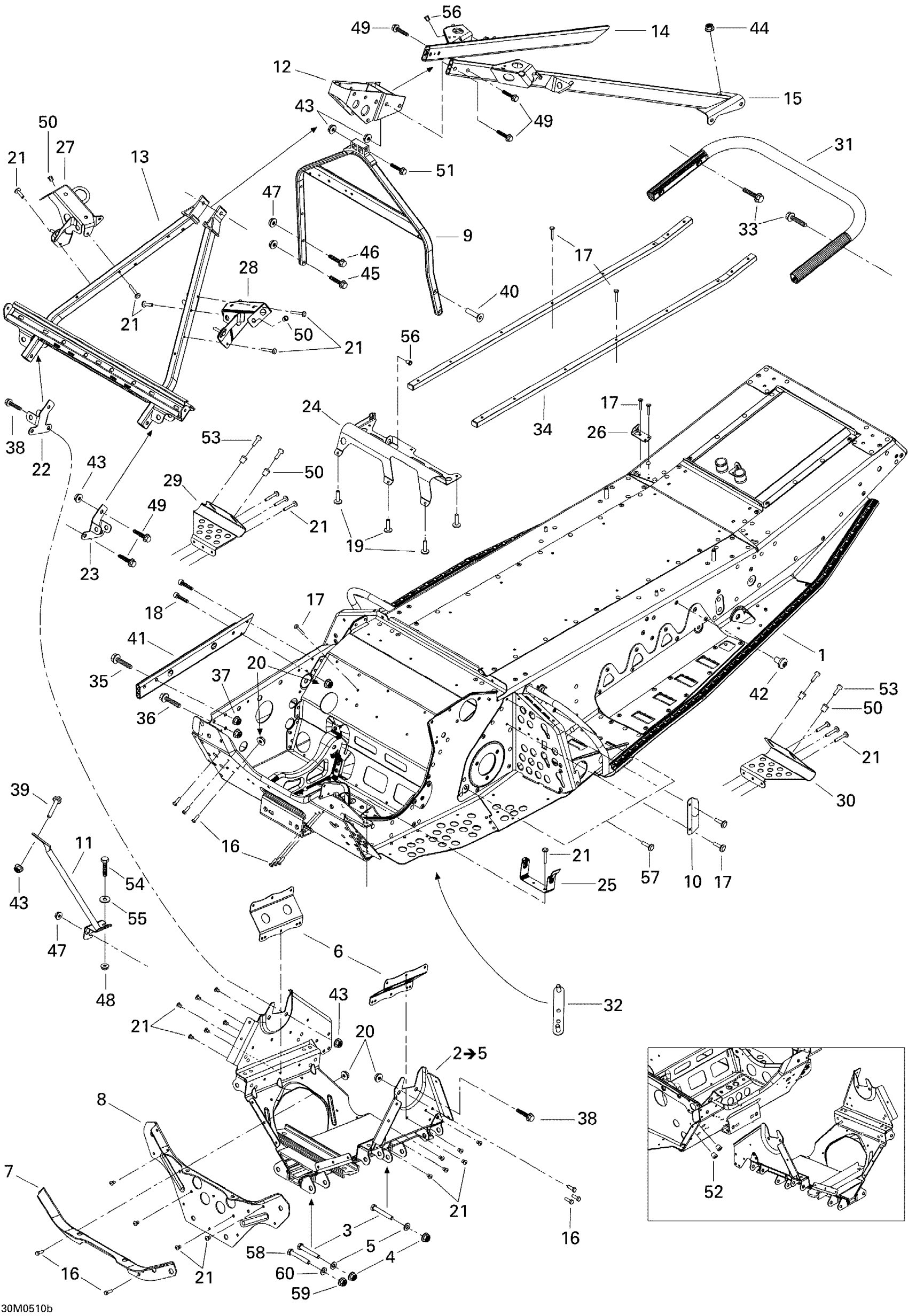

Ski-Doo MX Z X 440 Racing, 2005 Frame and Components Diagram

#

Description
Price

1

Frame | Includes 1 to 41

415128929

Unavailable

2

Front Cross Member | Includes 2 to 5

518324718

Unavailable

3

Hex. Screw M8 X 55

207085544

$1.62

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

Flat Washer 8 mm

234081410

Unavailable

6

CORNER REINFORCEMENT - Call your local BRP dealership

518324181

Unavailable

7

Plate Reinforcement

518324107

Unavailable

8

Front Plate

518324726

Unavailable

9

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

10

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

11

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

12

Bracket Block

518323853

Unavailable

13

UPPER CROSS MEMBER - Call your local BRP dealership

518324574

Unavailable

14

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

15

LH Member

518324183

Unavailable

16

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

17

Pop Rivet 3/16"

390402200

$0.26

18

Socket Screw M5 X 16

205051644

$2.18

19

Pop Rivet 3/16"

390402400

Unavailable

20

Hex. Flange Elastic Nut M5

233251414

Unavailable

21

Avex Rivet

390909200

Unavailable

22

RH SHOCK BRACKET - Call your local BRP dealership

518322461

$8.43

23

LH SHOCK BRACKET - Call your local BRP dealership

518322462

$8.43

24

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

25

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

26

Trunk Bracket, Black

518323274

Unavailable

27

RH Console Support

518323535

Unavailable

28

LH Console Support

518323536

Unavailable

29

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

30

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

31

REAR BUMPER - Call your local BRP dealership

518324465

Unavailable

32

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

33

Hex. Flange Screw M8 X 20

207682044

Unavailable

34

Tunnel Protector

518324585

Unavailable

35

Hex. Screw M6 X 30

207063044

Unavailable

36

Hex. Screw M6 X 18

207161844

Unavailable

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

38

Hex. Flange Screw M8 X 20

207682044

Unavailable

39

Hex. Flange Screw M8 X 25

207682544

$0.90

40

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

41

RH Tunnel Stiffener

518324096

Unavailable

42

Pan Head Torx Screw M8 X 12

250000887

$1.56

43

Hex. Flange Elastic Nut M8

233281414

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

Hex. Flange Screw M6 X 25

207662544

Unavailable

46

Hex. Flange Screw M6 X 35

207663544

$0.74

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

Elastic Stop Nut M6

232561414

Unavailable

49

Hex. Flange Screw M8 X 35

207683544

$1.39

50

Insert

293450275

Unavailable

51

Hex. Flange Screw M8 X 70

207687044

Unavailable

52

Insert

293450166

Unavailable

53

Hex. Flange Screw M6 X 20

207662044

Unavailable

54

Hex. Screw M6 X 14

207161444

$0.48

55

Flat Washer

224061121

$0.44

56

Threaded Insert M6 X 1.0

250100242

Unavailable

57

Panel Fastener

518321954

Unavailable

58

Hex. Screw M8 X 55

207085544

$1.62

59

Hex. Flange Elastic Nut M8

233281414

Unavailable

60

Flat Washer 8 mm

234081410

Unavailable
