Description

Price

1

FRONT BOTTOM PAN - Call your local BRP dealership

502006733

Unavailable

2

BOTTOM PAN PLATE - Call your local BRP dealership

502006706

$10.74

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4

Pop Rivet 3/16”

293150108

$1.23

5

Pop Rivet 3/16"

293150103

Unavailable

6

Washer

517124300

Unavailable

7

Nut Welded, M6

293100003

Unavailable

8

RH BOTTOM PAN - Call your local BRP dealership

502006729

$45.99

9

LH BOTTOM PAN - Call your local BRP dealership

502006730

$45.99

10

Bracket

502006799

Unavailable

11

Avex Rivet

390909200

Unavailable

12

Pop Rivet 3/16”

390410100

Unavailable

13

Hex. Screw M6 X 14

207161444

$0.48

14

Bumper, Yellow

502006680

$155.35

15

Lock Washer M6, Black

234161471

$0.52

16

Flat Washer

224061121

$0.44

17

Support

502006772

$36.12

18

Black, Nylon Cap

414916600

$4.32

19

LH FOAM - Call your local BRP dealership

502006722

Unavailable

20

RH FOAM - Call your local BRP dealership

502006721

Unavailable

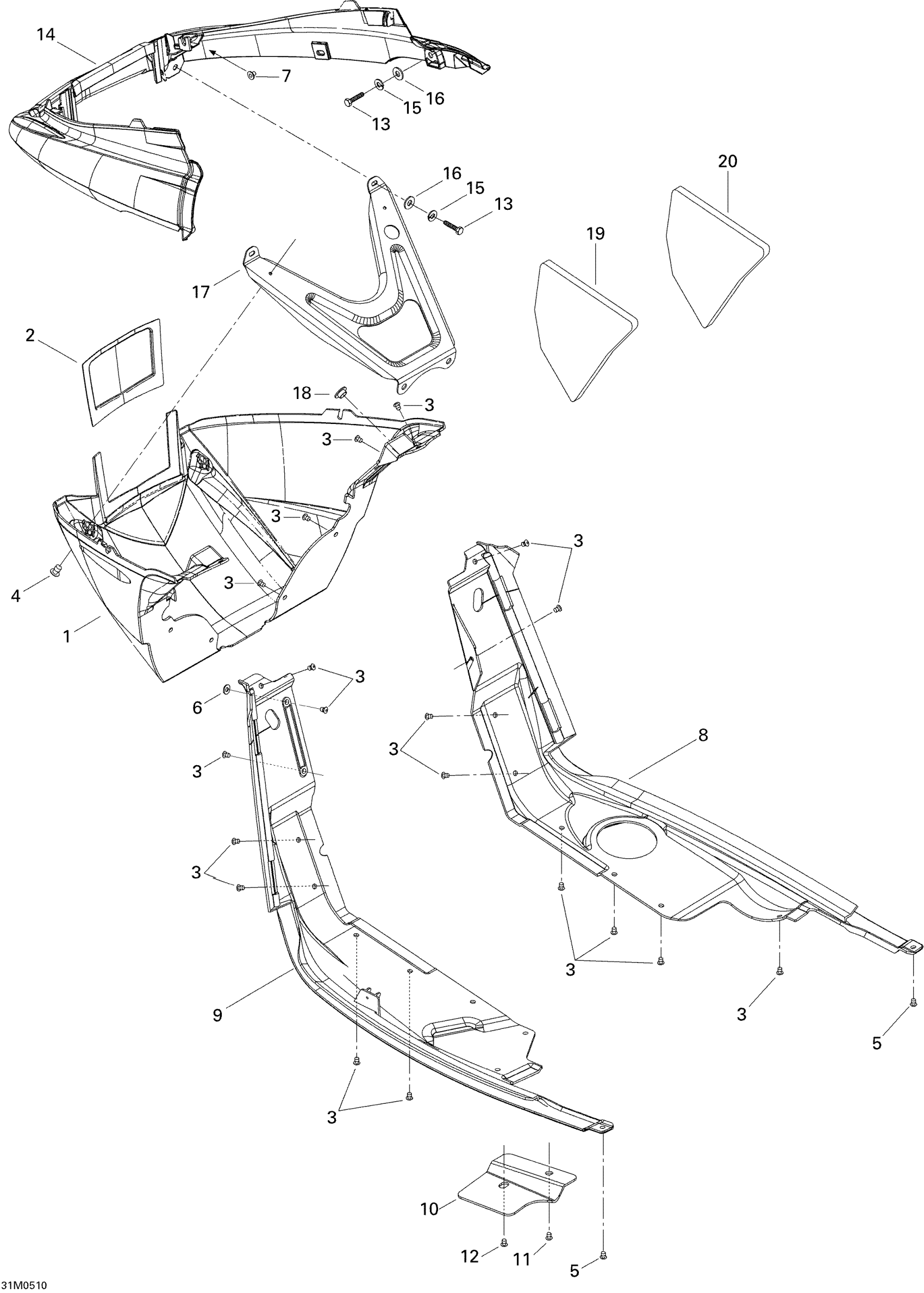

Ski-Doo MX Z X 440 Racing, 2005 Bottom Pan Diagram

FRONT BOTTOM PAN - Call your local BRP dealership

Pop Rivet 3/16"

Washer

Nut Welded, M6

Bracket

Avex Rivet

Pop Rivet 3/16”

LH FOAM - Call your local BRP dealership

RH FOAM - Call your local BRP dealership
