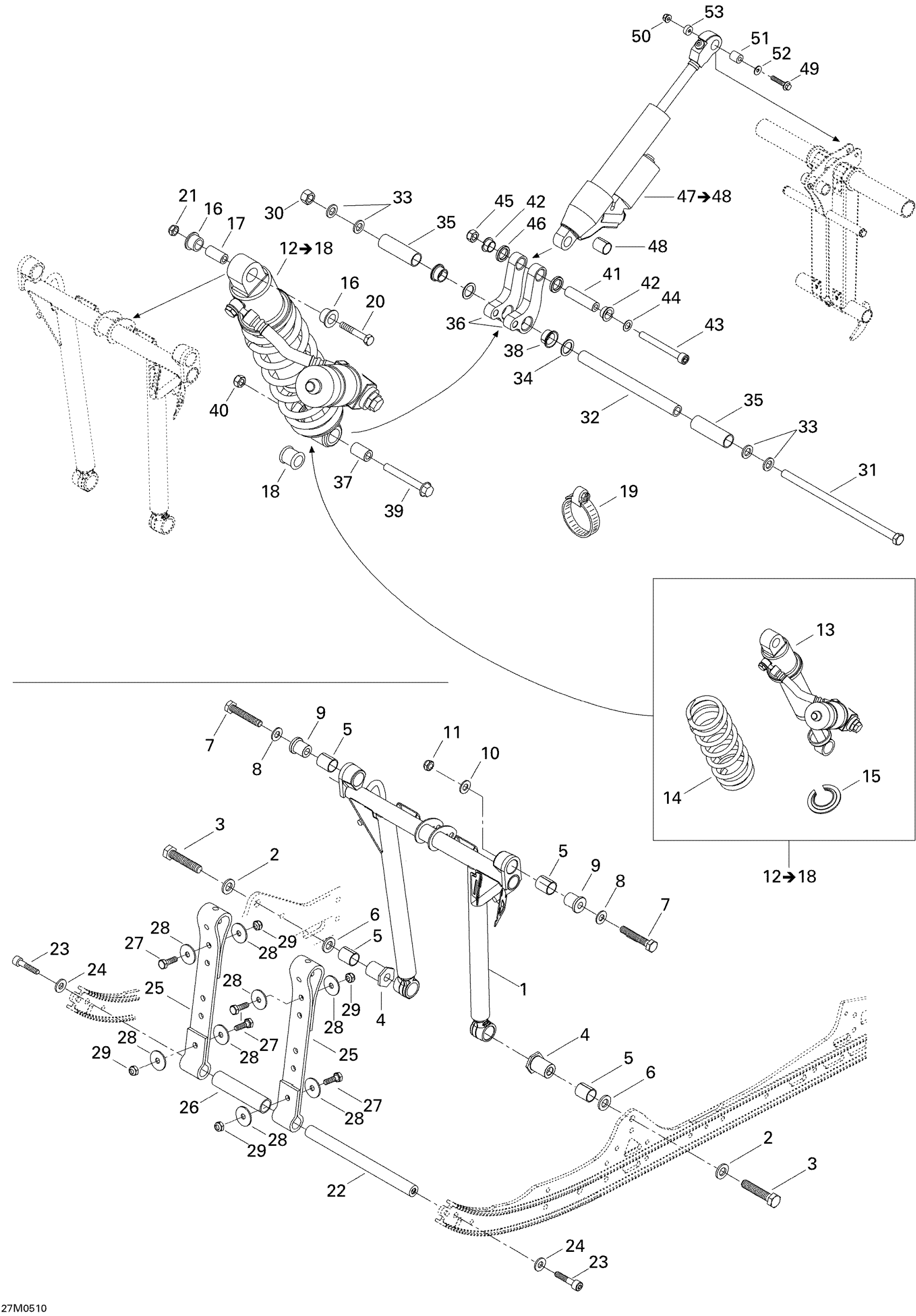

Ski-Doo MX Z X 440 Racing, 2005 Front Arm Diagram

#

Description
Price

1

Front Arm

503190640

Unavailable

2

Washer | 7415/7416. 7417/7418.

503189148

$2.72

3

Hex. Cap Screw M12 X 35

250000537

$2.63

4

Lower Axle

503191966

$15.35

5

Bushing

503190974

$9.35

6

Washer

503190656

$2.91

7

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

8

Washer

732900049

$0.57

9

Axle

503190698

$17.66

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Center Shock

503190582

Unavailable

14

Spring

503191019

Unavailable

15

Spring Stopper

503190271

$20.74

16

Urethane Bushing

503189117

$6.88

17

Bushing | Includes 240d to 240d1

503189282

$4.18

18

Bushing

503189271

$10.46

19

Tridon Clamp

293650023

$11.72

20

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

21

Elastic Stop Nut M10

232500416

$1.56

22

AXLE - Call your local BRP dealership

503189562

Unavailable

23

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

24

Washer

503189564

$0.72

25

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

26

Spacer

503189265

$4.75

27

Hex. Flange Screw M8 X 25

207682544

$0.90

28

Flat Washer

224081301

$0.86

29

Hex. Flange Elastic Nut M8

233281414

$1.14

30

Hex. Nut M12

232021416

$4.51

31

HEX. SCREW M12 X 252 - Call your local BRP dealership

250000229

Unavailable

32

PIVOT SHAFT - Call your local BRP dealership

503191047

Unavailable

33

Washer | 7415/7416. 7417/7418.

503189148

$2.72

34

WASHER - Call your local BRP dealership

503190697

Unavailable

35

SPACER - Call your local BRP dealership

503190600

Unavailable

36

ROCKER ARM - Call your local BRP dealership

503190601

Unavailable

37

Central Shock Axle

503190604

$11.17

38

CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership

503190605

Unavailable

39

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

40

Elastic Stop Nut M10

232500416

$1.56

41

Bar Axle

503191192

$40.74

42

Swivel Bushing

503191555

$5.71

43

Socket Screw M10 X 90

205009044

$7.23

44

Washer

503175800

$3.26

45

Elastic Stop Nut M10

232500416

$1.56

46

Plastic Spacer

503190694

$2.05

47

Rear Shock

503190581

Unavailable

48

BUSHING - Call your local BRP dealership

503190706

Unavailable

49

Hex. Screw M8 X 55

207085586

$6.11

50

Hex. Elastic Flange Nut M8

233281416

$1.25

51

Bushing

414936000

$11.55

52

Washer

503189157

$3.20

53

Spacer

503190526

$8.72
