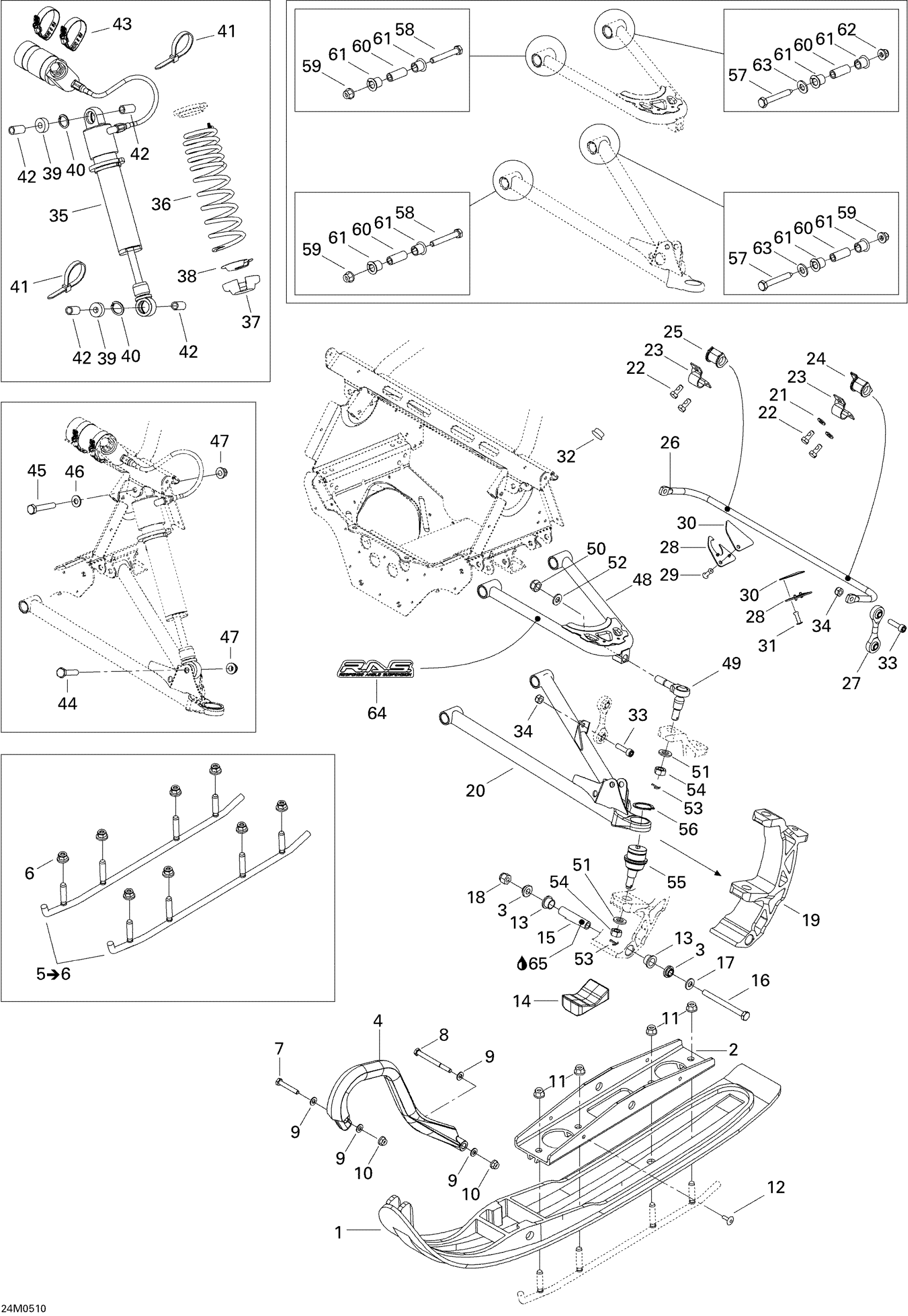

Ski-Doo MX Z X 440 Racing, 2005 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

Unavailable

2

BRIDGE - Call your local BRP dealership

505070000

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

HANDLE_SKI - Call your local BRP dealership

505071674

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.68

7

Hex. Screw M8 X 50

207085044

Unavailable

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Elastic Stop Nut M8

232581414

Unavailable

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

RIVET_POP 1/4 - Call your local BRP dealership

293150090

Unavailable

13

Leg Bushing

505072690

Unavailable

14

Ski Stopper

505070671

Unavailable

15

BUSHING - Call your local BRP dealership

505071271

Unavailable

16

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

17

Washer

732900049

Unavailable

18

Flange Nut M10

732610084

Unavailable

19

RH SKI LEG - Call your local BRP dealership

505071395

Unavailable

19

LH SKI LEG - Call your local BRP dealership

505071396

Unavailable

20

Arm-lower RH paint

860510600

Unavailable

20

Arm-lower LH

860510700

Unavailable

21

Flat Washer 8 mm

234081410

Unavailable

22

Hex. Screw With Nylon

250000118

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

25

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

26

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

27

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

28

PLUG - Call your local BRP dealership

505071253

Unavailable

29

Pop Rivet 3/16"

293150103

Unavailable

30

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

31

Pop Rivet 3/16"

293150103

Unavailable

32

CAP - Call your local BRP dealership

572072100

Unavailable

33

Socket Head Screw M8 X 30

205083044

Unavailable

34

Hex. Elastic Stop Nut M8

232581414

Unavailable

35

RH Front Shock

505070952

Unavailable

35

LH FRONT SHOCK - Call your local BRP dealership

505070953

Unavailable

36

SPRING - Call your local BRP dealership

505071677

Unavailable

37

Spring Stopper

505072635

$33.82

38

Cap

505071199

Unavailable

39

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

40

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

41

Tie-Rap 180 mm

414115200

$0.09

42

BUSHING - Call your local BRP dealership

506120200

Unavailable

43

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

44

Hex. Screw M10 X 55

207005544

$1.85

45

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

46

Washer

503189564

Unavailable

47

Hex. Flange Elastic Nut M10

233201414

$1.26

48

Arm-upper Paint RH

505071590

Unavailable

48

Arm-upper Paint LH

505071592

Unavailable

49

Ball Joint

505071680

Unavailable

50

Hex. Flange Elastic Nut M12

250000047

Unavailable

51

Flat Washer 12 mm

234021410

$0.68

52

Washer

503189276

Unavailable

53

Cotter Pin

211400017

Unavailable

54

Hex. Castellated Nut M12

232221414

Unavailable

55

Ball Joint

505071658

Unavailable

56

Circlip

293370035

$2.55

57

Hex. Screw M10 X 75

250001063

Unavailable

58

Hex. Screw M10 X 75

250001063

Unavailable

59

Hex. Flange Elastic Nut M10

250100165

Unavailable

60

Aluminium Bushing

505070960

Unavailable

61

Arm Bushing

505071397

Unavailable

62

Elastic Flange Nut M10

232501416

Unavailable

63

Washer

503189564

Unavailable

64

R.a.s. Suspension Decal

516002747

Unavailable

65

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
