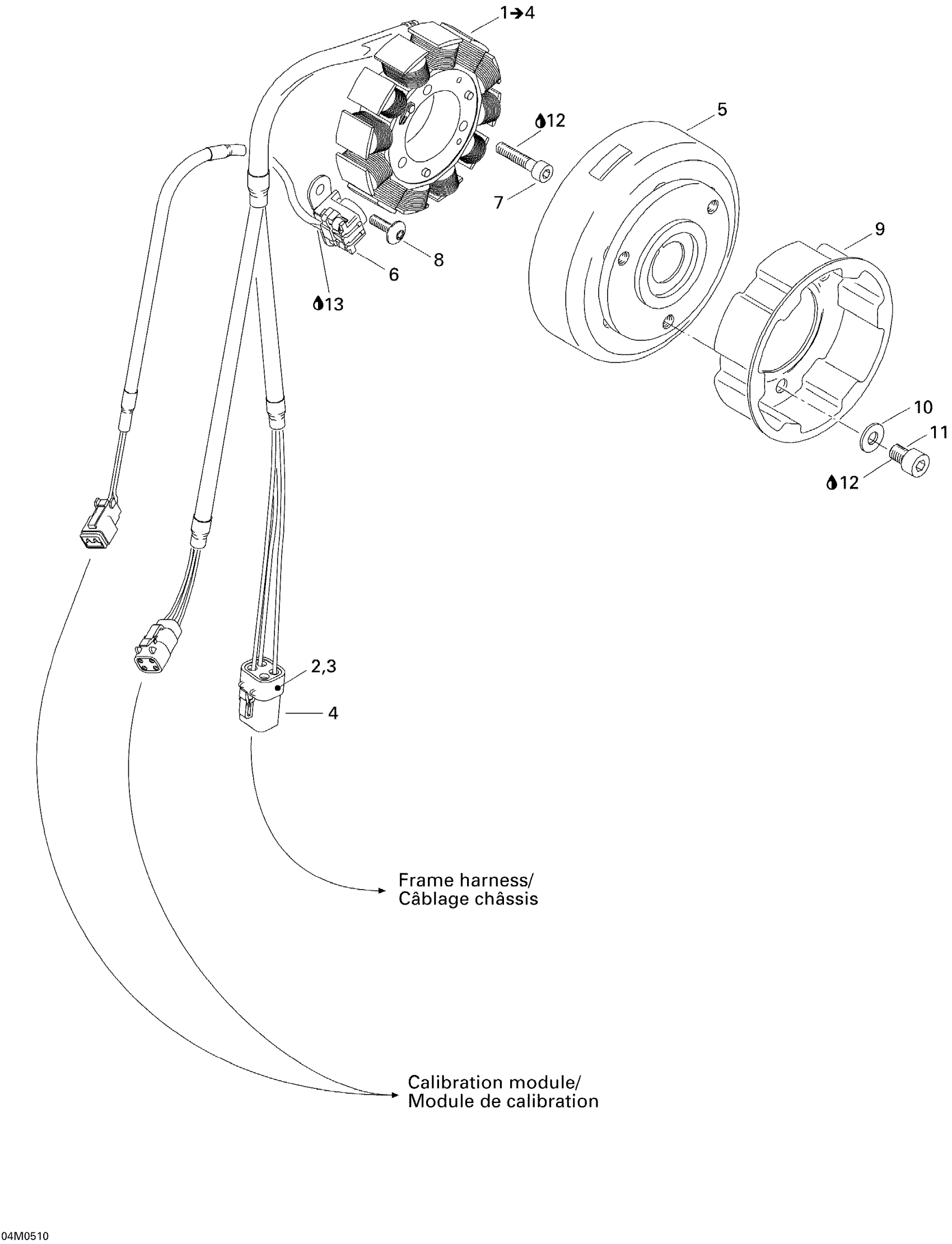

Ski-Doo MX Z X 440 Racing, 2005 Magneto Diagram

#

Description
Price

1

Plate-Stator Assy | Includes 1 to 4

410922967

Unavailable

2

Female Terminal

515175567

$6.03

3

Female Lock, 4 Circuits

278001474

Unavailable

4

Female Terminal Housing, 4 Circuits

278001473

Unavailable

5

Flywheel

410922968

Unavailable

6

Pick-Up Ass'y

410922969

$103.05

7

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

8

Torx Screw M6 X 16

420640324

$2.06

9

Starting Pulley

420852590

$28.43

10

Flat Washer

420827405

$1.66

11

Socket Head Screw M8 X 12

420841520

$1.68

12

Loctite 243, 10 ml

293800060

$20.77

13

Not Available As Spare Part - Friction Washer

Unavailable
