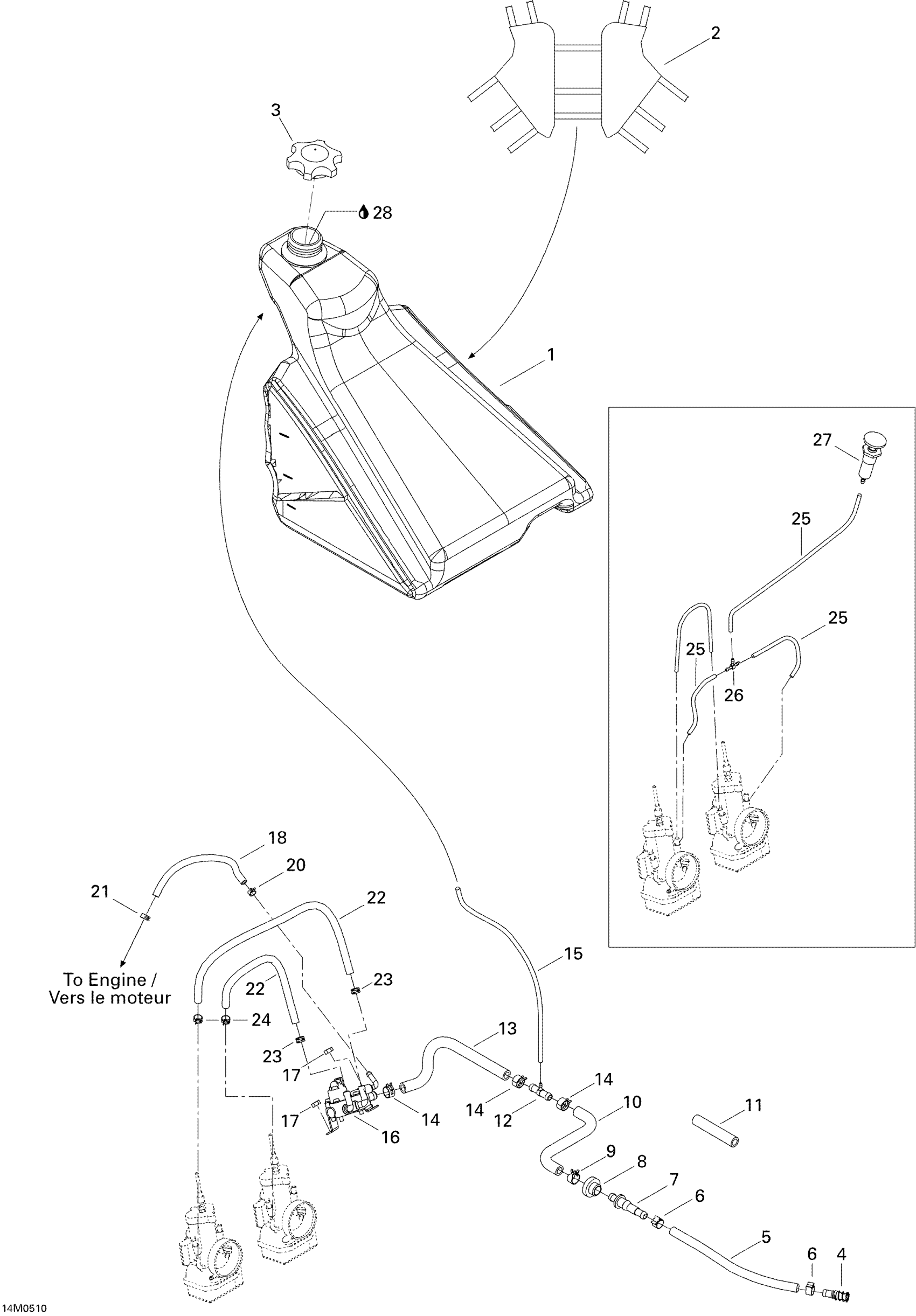

Ski-Doo MX Z X 440 Racing, 2005 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033099

Unavailable

2

TANK COVER, BLACK - Call your local BRP dealership

513033075

Unavailable

3

Fuel Tank Cap

513033752

$56.12

4

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

5

POLYURETHANE HOSE 7.6MM - Call your local BRP dealership

415097800

Unavailable

6

Norma Spring Clamp

513033010

$8.68

7

Male Connector

414872700

$1.86

8

Grommet | Europe

707800347

$7.58

9

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

10

Formed Hose

513033072

Unavailable

11

Tubing 16 Mm 1000Mm Long

219704408

$6.23

12

T-Fitting

415119300

$3.11

13

FORMED HOSE - Call your local BRP dealership

513033031

Unavailable

14

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

15

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

16

FUEL PUMP - Call your local BRP dealership

403901810

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

HOSE - Call your local BRP dealership

513033035

Unavailable

19

Panel Fastener

518321954

$6.03

20

Spring Clamp

414415200

$0.83

21

Universal Spring Clamp

513033029

$5.11

22

Polyurethane Hose 10000Mm Long

219704410

$46.12

23

Spring Clamp

414554800

$0.83

24

Spring Clamp

414420700

$0.68

25

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

26

T-Fitting

414222400

$1.33

27

Primer

415060500

$33.05

28

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

28

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

28

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable
