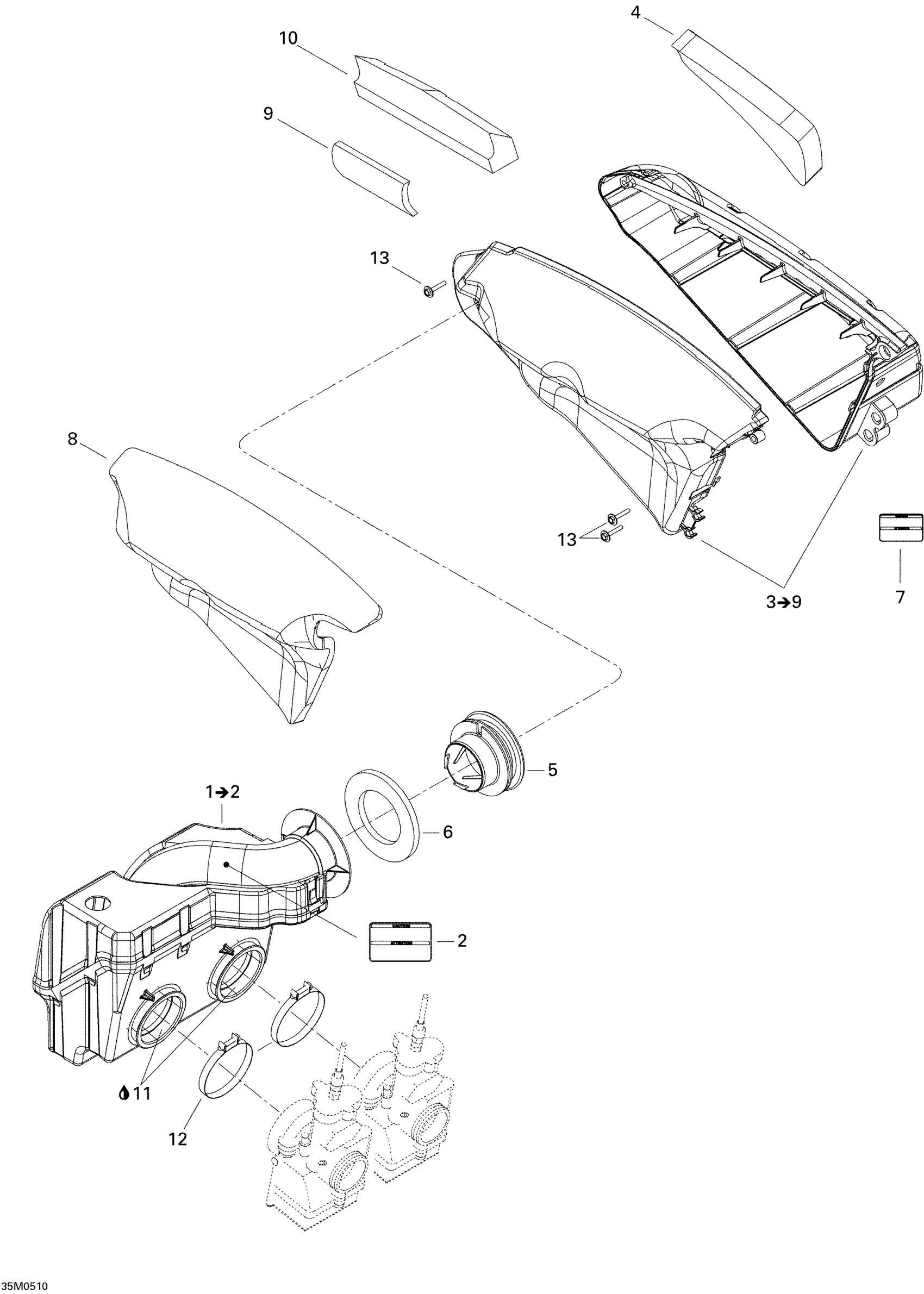

Ski-Doo MX Z X 440 Racing, 2005 Air Silencer Diagram

#

Description
Price

1

Primary Chamber Ass'y

508000384

Unavailable

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

Secondary Chamber Ass'y

508000429

Unavailable

4

Inner Foam

508000145

Unavailable

5

GUIDE - Call your local BRP dealership

508000240

Unavailable

6

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

OUTER FOAM - Call your local BRP dealership

508000310

Unavailable

9

FOAM - Call your local BRP dealership

508000326

Unavailable

10

Air Filter

508000394

$48.48

11

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

12

Gemi Clamp

508000369

$11.18

13

Plastite Screw Type K-40, M4 X 25

250000101

$3.30
