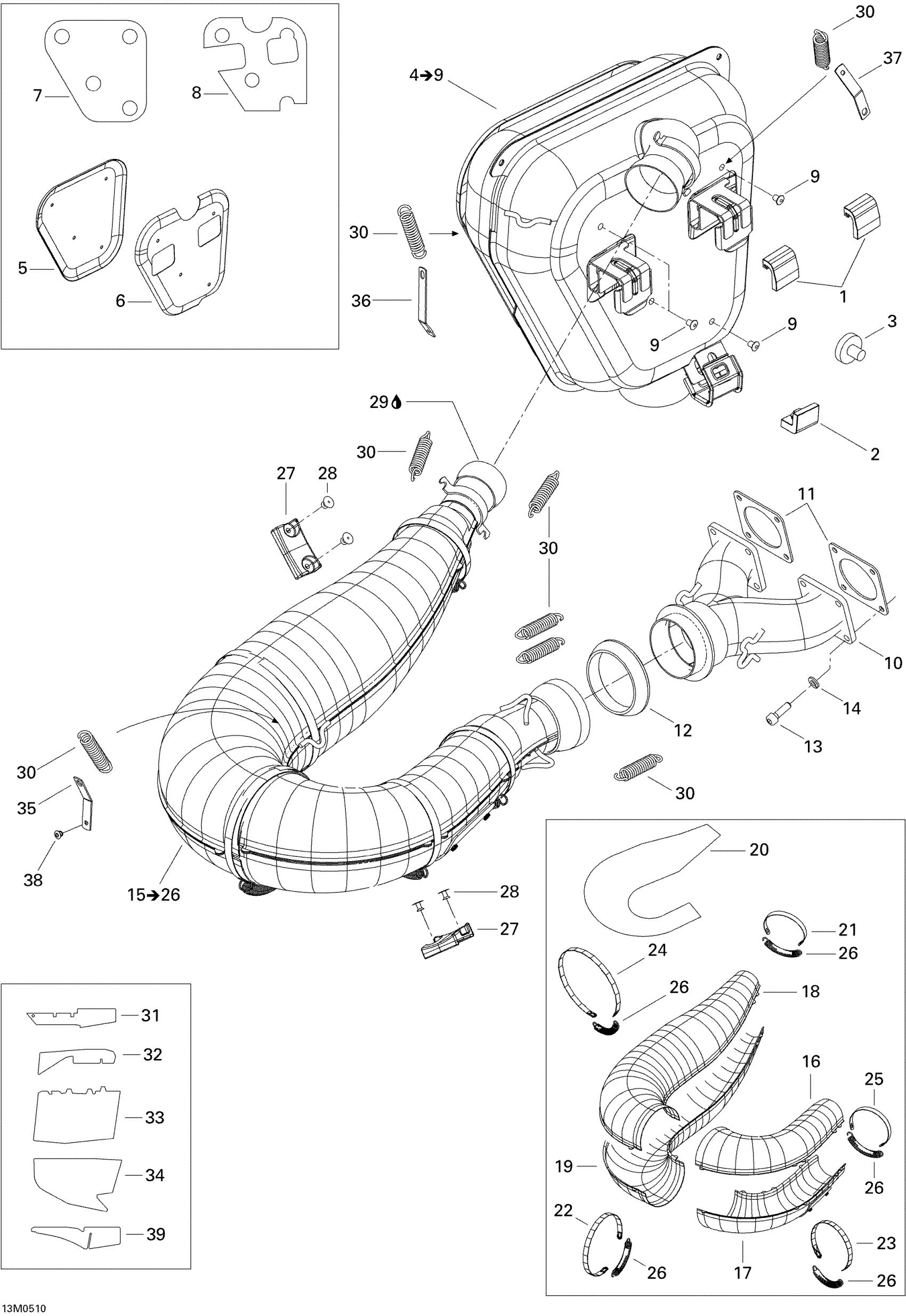

Ski-Doo MX Z X 440 Racing, 2005 Exhaust System Diagram

#

Description
Price

1

UPPER STOPPER - Call your local BRP dealership

514053372

$13.95

2

Lower Stopper

514053373

Unavailable

3

Exhaust Grommet

514053394

Unavailable

4

Muffler Assy

514053868

Unavailable

5

RH HEAT SHIELD - Call your local BRP dealership

514053139

$23.05

6

LH Heat Shield

514053883

Unavailable

7

RH INSULATING WOOL - Call your local BRP dealership

514053141

$9.97

8

LH INSULATING WOOL - Call your local BRP dealership

514053884

Unavailable

9

Pop Rivet 3/16”

390910000

$0.48

10

MANIFOLD - Call your local BRP dealership

420973557

$163.05

11

Gasket

420850552

$7.92

12

Exhaust Gasket

514053487

Unavailable

13

Socket Head Screw Scotch Grip M6 X 20

250001077

Unavailable

14

Washer

514053953

$0.75

15

440X Calibrated Tube Ass'y

514053873

Unavailable

16

Upper Front Half-Enveloppe

514053151

Unavailable

17

Lower Inferior Half-Enveloppe Ass'y

514053152

Unavailable

18

Upper Rear Half-Enveloppe

514053475

Unavailable

19

Lower Rear Half-Enveloppe Ass'y

514053476

Unavailable

20

Insulating Wool

514053558

Unavailable

21

RETAINING STRAP - Call your local BRP dealership

514053437

$7.66

22

RETAINING STRAP - Call your local BRP dealership

514053534

$9.20

23

Retaining Strap

514053499

$8.35

24

RETAINING STRAP - Call your local BRP dealership

514053605

$7.74

25

RETAINING STRAP - Call your local BRP dealership

514053494

$4.58

26

Spring

514053643

$6.20

27

BUMPER - Call your local BRP dealership

514053352

$14.58

28

Pop Rivet 3/16"

293150103

Unavailable

29

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

30

Spring

415107100

$6.20

31

REFLECTION SHEET - Call your local BRP dealership

514053702

$9.97

32

Reflective Sheet

514053622

Unavailable

33

REFLECTIVE SHEET - Call your local BRP dealership

514053954

$12.28

34

REFLECTIVE SHEET - Call your local BRP dealership

514053562

$9.20

35

SPRING BRACKET - Call your local BRP dealership

514053955

$6.89

36

Spring Bracket

514053393

$11.58

37

Spring Bracket

514053436

$8.35

38

Avex Rivet

390909200

Unavailable

39

REFLECTIVE SHEET - Call your local BRP dealership

514053673

$7.66
