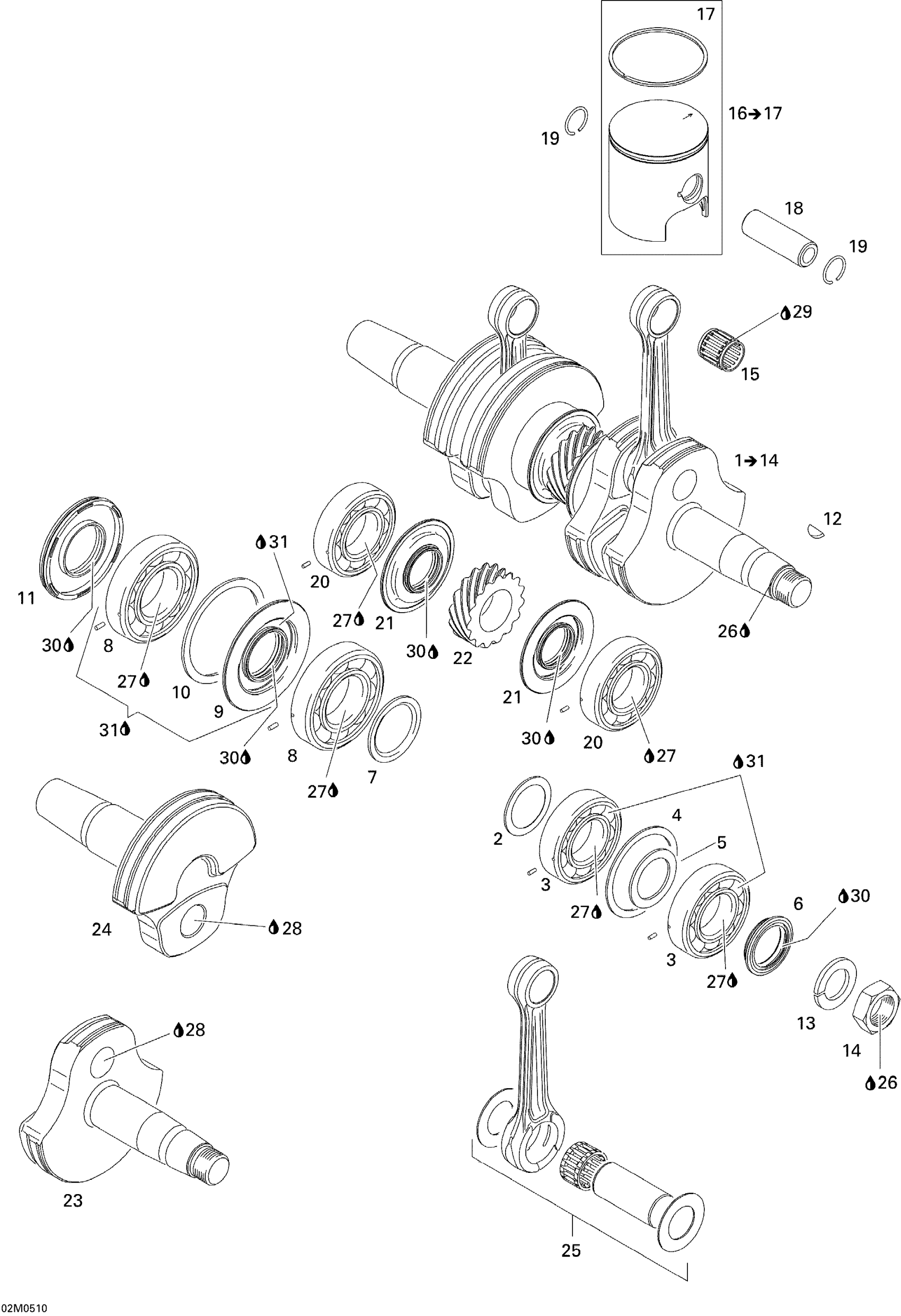

Ski-Doo MX Z X 440 Racing, 2005 Crankshaft And Pistons Diagram
#
Description
Price
1
CRANKSHAFT - Call your local BRP dealership | Includes 1 to 12
420888257
Unavailable
2
DISTANCE RING - Call your local BRP dealership
420827445
Unavailable
4
RETAINING DISK - Call your local BRP dealership
420827050
Unavailable
5
ADJUSTMENT WASHER - Call your local BRP dealership
420427684
Unavailable
7
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
8
Ball Bearing 6207 | With drive pin
420832575
Unavailable
9
Oil Seal
420931455
Unavailable
10
Retaining Disk
420927710
Unavailable
11
Oil Seal This part replaces 290831952.
420831952
Unavailable
12
Woodruff Key
420246015
Unavailable
13
Lock Washer, 22 mm
420945759
Unavailable
14
Hex. Nut, M22 X 1.5
420842239
Unavailable
15
Needle Bearing
420832439
Unavailable
16
PISTON 64.88 MM ASS'Y - Call your local BRP dealership | Includes 16 to 17
420888333
Unavailable
17
SEMI-TRAPEZ RING - Call your local BRP dealership
420815145
Unavailable
18
PISTON PIN - Call your local BRP dealership
420916136
Unavailable
19
Piston Circlip
420945735
Unavailable
23
CRANKSHAFT, MAG - Call your local BRP dealership
420818694
Unavailable
24
CRANKSHAFT, PTO SIDE - Call your local BRP dealership This part replaces 420818664.
420818665
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
27
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
28
Sealant Loctite 648
219703000
Unavailable
29
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
30
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
31
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
