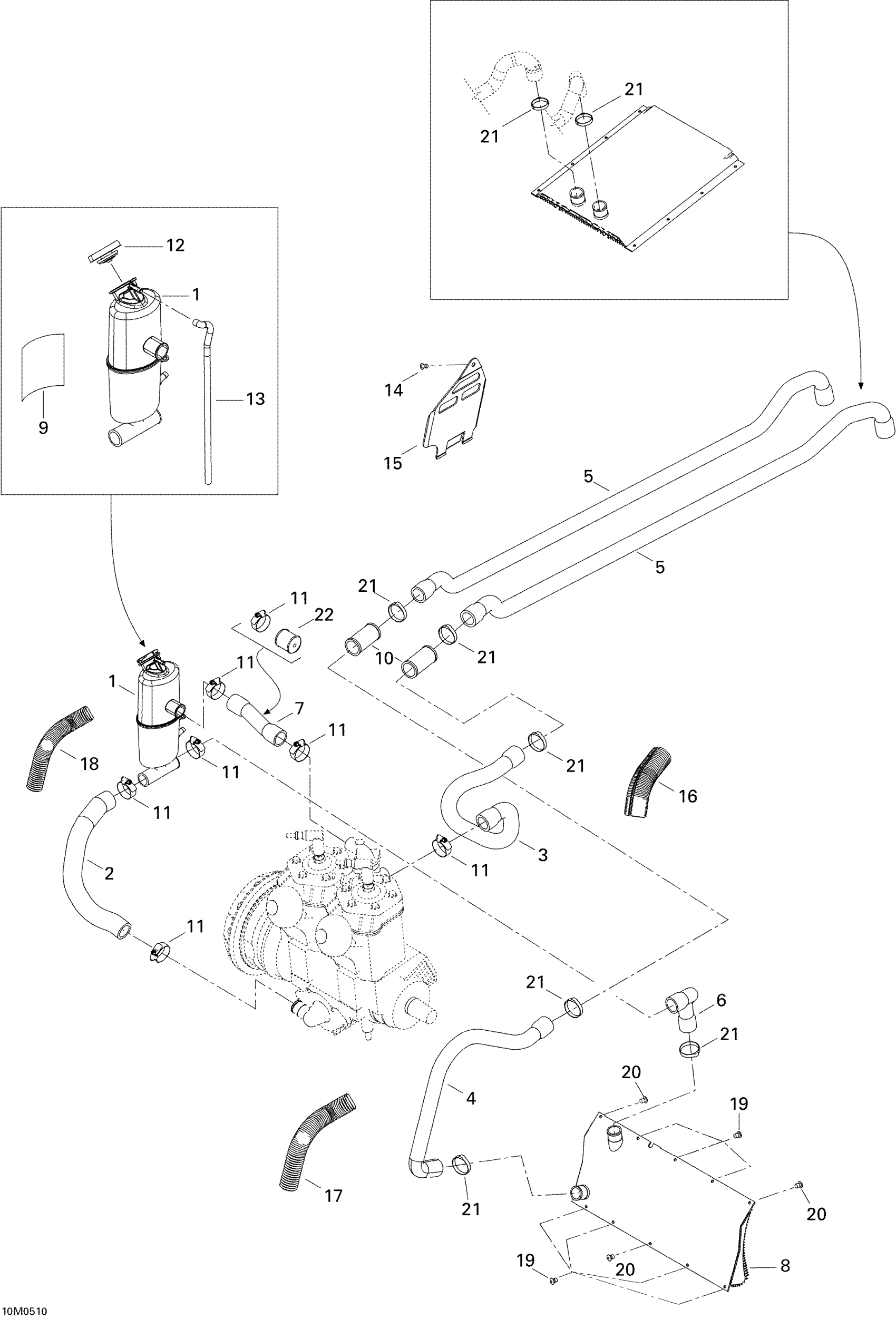

Ski-Doo MX Z X 440 Racing, 2005 Cooling System Diagram
#
Description
Price
1
COOLANT TANK - Call your local BRP dealership
509000325
Unavailable
2
ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000135
Unavailable
3
FRONT ENGINE HOSE OUTLET - Call your local BRP dealership
509000220
Unavailable
4
FRONT RADIATOR HOSE INLET - Call your local BRP dealership
509000222
Unavailable
5
REAR RADIATOR HOSE INLET - Call your local BRP dealership
509000223
Unavailable
6
RADIATOR OUTLET HOSE - Call your local BRP dealership
509000266
Unavailable
7
Hose
509000196
Unavailable
8
Front Radiator
509000319
Unavailable
9
REFECTIVE SHEET - Call your local BRP dealership
509000190
Unavailable
10
Fitting
509000224
Unavailable
11
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
12
Pressure Cap
509000187
Unavailable
13
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
14
Avex Rivet
390909200
Unavailable
15
DEFLECTOR - Call your local BRP dealership
509000257
Unavailable
16
Tubing 25 MM 1000MM Long
219704402
Unavailable
17
Tubing 25 MM 1000MM Long
219704402
Unavailable
18
Tubing 35 MM 1000MM Long
219704428
Unavailable
21
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
22
CHOKE - Call your local BRP dealership
509000197
Unavailable
