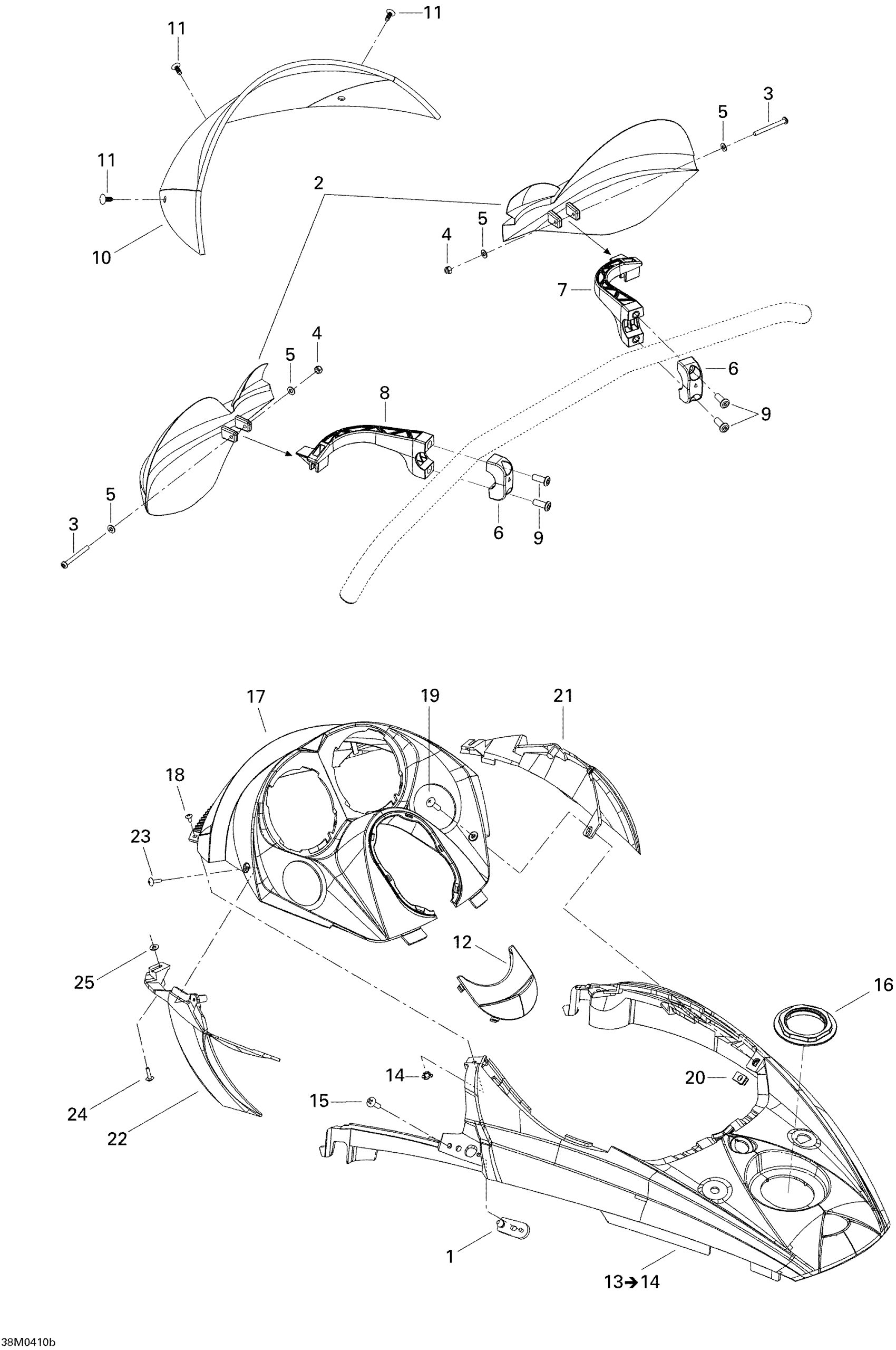

Ski-Doo MX Z X 440 Racing, 2004 Windshield And Console Diagram
#
Description
Price
1
HOOD LATCH - Call your local BRP dealership
517302616
Unavailable
2
Air Deflector Kit, Yellow
415128768
Unavailable
4
Elastic Stop Nut M4
232541484
Unavailable
5
Flat Washer 4 mm
234041480
Unavailable
6
U-Clamp | XT
517303264
Unavailable
7
RH DEFLECTOR SUPPORT - Call your local BRP dealership
517303590
Unavailable
8
LH DEFLECTOR SUPPORT - Call your local BRP dealership
517303591
Unavailable
9
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership
250000172
Unavailable
10
Windshield
517303160
Unavailable
11
Tuflok Plastic Rivet
293150230
Unavailable
12
CONSOLE CAP - Call your local BRP dealership
517302592
Unavailable
13
Deep Black, Center Console | Includes 13 to 14
517302809
Unavailable
14
T-NUT, M4 - Call your local BRP dealership
250100030
Unavailable
15
Torx Screw M6 X 20
250000722
Unavailable
16
CONSOLE NUT - Call your local BRP dealership
517302575
Unavailable
17
Indicator Support | X & Renegade X
517303055
Unavailable
19
Torx Screw M5 X 20
250000724
Unavailable
20
Panel Nut M5 X 0.8
250000958
Unavailable
21
RH Air Deflector
517302798
Unavailable
22
LH AIR DEFLECTOR - Call your local BRP dealership
517302799
Unavailable
23
Phillips Screw K40 X 16
250000723
Unavailable
24
Screw M4 X 16
250000725
Unavailable
25
Flat Washer 4 mm, Stainless
234042600
Unavailable
