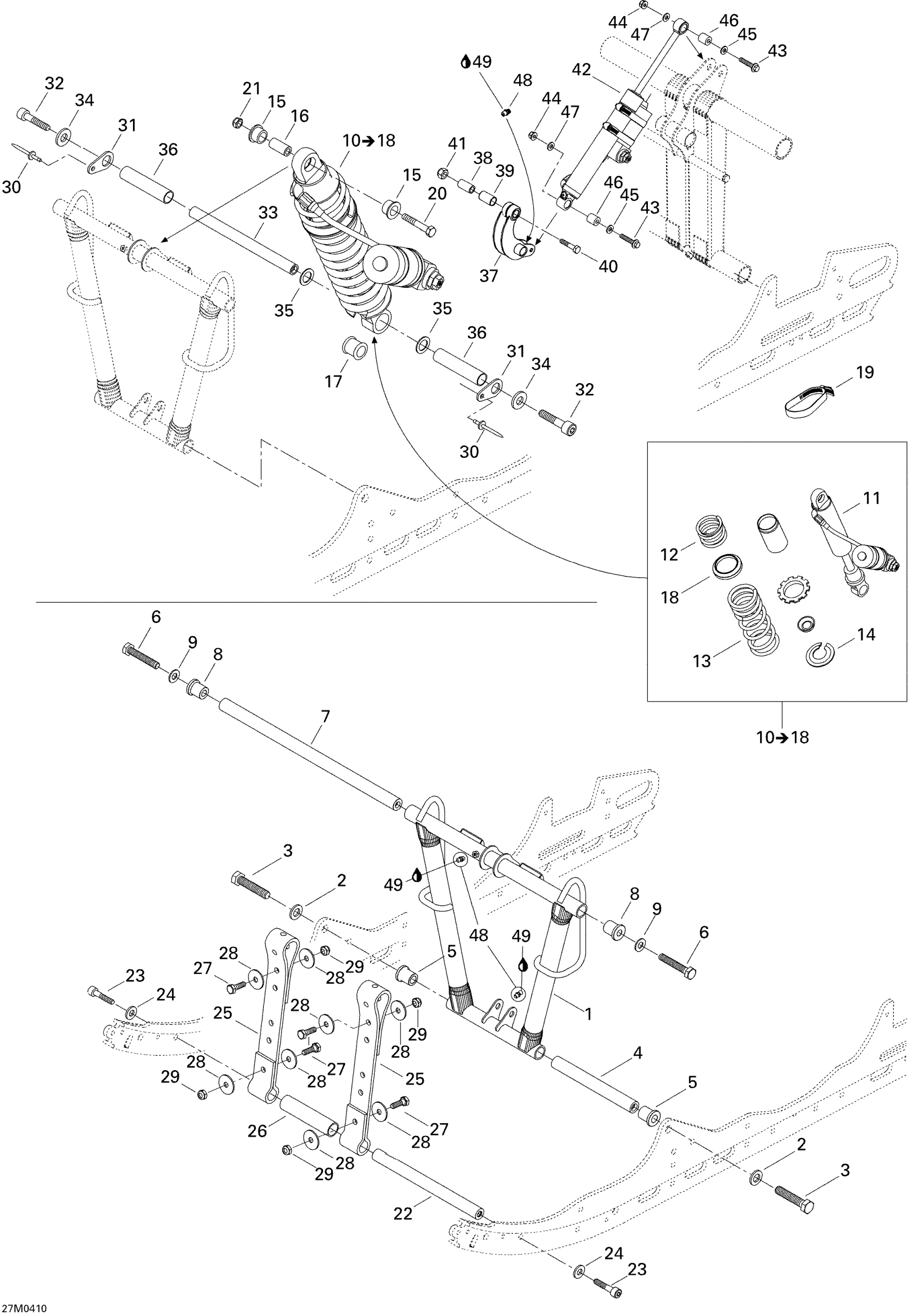

Ski-Doo MX Z X 440 Racing, 2004 Front Arm Diagram

#

Description
Price

1

Front Arm

503190285

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

Unavailable

7

SHAFT - Call your local BRP dealership

503190387

Unavailable

8

Bushing

503189324

$11.17

9

Washer

732900049

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Center Shock

503189972

Unavailable

12

Spring

503190296

Unavailable

13

Spring

503190299

Unavailable

14

Spring Stopper

503190271

Unavailable

15

Urethane Bushing

503189117

Unavailable

16

Bushing | Includes 240d to 240d1

503189282

Unavailable

17

Bushing

503189271

Unavailable

18

Spring Spacer

503190297

Unavailable

19

Tridon Clamp

293650023

Unavailable

20

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

21

Elastic Locking Nut M10 X 1.5

233601416

$1.68

22

AXLE - Call your local BRP dealership

503189562

Unavailable

23

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

24

Washer

503189564

Unavailable

25

Stopper Strap, Large

503190563

Unavailable

26

Spacer

503189265

$4.66

27

Hex. Screw M8 X 25

207182544

Unavailable

28

Flat Washer

224081301

$0.86

29

Hex. Elastic Stop Nut M8

232581414

Unavailable

30

Pop Rivet 3/16"

390402300

Unavailable

31

Plate

503189506

Unavailable

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

33

Center Shock Shaft

503190237

Unavailable

34

Washer

503189276

Unavailable

35

Washer

503189273

Unavailable

36

SPACER - Call your local BRP dealership

503189274

Unavailable

37

Rocker

503190766

Unavailable

38

Rocker Axle

503189388

Unavailable

39

CUSHION - Call your local BRP dealership

503189626

Unavailable

40

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

41

Elastic Locking Nut M10 X 1.5

233601416

$1.68

42

Rear Shock

503189974

Unavailable

43

Hex. Screw M8 X 55

207085586

$6.11

44

Hex. Elastic Flange Nut M8

233281416

Unavailable

45

Washer

503189157

$3.20

46

Bushing

414936000

Unavailable

47

Spacer

503190526

$8.72

48

Grease Fitting

408200700

Unavailable

49

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
