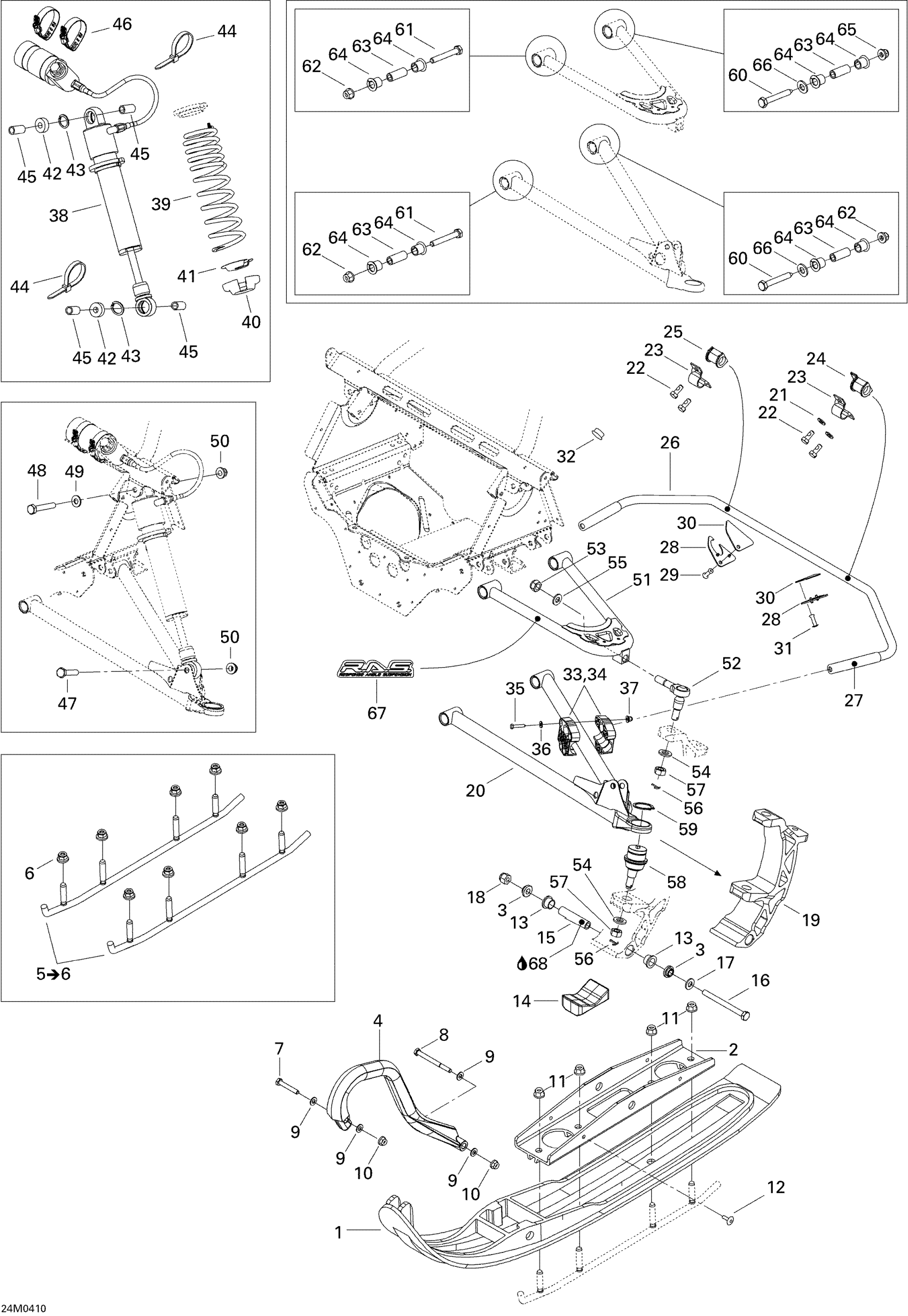

Ski-Doo MX Z X 440 Racing, 2004 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

$129.99

2

BRIDGE - Call your local BRP dealership

505070000

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

HANDLE, YELLOW - Call your local BRP dealership

505071394

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Elastic Locking Nut M10 X 1.5

233601416

$1.68

7

Hex. Screw M8 X 50

207085044

$1.25

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

$0.69

10

Hex. Elastic Stop Nut M8

232581414

$0.47

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Pop Rivet 1/4

293150116

Unavailable

13

Leg Bushing

505072690

$5.92

14

Ski Stopper

505070671

Unavailable

15

BUSHING - Call your local BRP dealership

505071271

Unavailable

16

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

17

Washer

732900049

$0.57

18

Flange Nut M10

732610084

$5.49

19

RH SKI LEG - Call your local BRP dealership

505071395

Unavailable

LH SKI LEG - Call your local BRP dealership

505071396

Unavailable

20

RH Lower Arm Ass'Y | Includes 20, 58 and 59

860509300

Unavailable

RH Lower Arm

505071337

Unavailable

20

LH Lower Arm Ass'Y | Includes 20, 58 and 59

860509200

Unavailable

LH Lower Arm

505071338

Unavailable

21

Flat Washer 8 mm

234081410

$0.69

22

Hex. Screw With Nylon

250000118

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

25

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

26

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

27

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

28

PLUG - Call your local BRP dealership

505071253

Unavailable

29

Pop Rivet 3/16"

293150103

$0.54

30

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

31

Pop Rivet 3/16"

293150103

$0.54

32

CAP - Call your local BRP dealership

572072100

Unavailable

33

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

34

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

35

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

36

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

37

Hex. Flange Elastic Nut M5

233251414

$1.66

38

RH Front Shock

505070952

Unavailable

LH FRONT SHOCK - Call your local BRP dealership

505070953

Unavailable

39

Spring

505071200

Unavailable

40

Spring Stopper

505072635

$33.82

41

Cap

505071199

Unavailable

42

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

43

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

44

Tie-Rap 180 mm

414115200

$0.09

45

BUSHING - Call your local BRP dealership

506120200

Unavailable

46

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

47

Hex. Screw M10 X 55

207005544

$1.85

48

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

49

Washer

732900049

$0.57

50

Hex. Flange Elastic Nut M10

233201414

$1.26

51

RH Upper Arm

505071501

Unavailable

LH Upper Arm

505071504

Unavailable

52

Superior Ball-Joint

505071484

Unavailable

53

Hex. Flange Elastic Nut M12

250000047

$1.56

54

Flat Washer 12 mm

234021410

$0.68

55

Washer

503189276

$3.20

56

Cotter Pin

211400017

$0.25

57

Hex. Castellated Nut M12

232221414

$2.61

58

Ball Joint

505073636

$49.97

59

Circlip

293370035

$2.55

60

Cone Screw M10 X 75

250000114

Unavailable

61

Hex. Screw M10 X 70

207007044

$1.90

62

Hex. Flange Elastic Nut M10

233201414

$1.26

63

Aluminium Bushing

505070960

$11.17

64

Arm Bushing

505071397

Unavailable

65

Elastic Locking Nut M10 X 1.5

233601416

$1.68

66

Washer

503189564

$0.72

67

R.A.S. Suspension Decal

516001704

Unavailable

68

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
