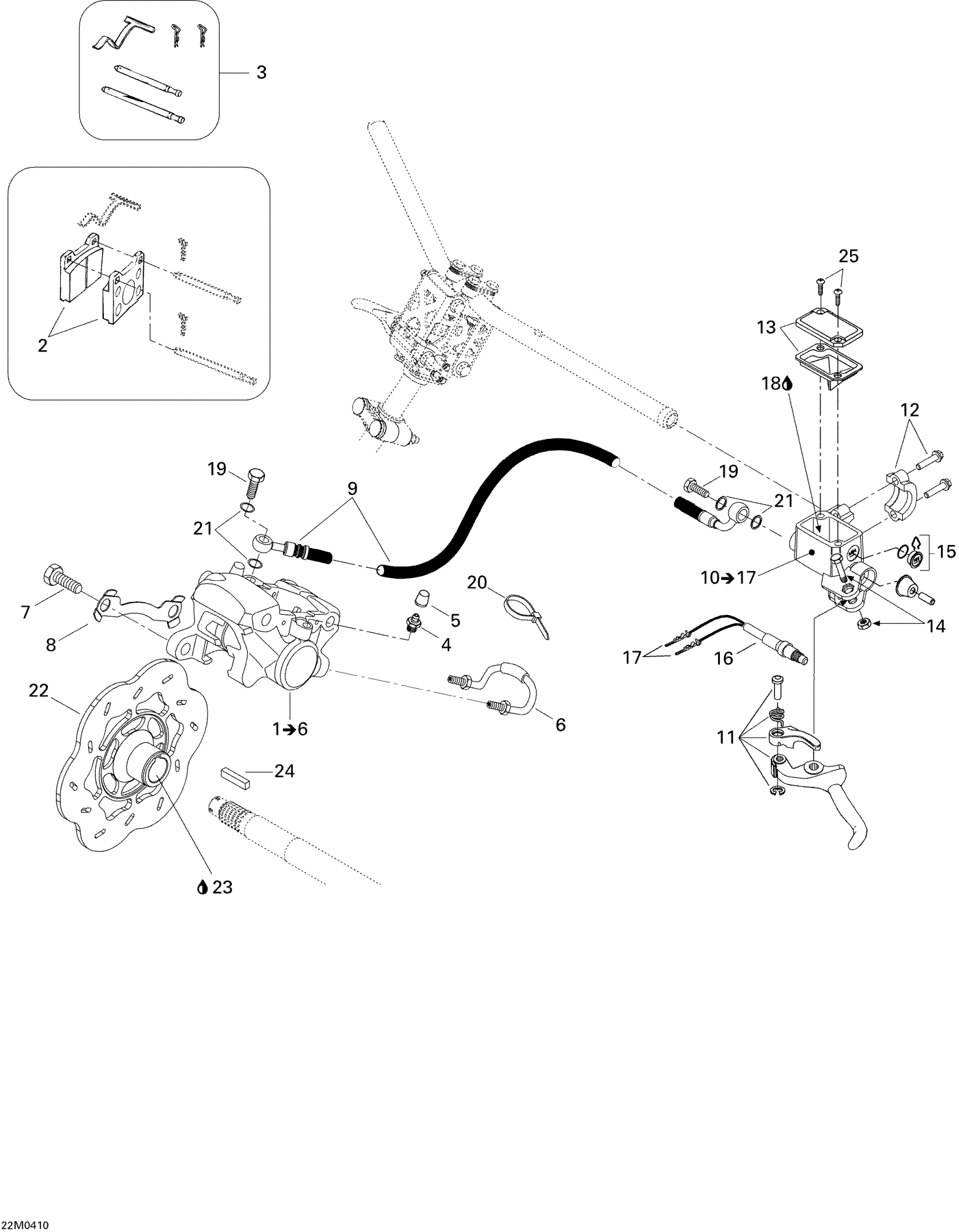

Ski-Doo MX Z X 440 Racing, 2004 Hydraulic Brake Diagram
#
Description
Price
1
Caliper | Includes 1 to 6
507032353
Unavailable
2
Brake Pad Kit
415084600
Unavailable
3
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership
414990700
Unavailable
4
BLEEDER SCREW - Call your local BRP dealership
414989800
Unavailable
5
BOOT-QTS 20 - Call your local BRP dealership
414989700
Unavailable
6
RIGID TUBING - Call your local BRP dealership
414989900
Unavailable
7
Hex. Screw M10 X 35
207103544
Unavailable
8
LOCKING TAB - Call your local BRP dealership
507032316
Unavailable
9
HOSE - Call your local BRP dealership
507032385
Unavailable
10
Master Cylinder | Includes 10 to 16
507032362
Unavailable
11
BRAKE SHORT LEVER ASSY - Call your local BRP dealership
507032268
Unavailable
13
Cap
415029900
Unavailable
14
Pin Ass'y
415030000
Unavailable
15
WINDOW - Call your local BRP dealership
414990600
Unavailable
16
Microswitch
507032366
Unavailable
18
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
18
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
20
Tie Wrap 142 mm
293750002
Unavailable
21
Washer
414920600
Unavailable
22
BRAKE DISK - Call your local BRP dealership
507032395
Unavailable
23
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
24
KEY - Call your local BRP dealership
507021300
Unavailable
25
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
