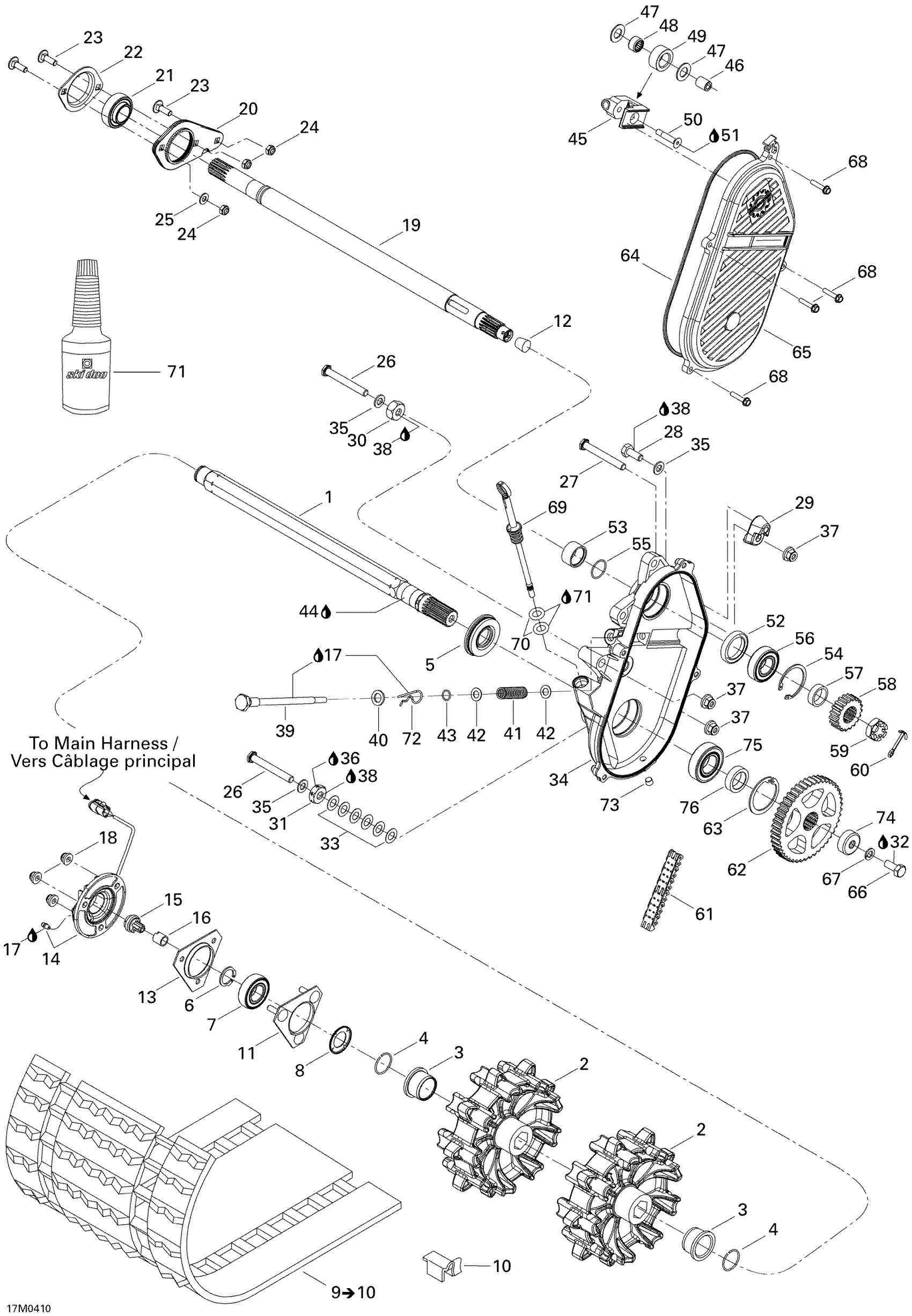

Ski-Doo MX Z X 440 Racing, 2004 Drive System Diagram
#
1
Drive Axle
504152359
Unavailable
2
Double Sprocket, 9 Teeth
504152356
Unavailable
3
Retainer Ring
504152382
Unavailable
4
CIRCLIP - Call your local BRP dealership
504152194
Unavailable
5
Oil Seal Ass'y
504151918
Unavailable
6
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
7
Ball Bearing
293350060
Unavailable
8
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
Chenille | Includes 9 to 10
504152361
Unavailable
11
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
13
FLANGE - Call your local BRP dealership
501025000
Unavailable
14
Rotation Sensor
504152345
Unavailable
15
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
16
Adaptor
572097500
Unavailable
17
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
18
Hex. Flange Elastic Nut M8
233281414
Unavailable
19
COUNTER SHAFT - Call your local BRP dealership
504152020
Unavailable
20
SPACER - Call your local BRP dealership
504151968
Unavailable
21
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
22
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
24
Hex. Elastic Stop Nut M8
232581414
Unavailable
25
Flat Washer 8 mm
234081410
Unavailable
26
Hex. Screw M10 X 75
207107544
Unavailable
27
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
28
Hex. Screw M10 X 25
207102544
Unavailable
29
Spacer
504152252
Unavailable
30
Spacer
504083800
Unavailable
31
SPACER - Call your local BRP dealership
504152237
Unavailable
32
Loctite 271, 10 ml
293800005
Unavailable
33
WASHER - Call your local BRP dealership
504073700
Unavailable
34
Chaincase
504152407
Unavailable
36
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
39
Adjustment Screw
504151946
Unavailable
40
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
41
SPRING - Call your local BRP dealership
504151945
Unavailable
43
O-RING - Call your local BRP dealership
504151954
Unavailable
44
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
45
Chain Tensionner
504152083
Unavailable
46
SPACER - Call your local BRP dealership
504080200
Unavailable
47
WASHER - Call your local BRP dealership
504080300
Unavailable
49
ROLLER - Call your local BRP dealership
414531300
Unavailable
50
SCREW - Call your local BRP dealership
732601144
Unavailable
51
Loctite 271, 10 ml
293800005
Unavailable
52
Oil Seal
293200158
Unavailable
53
SPACER - Call your local BRP dealership
507031500
Unavailable
54
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
55
O-RING - Call your local BRP dealership
414876700
Unavailable
56
Ball Bearing
293350115
Unavailable
57
Shim
504093400
Unavailable
58
Sprocket 21 Teeth
504152044
Unavailable
59
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
60
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
61
Drive Chain Large, 74 Links | 800R
504151932
Unavailable
62
Sprocket 45 Teeth
504152379
Unavailable
63
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
65
CHAINCASE COVER - Call your local BRP dealership
504152471
Unavailable
66
Hex. Screw M10 X 25
207102544
Unavailable
67
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
69
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
70
O-RING - Call your local BRP dealership
414969400
Unavailable
71
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
72
Hair Pin
414575600
Unavailable
73
Plug 1/8”-27
504151921
Unavailable
74
CAP - Call your local BRP dealership
504152104
Unavailable
75
BALL BEARING - Call your local BRP dealership
504152411
Unavailable
76
Shim
504152058
Unavailable
