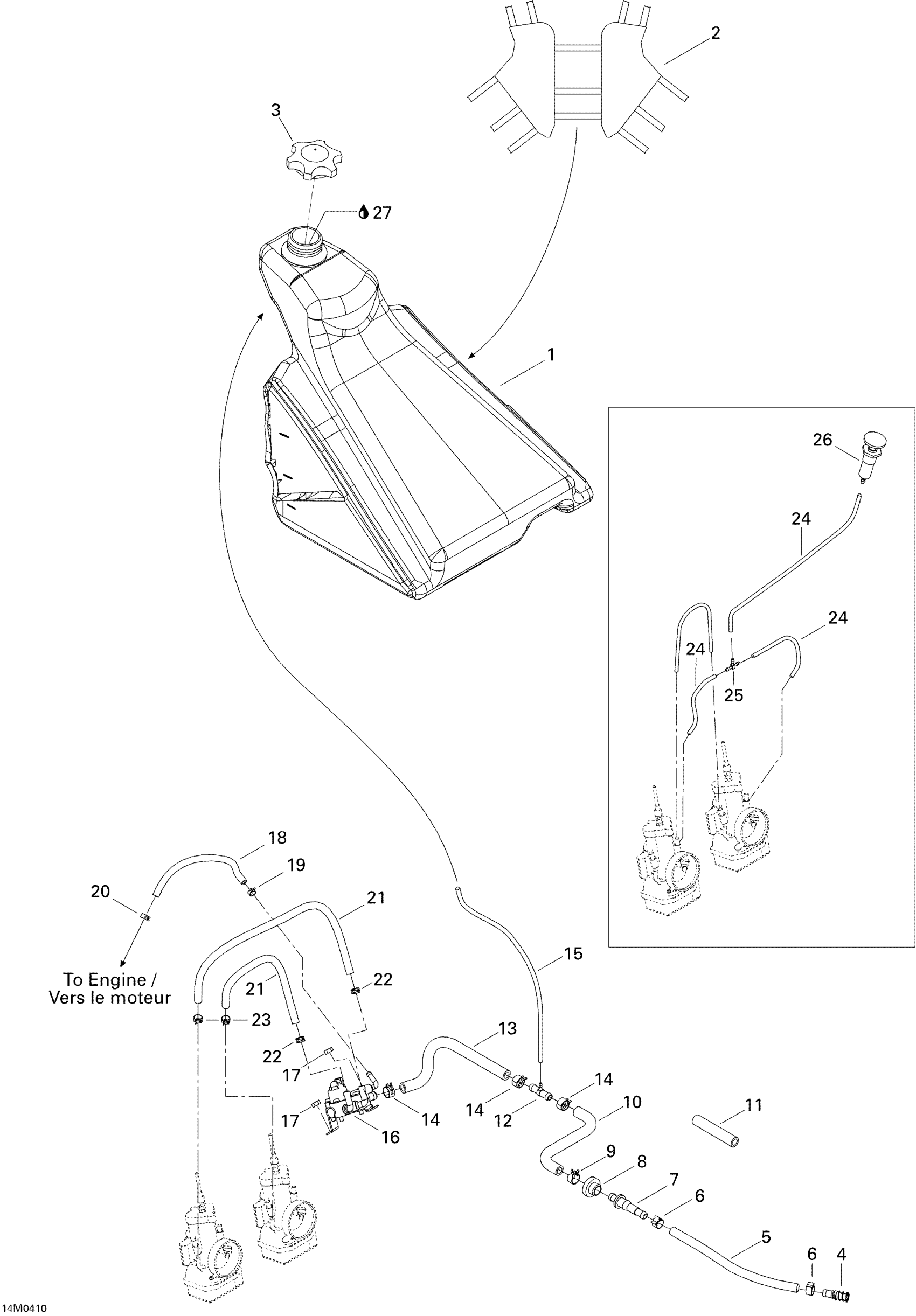

Ski-Doo MX Z X 440 Racing, 2004 Fuel System Diagram
#
Description
Price
1
Fuel Tank
513033099
Unavailable
2
TANK COVER, BLACK - Call your local BRP dealership
513033075
Unavailable
5
POLYURETHANE HOSE 7.6MM - Call your local BRP dealership
415097800
Unavailable
6
Norma Spring Clamp
513033010
Unavailable
7
Male Connector
414872700
Unavailable
8
Grommet | Europe
707800347
Unavailable
9
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
10
Formed Hose
513033072
Unavailable
11
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
12
T-Fitting
415119300
Unavailable
13
FORMED HOSE - Call your local BRP dealership
513033031
Unavailable
14
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
15
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
16
FUEL PUMP - Call your local BRP dealership
403901810
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
HOSE - Call your local BRP dealership
513033035
Unavailable
20
Universal Spring Clamp
513033029
Unavailable
21
Polyurethane Hose 10000Mm Long
219704410
Unavailable
23
Spring Clamp
414420700
Unavailable
24
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
25
T-Fitting
414222400
Unavailable
26
Primer
415060500
Unavailable
27
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.
293600120
Unavailable
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
Unavailable
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
OIL 2T 12X1 SYNTH - Call your local BRP dealership This part replaces 293600045.
293600132
Unavailable
