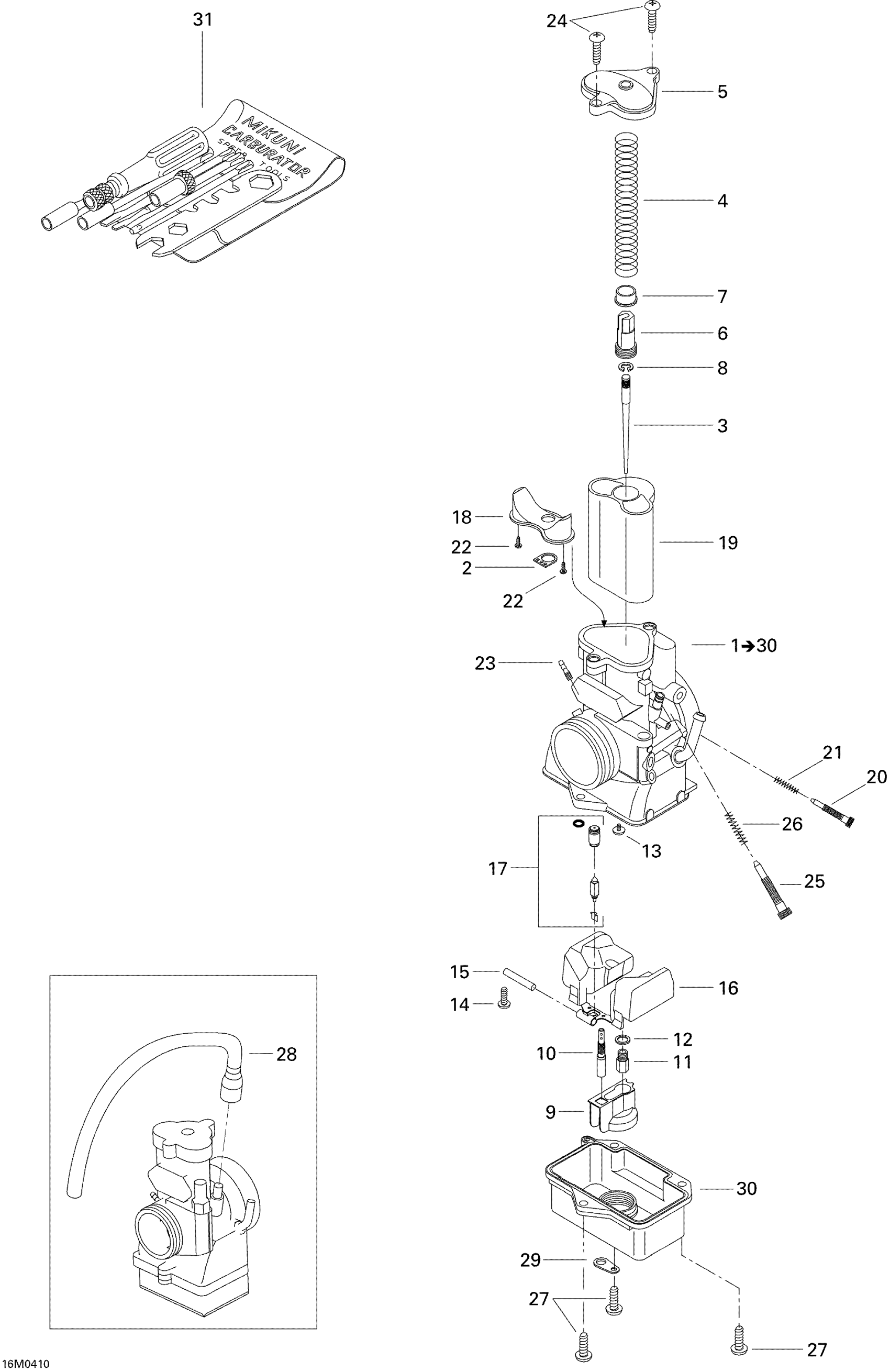

Ski-Doo MX Z X 440 Racing, 2004 Carburetor Diagram

#

Description
Price

1

Carburator Tmx-34

403138765

Unavailable

Carb-Tmx-34 | Europe

403138771

Unavailable

2

Packing

404161865

$23.99

3

NEEDLE - Call your local BRP dealership

404162065

Unavailable

NEEDLE JET - Call your local BRP dealership

404162066

Unavailable

4

SPRING - Call your local BRP dealership

404161864

$15.35

5

TOP CAP - Call your local BRP dealership

404161857

$49.20

6

GUIDE HOLDER - Call your local BRP dealership

404161856

Unavailable

7

RING - Call your local BRP dealership

404161863

Unavailable

8

E-Ring

404152200

$4.29

9

HOLDER - Call your local BRP dealership

404161855

Unavailable

10

PILOT JET 25 - Call your local BRP dealership

404161870

Unavailable

11

Main Jet 400

404100900

$5.19

Main Jet 350

404106000

$5.19

12

WASHER - Call your local BRP dealership

404161862

Unavailable

13

SCREW - Call your local BRP dealership

404161861

$3.89

14

SCREW - Call your local BRP dealership

404138600

$2.89

15

PIN - Call your local BRP dealership

404161860

Unavailable

16

FLOAT - Call your local BRP dealership

404161859

Unavailable

17

Needle Valve 1.5

404161868

$32.99

18

VENTURI - Call your local BRP dealership

404161974

Unavailable

19

PISTON VALVE 4.0 - Call your local BRP dealership

404161867

Unavailable

20

ADJUSTER - Call your local BRP dealership

404161866

$14.45

21

SPRING - Call your local BRP dealership

404132400

$7.26

22

SCREW - Call your local BRP dealership

404161852

Unavailable

23

Nipple

404153400

$11.51

24

Screw

404138700

$3.69

25

ADJUSTER - Call your local BRP dealership

404161850

$21.49

26

SPRING - Call your local BRP dealership

404161849

$10.88

27

SCREW - Call your local BRP dealership

404161848

Unavailable

28

AIR VENT TUBE - Call your local BRP dealership

404161851

$12.28

29

PLATE - Call your local BRP dealership

404103000

$8.51

30

Not Available As Spare Part - Friction Washer

Unavailable

31

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
