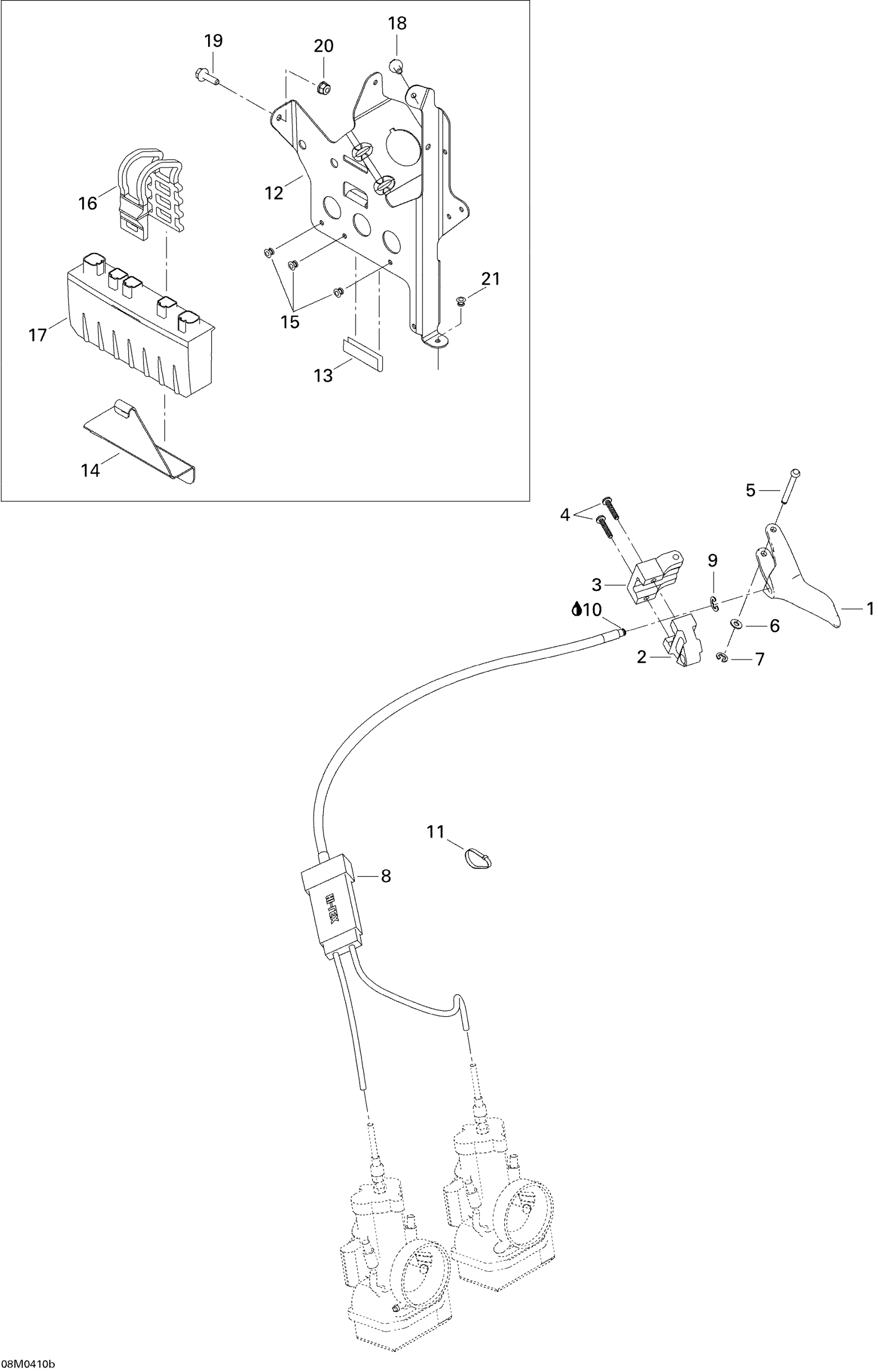

Ski-Doo MX Z X 440 Racing, 2004 MPEM, DPM And Throttle Diagram

#

Description
Price

1

Handle Ass'y

512060214

Unavailable

2

Lower Housing

512059537

$73.05

3

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

4

Socket Screw M5 X 25

205052544

$1.34

5

Lever Pin

414438700

$11.14

6

Flat Washer M5, Stainless

234051600

$0.64

7

Circlip | Model-RS

414439000

Unavailable

8

THROTTLE CABLE - Call your local BRP dealership

512059742

Unavailable

9

Circlip

414274500

Unavailable

10

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

11

Tie Wrap 368 mm

293750008

$0.85

12

Mpem Support

512059502

Unavailable

13

Was 271000110 Protection Trim

219704353

Unavailable

14

Plate

518322928

Unavailable

15

Pop Rivet 3/16"

390402400

Unavailable

16

LATCH - Call your local BRP dealership

570069700

Unavailable

17

Calibration Module | C/U

512059926

Unavailable

Calibration Module | EUR

512059941

Unavailable

18

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

19

Hex. Flange Screw M6 X 25

207662544

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

21

Pop Rivet 3/16"

390402400

Unavailable
