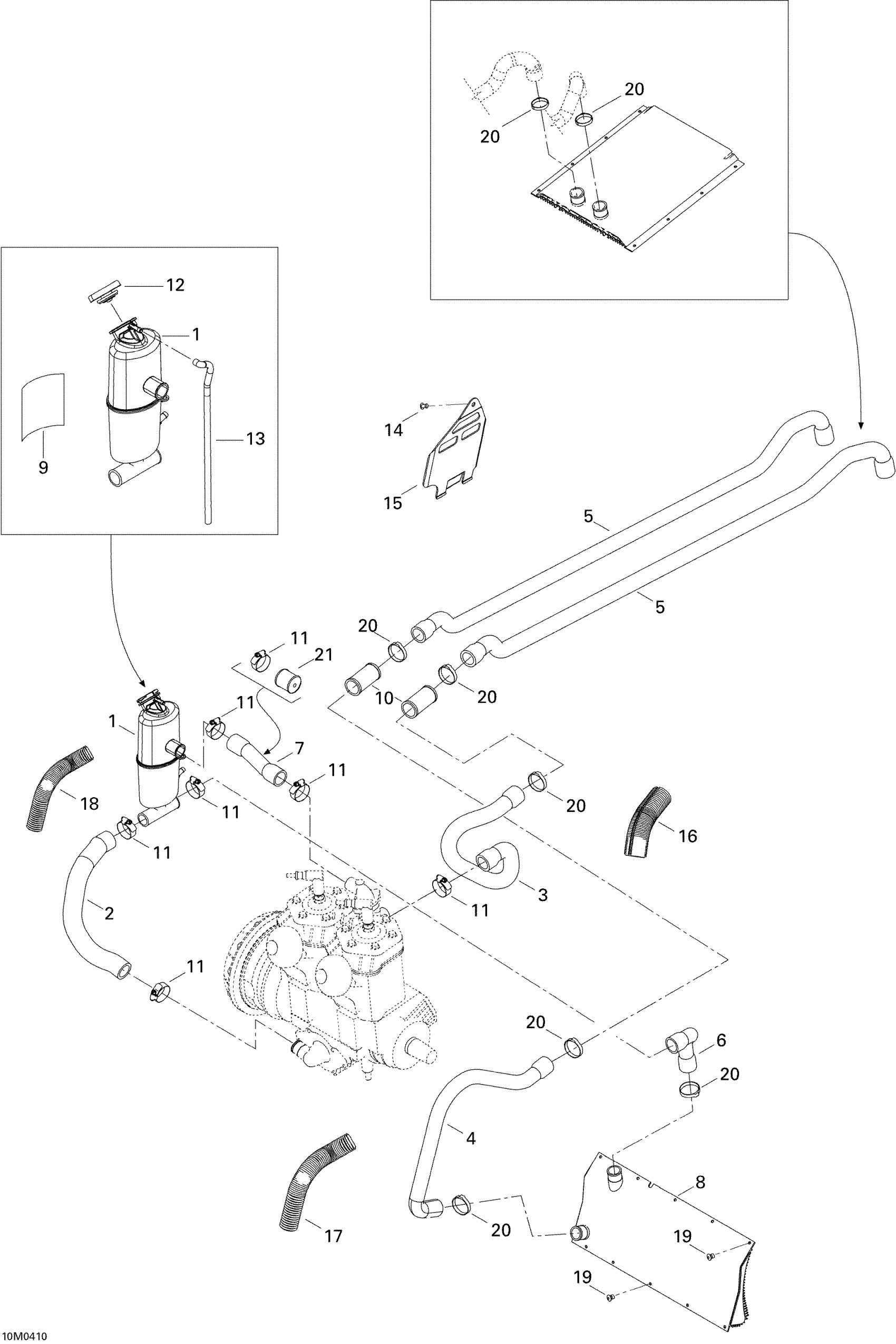

Ski-Doo MX Z X 440 Racing, 2004 Cooling System Diagram
#
Description
Price
1
Coolant Tank
509000281
Unavailable
2
ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000135
Unavailable
3
FRONT ENGINE HOSE OUTLET - Call your local BRP dealership
509000220
Unavailable
4
FRONT RADIATOR HOSE INLET - Call your local BRP dealership
509000222
Unavailable
5
REAR RADIATOR HOSE INLET - Call your local BRP dealership
509000223
Unavailable
6
RADIATOR OUTLET HOSE - Call your local BRP dealership
509000184
Unavailable
7
Hose
509000196
Unavailable
8
Front Radiator
509000319
Unavailable
9
REFECTIVE SHEET - Call your local BRP dealership
509000190
Unavailable
10
Fitting
509000224
Unavailable
11
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
12
Pressure Cap
509000187
Unavailable
13
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
14
Avex Rivet
390909200
Unavailable
15
DEFLECTOR - Call your local BRP dealership
509000257
Unavailable
16
Tubing 25 MM 1000MM Long
219704402
Unavailable
17
Tubing 25 MM 1000MM Long
219704402
Unavailable
18
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
20
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
21
CHOKE - Call your local BRP dealership
509000197
Unavailable
