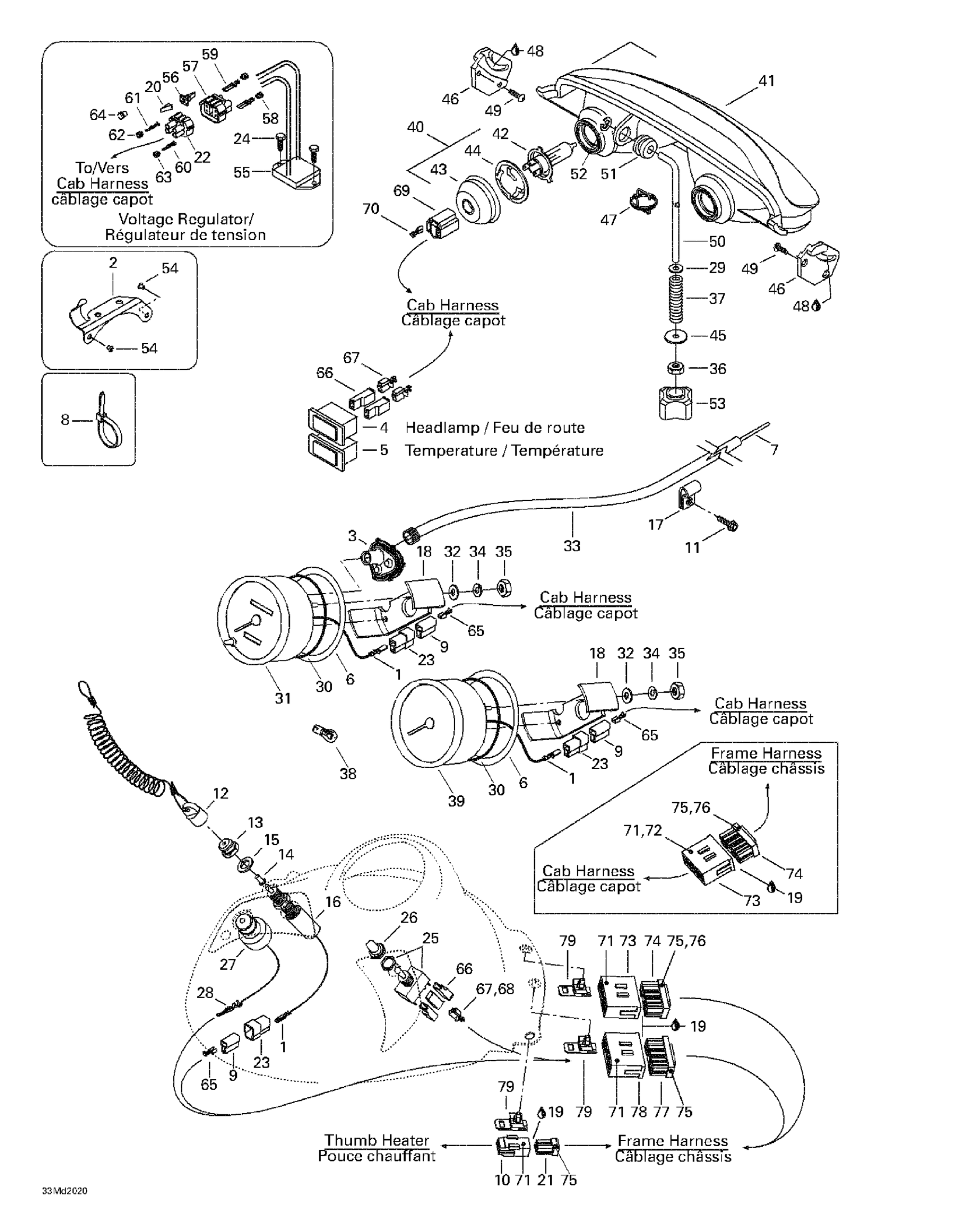

Ski-Doo MX Z X 440 LC, 2000 Electrical System Diagram
#
1
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
2
Cable Support
515175254
Unavailable
3
Drive Angle
515175400
Unavailable
4
Pilot Lamp (Blue)
410109600
Unavailable
5
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
6
Washer
517258500
Unavailable
7
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
8
Tie Wrap 142 mm
293750002
Unavailable
Tie-Rap 173 mm
293750009
Unavailable
9
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Cap Ass'Y This part replaces 515176462.
515178292
Unavailable
13
Switch Nut
415073500
Unavailable
15
Flat Washer 10 mm
234001410
Unavailable
18
Case Holder
414806500
Unavailable
19
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
20
Male Lock
409013100
Unavailable
22
Male Terminal Housing (4 circuits)
409207700
Unavailable
23
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
27
DESS SWITCH - Call your local BRP dealership
515175145
Unavailable
29
Flat Washer 6 mm
234061410
Unavailable
30
O-Ring
414807100
Unavailable
31
Speedometer, Kmh
515175335
Unavailable
Speedometer, Mph
515175336
Unavailable
33
Speedometer Cable
415101500
Unavailable
34
Lock Washer
414806700
Unavailable
35
Nut
414806900
Unavailable
36
Elastic Stop Nut M6
228561414
Unavailable
37
SPRING - Call your local BRP dealership
415100600
Unavailable
38
INSTRUMENTATION BULB - Call your local BRP dealership
410504200
Unavailable
39
Tachometer
515175341
Unavailable
40
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
41
Not Available As Spare Part - Friction Washer
Unavailable
42
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
43
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
45
Washer
224060251
Unavailable
46
RH Support
517289300
Unavailable
LH Support
517289400
Unavailable
47
SPRING - Call your local BRP dealership | Europe
515175324
Unavailable
48
Grease Tube Lmz, 400 G
413707500
Unavailable
49
Headlamp Screw
732601315
Unavailable
50
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
51
Grommet - Call your local BRP dealership
415100800
Unavailable
52
Push Nut
732610072
Unavailable
53
Handle - Call your local BRP dealership
515175548
Unavailable
55
Voltage Regulator | Includes 48 - 52.
515175491
Unavailable
56
Female Lock
409013400
Unavailable
57
Not Available As Spare Part - Friction Washer
Unavailable
58
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
59
FEMALE TERMINAL - Call your local BRP dealership
278000994
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Male Terminal
409010900
Unavailable
62
Seal
409208300
Unavailable
63
WIRE SEAL - Call your local BRP dealership
278000996
Unavailable
65
Female Terminal
561503100
Unavailable
69
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
70
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
72
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
74
Female Terminal Housing, 13 Circuits
515175350
Unavailable
75
Female Terminal
515175231
Unavailable
77
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership
515175349
Unavailable
78
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership
515175351
Unavailable
