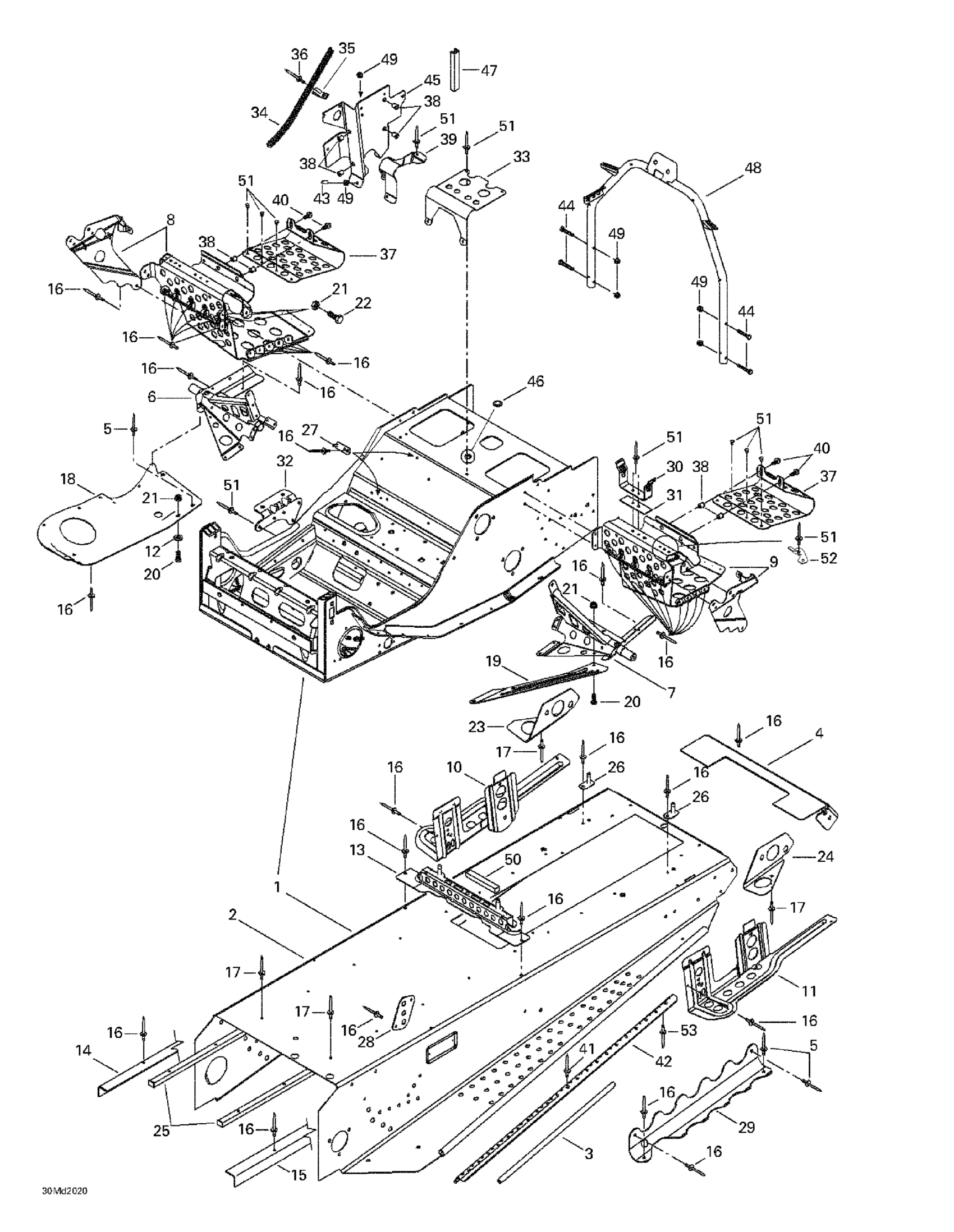

Ski-Doo MX Z X 440 LC, 2000 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 29. (Radiator and Radiator Protector Included)
518322124
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Footrest Reinforcement
518322053
Unavailable
4
Rear Cap
518321620
Unavailable
5
Pop Rivet 3/16"
390402300
Unavailable
6
RH Footrest Support
518322037
Unavailable
7
LH Footrest Support
518322040
Unavailable
8
RH Footrest Ass'y
518322058
Unavailable
9
LH Footrest Ass'y
518322062
Unavailable
10
RH Slide Bracket
518322043
Unavailable
11
LH Slide Bracket
518322046
Unavailable
12
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
13
Fuel Tank Bracket
518322049
Unavailable
14
RH Frame Reinforcement
518321561
Unavailable
15
LH Frame Reinforcement
518321562
Unavailable
17
Pop Rivet 3/16"
390402400
Unavailable
18
RH Bottom Pan Plate | 600
518319760
Unavailable
21
Hex. Flange Elastic Nut M5
233251414
Unavailable
23
RH Rear Reinforcement
518321472
Unavailable
24
LH Rear Reinforcement
518321473
Unavailable
25
Frame Protector
518321609
Unavailable
26
Guide
518319730
Unavailable
27
Double Bracket
518319728
Unavailable
29
RH Tunnel Liner
518322033
Unavailable
LH Tunnel Liner
518322034
Unavailable
32
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
33
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
34
ROPE GUIDE - Call your local BRP dealership
518321569
Unavailable
35
Open Clamp
518321570
Unavailable
36
Pop Rivet 3/16"
390406500
Unavailable
37
Toe Hold
518321602
Unavailable
38
Insert
293450275
Unavailable
39
Hose Support
518319762
Unavailable
40
Hex. Flange Screw M6 X 16
207661644
Unavailable
41
Pop Rivet 3/16"
390402300
Unavailable
42
Strip
518321627
Unavailable
43
Short Cap
293000025
Unavailable
45
Electronic Module Support
518322054
Unavailable
47
Was 271000110 Protection Trim
219704353
Unavailable
48
Handle Support
518321957
Unavailable
49
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
53
Pop Rivet 3/16"
390402400
Unavailable
