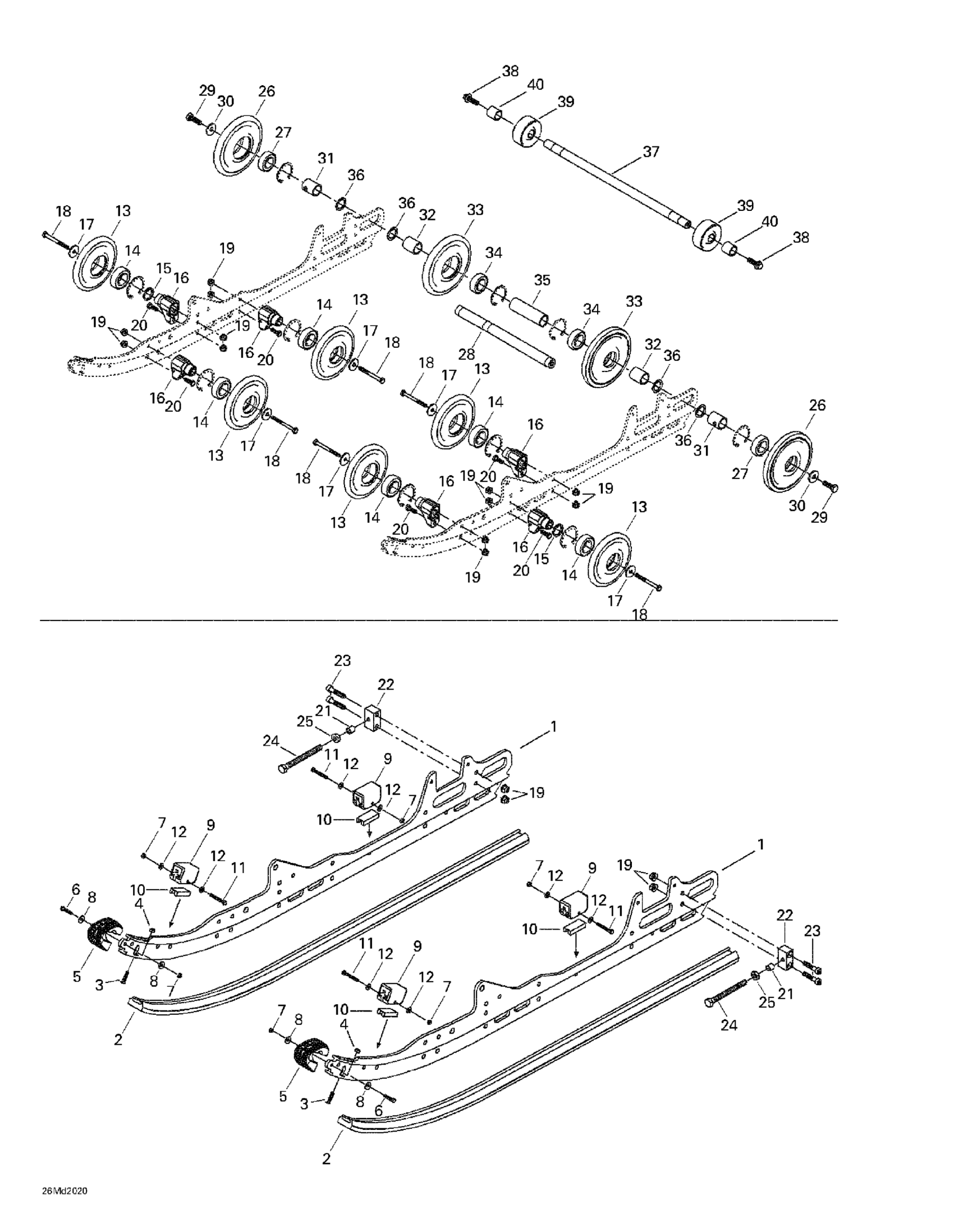

Ski-Doo MX Z X 440 LC, 2000 Rear Suspension Diagram

#

Description
Price

1

Runner

503189463

Unavailable

2

Shoe

560316300

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.39

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

7

Elastic Stop Nut M5

232551414

$1.49

8

Washer | DS 650 X

391301600

$1.49

9

Rubber Stopper

570063000

Unavailable

10

Reinforcement Stopper

572084800

$13.49

11

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

12

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

13

Wheel 135

503191029

$33.99

14

Ball Bearing

293350115

$12.11

15

WASHER - Call your local BRP dealership

503173700

Unavailable

16

SUPPORT - Call your local BRP dealership

503190389

Unavailable

17

Washer

503183100

$3.29

18

Hex. Screw M8 X 80

207088044

$1.69

19

Hex. Flange Elastic Nut M8

233281414

$1.49

20

Hex. Screw M8 X 25

207182544

$1.49

21

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

22

Tensioner

503189211

Unavailable

23

Socket Head Screw M8 X 1.25 X 40

205084044

$2.89

24

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

25

Hex. Nut M10 X 1.5

232006414

$1.49

26

Wheel 165" | Includes 670 to 670b

503194127

$51.99

27

Ball Bearing

293350115

$12.11

28

Rear Axle

503167900

$144.99

29

Hex. Screw With Nylon

250000019

$1.69

30

Washer

503183300

$5.99

31

Outer Spacer

503189809

$18.49

32

Inner Spacer

503182900

$12.99

33

Thin Wheel 165

503189478

$51.99

34

Ball Bearing

293350115

$12.11

35

Center Spacer

503156000

$12.49

36

Washer

503180400

$3.59

37

Shaft

503189233

Unavailable

38

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

39

Track Protector

503189514

Unavailable

40

Spacer

503189254

Unavailable
