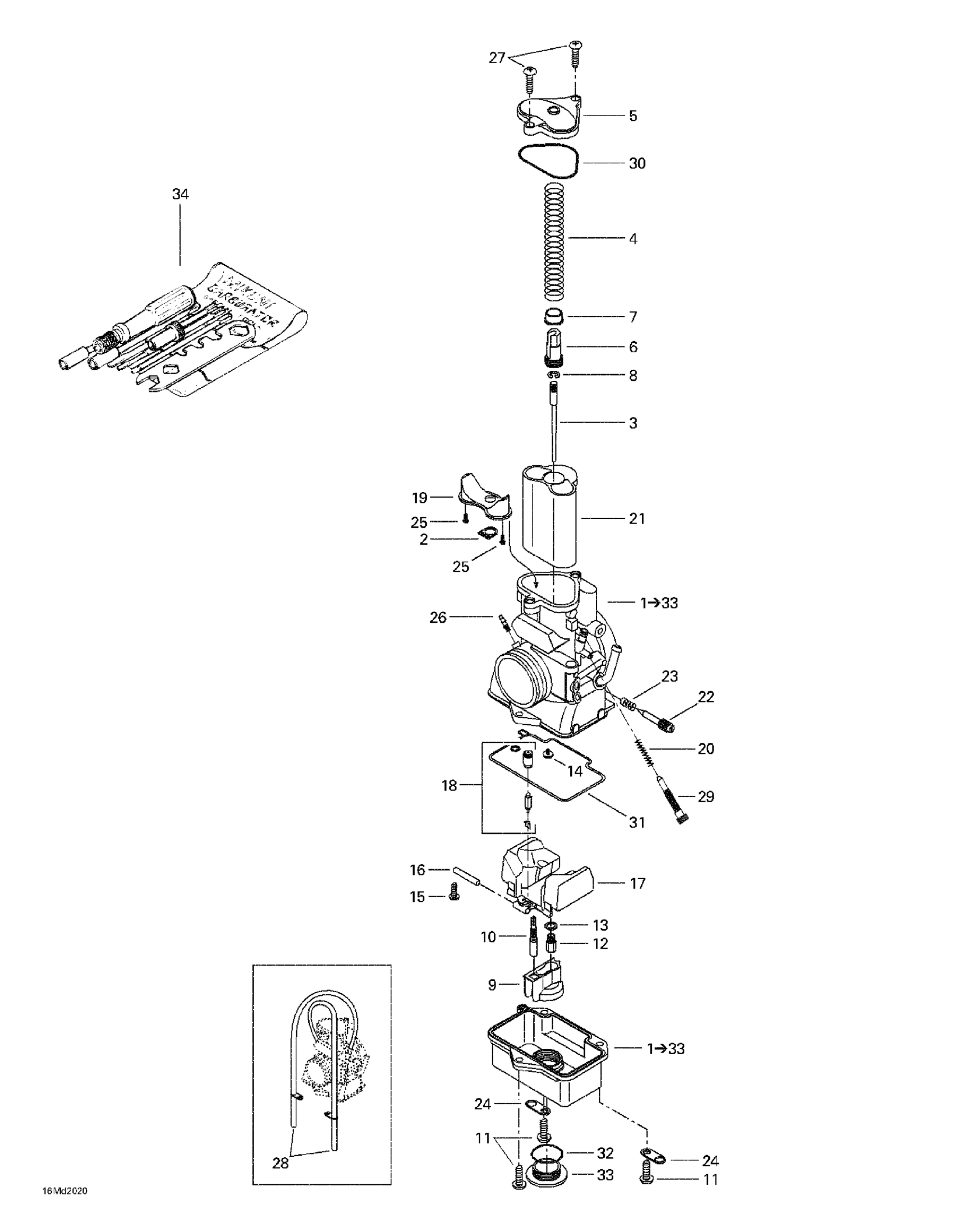

Ski-Doo MX Z X 440 LC, 2000 Carburetors Diagram

#

Description
Price

1

Carburetor TMX 34-7

403138579

Unavailable

2

Packing

404161865

$23.99

3

Needle jet J8-6FIY04-59

404161872

Unavailable

4

SPRING - Call your local BRP dealership

404161864

$15.35

5

TOP CAP - Call your local BRP dealership

404161857

$49.20

6

GUIDE HOLDER - Call your local BRP dealership

404161856

Unavailable

7

RING - Call your local BRP dealership

404161863

Unavailable

8

E-Ring

404152200

$4.29

9

HOLDER - Call your local BRP dealership

404161855

Unavailable

10

PILOT JET 25 - Call your local BRP dealership

404161870

Unavailable

11

SCREW - Call your local BRP dealership

404161848

Unavailable

12

Main Jet 300

404162115

$8.14

13

WASHER - Call your local BRP dealership

404161862

Unavailable

14

SCREW - Call your local BRP dealership

404161861

$3.89

15

SCREW - Call your local BRP dealership

404138600

$2.89

16

PIN - Call your local BRP dealership

404161860

Unavailable

17

FLOAT - Call your local BRP dealership

404161859

Unavailable

18

Needle Valve 1.5

404161868

$32.99

19

Ventury

404161854

Unavailable

20

SPRING - Call your local BRP dealership

404161849

$10.88

21

PISTON VALVE 4.0 - Call your local BRP dealership

404161867

Unavailable

22

ADJUSTER - Call your local BRP dealership

404161866

$14.45

23

SPRING - Call your local BRP dealership

404132400

$7.26

24

PLATE - Call your local BRP dealership

404103000

$8.51

25

SCREW - Call your local BRP dealership

404161852

Unavailable

26

Nipple

404153400

$11.51

27

Screw

404138700

$3.69

28

AIR VENT TUBE - Call your local BRP dealership

404161851

$12.28

29

ADJUSTER - Call your local BRP dealership

404161850

$21.49

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
