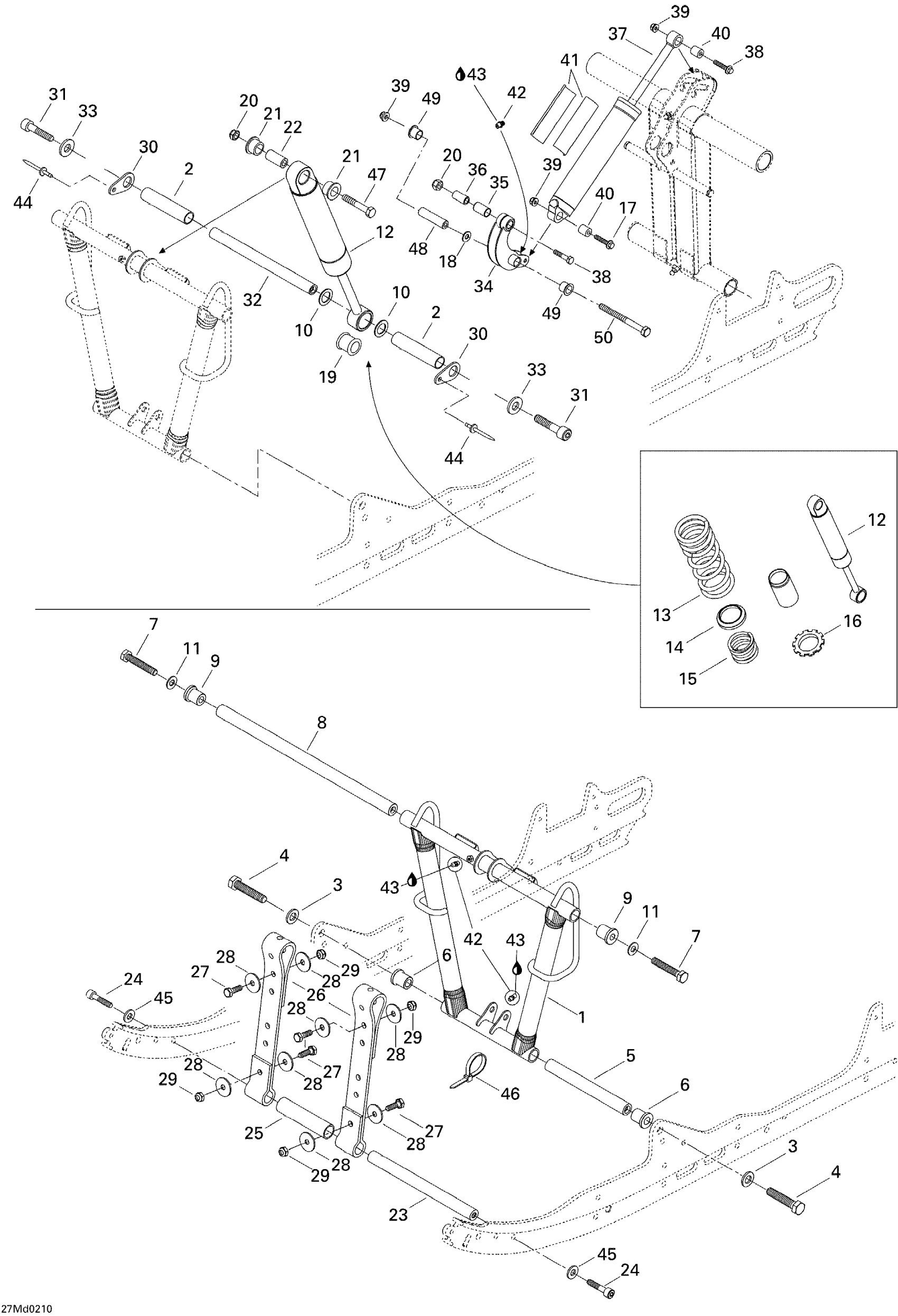

Ski-Doo MX Z X 440, 2002 Front Arm Diagram

#

Description
Price

1

Front Arm

503189938

Unavailable

2

SPACER - Call your local BRP dealership

503189274

Unavailable

3

Washer

503189276

$3.20

4

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

$2.41

5

SHAFT - Call your local BRP dealership

503189313

$13.03

6

CUSHION - Call your local BRP dealership

503189323

Unavailable

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.91

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Bushing

503189324

$11.17

10

Washer

503189273

$3.20

11

Washer

732900049

$0.57

12

Take Apart Shock | . (Rear Suspension - Central Shock)

503189779

Unavailable

13

SPRING - Call your local BRP dealership | Adrenaline

503189990

$39.97

14

SPRING SPACER - Call your local BRP dealership | Adrenaline

505070538

$43.05

15

Spring

503189988

Unavailable

16

Spring Stopper | .

503189998

Unavailable

17

Hex. Flange Screw M8 X 45

207684544

$3.68

18

FLAT WASHER - Call your local BRP dealership

224081201

$0.70

19

Bushing

503189271

$10.46

20

Elastic Locking Nut M10 X 1.5

233601416

$1.68

21

Urethane Bushing

503189117

$6.88

22

Bushing | Includes 240d to 240d1

503189282

$4.18

23

AXLE - Call your local BRP dealership

503189562

Unavailable

24

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

25

Spacer

503189265

$4.75

26

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

27

Hex. Screw M8 X 25

207182544

$0.74

28

Flat Washer

224081301

$0.86

29

Hex. Elastic Stop Nut M8

232581414

$0.47

30

Plate

503189506

Unavailable

31

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

32

Center Shock Shaft

503189937

Unavailable

33

Washer

503189276

$3.20

34

Rocker

503189960

Unavailable

35

Rocker Axle

503189388

Unavailable

36

CUSHION - Call your local BRP dealership

503189626

$2.38

37

Rear Shock

503189780

Unavailable

38

Hex. Flange Screw M8 X 40

207684044

$1.25

39

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Bushing

414936000

$11.55

41

Shock Decal

516000248

Unavailable

42

Grease Fitting

408200700

$2.80

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

44

Pop Rivet 3/16"

390402300

$0.64

45

Washer

503189564

$0.72

46

Tie-Rap 180 mm

414115200

$0.09

47

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

48

AXLE ROD - Call your local BRP dealership

503189815

Unavailable

49

ROD CUSHION - Call your local BRP dealership

503189861

$6.12

50

Hex. Screw M8 X 95

207089544

Unavailable
