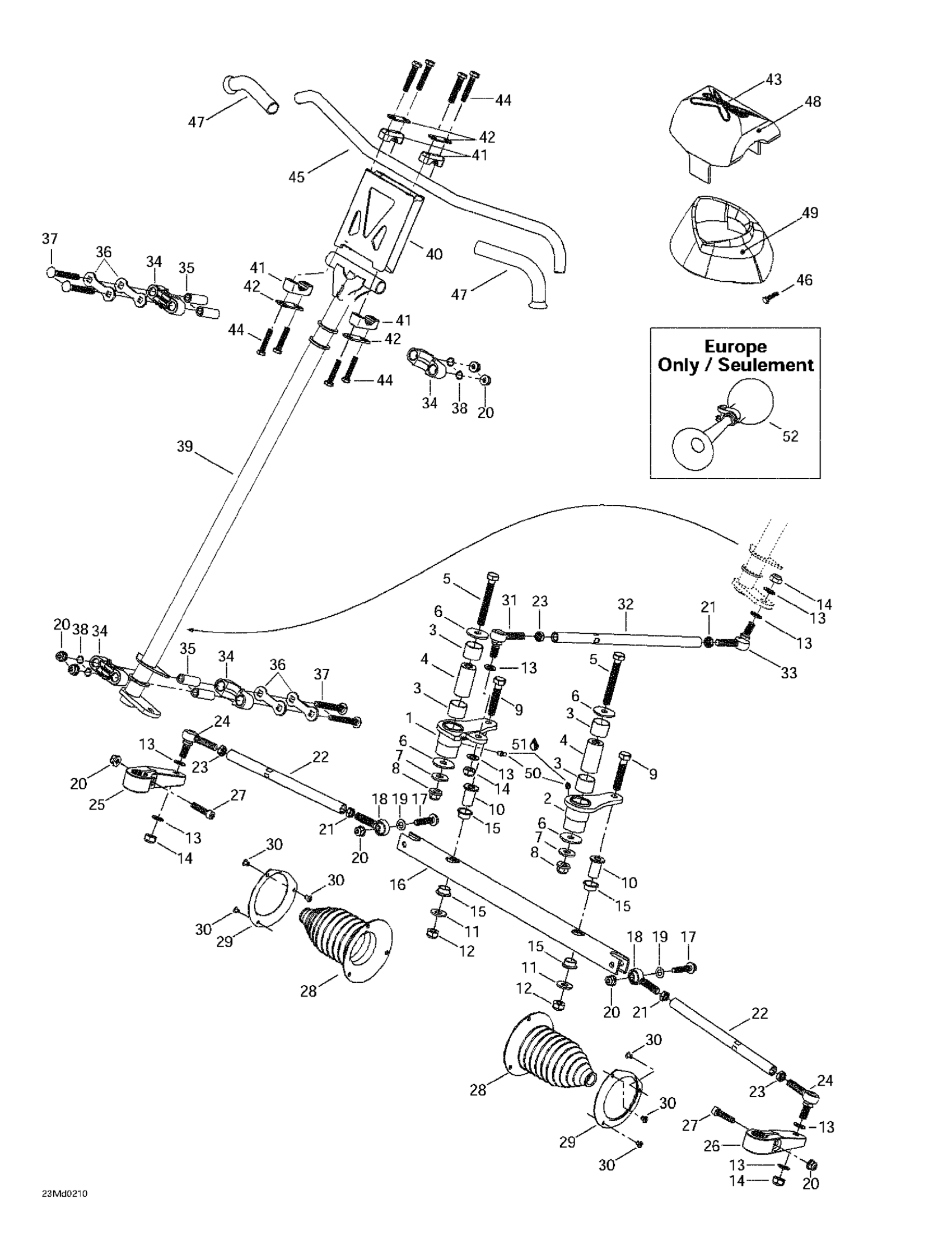

Ski-Doo MX Z X 440, 2002 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151506

Unavailable

2

LH Swivel Arm

506151507

Unavailable

3

BUSHING SWIVEL - Call your local BRP dealership

506149900

Unavailable

4

PIVOT SWIVEL - Call your local BRP dealership

506150100

Unavailable

5

Hex. Screw M10 X 80

207008086

$3.19

6

Washer 10 mm

506150000

$2.55

7

Flat Washer M10 | 4X4

250200014

$1.34

8

Flange Nut M10

732610084

$6.30

9

Hex. Screw M10 X 55

207005544

$2.12

10

BAR PIVOT - Call your local BRP dealership

506147300

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.63

13

Washer

503175800

$3.16

14

Elastic Flange Nut M10

232501416

$1.43

15

Swivel Bushing

503191555

$5.54

16

Bar-Swivel

506147000

Unavailable

17

Hex. Flange Screw M8 X 40

207684044

$1.43

18

LH BALL JOINT - Call your local BRP dealership

506151496

Unavailable

19

Washer

506151252

$3.01

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

LH Threaded Hex. Jam Nut M10

250100016

$0.70

22

Tie-Rod

506151190

Unavailable

23

RH Threaded Hex. Jam Nut M10

732610010

$0.70

24

Ball Joint

506151491

$41.01

25

RH Steering Arm

506151523

Unavailable

26

LH Steering Arm

506151524

Unavailable

27

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

28

TIE-ROD CAP - Call your local BRP dealership

570070500

Unavailable

29

RETAINER RING - Call your local BRP dealership

506151100

Unavailable

30

Pop Rivet 3/16"

390402300

$0.73

31

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

32

Inside Tie-Rod

506150300

Unavailable

33

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

34

Housing Half

506150400

$7.09

35

Housing Bushing

506150500

$7.27

36

Stopper Plate

506150600

$4.03

37

Carriage Bolt M8 X 70

207787044

$1.27

38

O-RING - Call your local BRP dealership

506151140

Unavailable

39

Main Tube | MX Z 600. MX Z 800.

506151488

Unavailable

40

Steering Extension (130 mm)

860601100

Unavailable

Steering Extension (105 mm)

506151432

Unavailable

Steering Extension (80 mm)

506151413

Unavailable

41

Steering Support

709400919

$20.12

42

Stiffner

709400509

$4.30

43

Label | Comes with item 48

516000713

Unavailable

44

Hex. Screw With Nylon M8 X 40

250000074

$1.78

45

Handle Bar

506151525

Unavailable

46

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

47

RH Grip 6-1/2"

506151530

Unavailable

LH GRIP 8-3/4 - Call your local BRP dealership

506151541

Unavailable

48

Steering Pad

506151531

Unavailable

49

Console Collar | MX Z 600. MX Z 800.

506151514

Unavailable

50

Grease Fitting

408200700

$3.21

51

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

52

Horn

549011291

$34.30
