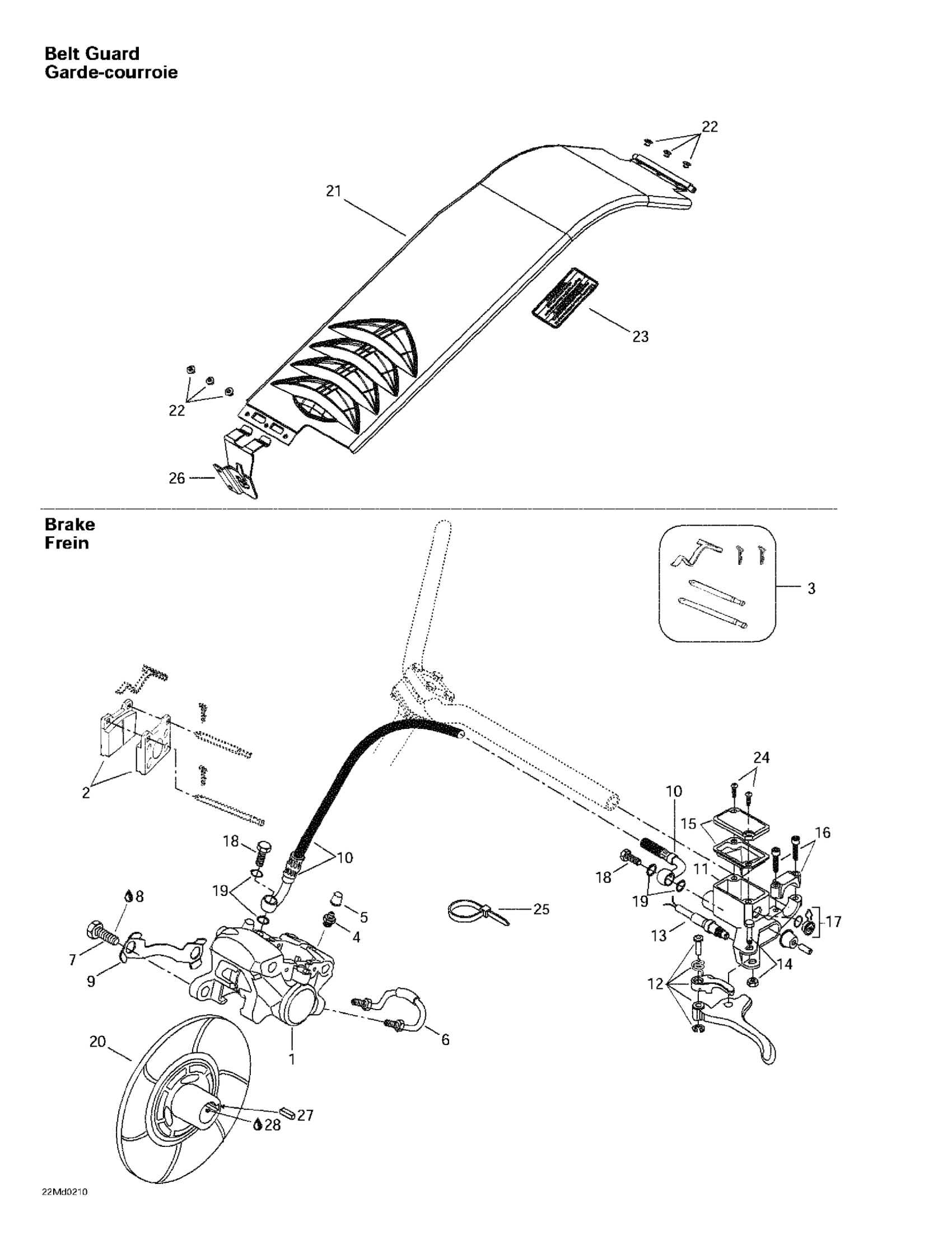

Ski-Doo MX Z X 440, 2002 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper (X) | MX Z 600. MX Z 700. MX Z 800.

507032204

Unavailable

2

Brake Pad Kit

415084600

$73.85

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

$1.63

8

Loctite 243, 10 ml

293800060

$21.49

9

LOCKING TAB - Call your local BRP dealership

507032316

Unavailable

10

Braided Brake Hose

507032329

Unavailable

11

Master Cylinder | Includes 11 - 17.

507032323

Unavailable

12

BRAKE SHORT LEVER ASSY - Call your local BRP dealership

507032268

Unavailable

13

Microswitch

507032366

$101.46

14

Pin Ass'y

415030000

$17.13

15

Cap

415029900

$38.78

16

Clamp And Screw Kit

507032477

$22.36

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

$8.24

19

Washer

414920600

$1.75

20

Brake Disk Ass'y

507030900

Unavailable

21

Belt Guard Ass'y | Includes 21 - 23.

417300183

Unavailable

22

Pop Rivet 3/16"

390402200

$0.30

23

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

24

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

25

Tie Wrap 94 mm | 4X4

293750001

$0.96

26

Bracket

417300001

Unavailable

27

KEY - Call your local BRP dealership

507021300

Unavailable

28

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
