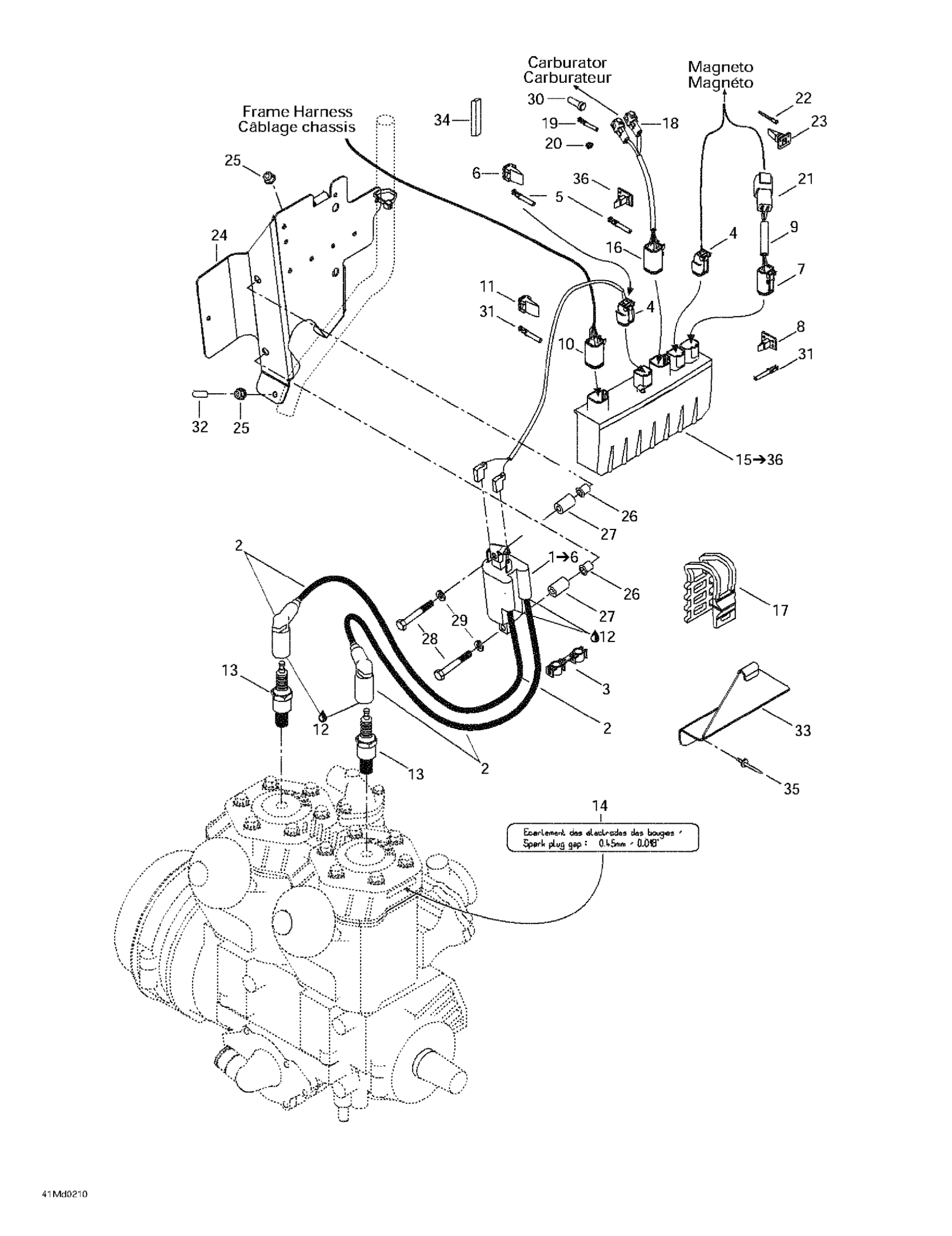

Ski-Doo MX Z X 440, 2002 Ignition Diagram

#

Description
Price

1

IGNITION COIL - Call your local BRP dealership | Includes 23 to 26 / 500 SS & 600 H.O.

512059564

$83.05

2

Cable Ass'y 515 mm

512059499

Unavailable

Cable Ass'y 595 mm

512059500

Unavailable

3

Plastic Clip, Spark Plug Wire

410914600

$4.62

4

Female Connector, 2 Circuits

409207300

$9.60

5

Female Terminal

278000632

$1.69

6

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

7

Mode/Set Switch

278001739

Unavailable

8

Male Lock, 4 Circuits | CE

278000738

$2.91

9

Tubing 6 Mm 3000Mm Long

219704425

$13.14

10

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

11

Femele Lock

515175705

Unavailable

12

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

13

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.03

14

Spark Plug Decal

516000986

Unavailable

15

Calibration Module | Includes 15 - 36.

512059476

Unavailable

16

Male Housing, 6 Circuits

515175673

$13.05

17

LATCH - Call your local BRP dealership

570069700

Unavailable

18

Female Terminal Housing, 2 Circuits

409209200

Unavailable

19

Female Terminal

409012100

$3.73

20

Seal

409012300

$4.38

21

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

$30.74

22

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

23

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

$6.12

24

Electronic Module Support

518322927

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

Insert

293450275

$9.89

27

Spacer

517203200

$15.35

28

Hex. Screw M6 X 45

207064544

$2.02

29

Lock Washer M6, Black

234161471

$0.52

30

Sealing Cap

293000052

$2.55

31

Female Terminal

278000632

$1.69

32

Short Cap

293000025

Unavailable

33

Plate

518322928

Unavailable

34

Was 271000110 Protection Trim

219704353

$15.03

35

Pop Rivet 3/16"

390402400

$0.25

36

Male Wedge, 6 Circuits

515175678

$5.11
