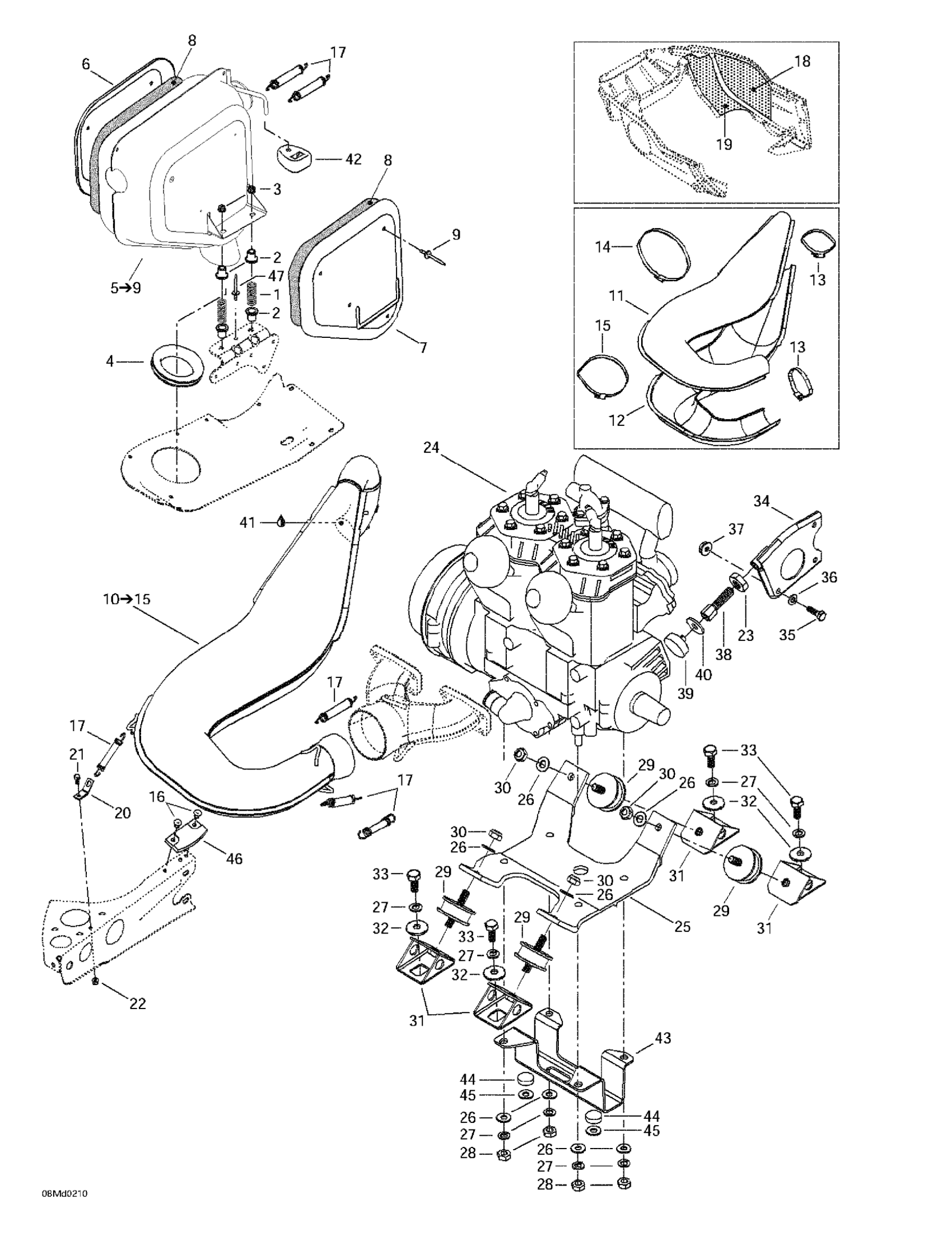

Ski-Doo MX Z X 440, 2002 Engine Support And Muffler Diagram

#

Description
Price

1

SPRING - Call your local BRP dealership

414913700

$2.28

2

GUIDE - Call your local BRP dealership

514053343

$23.05

3

Hex. Flange Nut M8

233081416

$1.63

4

EXHAUST GROMMET - Call your local BRP dealership

570039000

$23.05

5

Muffler Ass'y | Includes 5 - 9.

514053349

Unavailable

6

RH Heat Shield

514051700

Unavailable

7

LH Heat Shield

514052960

Unavailable

8

Insulating Wool R.H

514051900

Unavailable

Insulating Wool L.H

514052961

Unavailable

9

Pop Rivet 3/16”

390910000

$0.48

10

Tuned Pipe Ass'y | Includes 10 - 15.

514053419

Unavailable

11

Upper Envelope

514052938

Unavailable

12

Lower Envelope

514053422

Unavailable

13

Norma Clamp

514052860

Unavailable

14

Gear Clamp (Norma)

514052861

$7.80

15

Norma Gear Clamp

514052983

$11.43

16

Pop Rivet 3/16"

390406500

$0.70

17

Spring

415107100

$6.20

18

Reflective Sheet

514052718

Unavailable

19

Reflective Sheet

514052719

Unavailable

20

Spring Bracket

514053436

$8.35

21

Hex. Screw M5 X 12

207151244

$0.74

22

Hex. Flange Elastic Nut M5

233251414

$1.66

23

Nut Hexagonal RH.

232026414

$1.48

24

<<453>> Engine

400409425

Unavailable

25

Engine Support

512059064

Unavailable

26

Flat Washer 10 mm

234001410

$0.98

27

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

28

Hex. Nut M10 X 1.5

232006414

$1.11

29

RUBBER MOUNT - Call your local BRP dealership

570128700

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.68

31

Engine Support

512050900

Unavailable

32

Lock Washer

512056700

$3.11

33

Hex. Screw M10 X 25

207102544

$1.11

34

Support Plate

512058500

Unavailable

35

Hex. Screw M8 X 20

207182044

$0.61

36

Flat Washer 8 mm

234081410

$0.69

37

Hex. Elastic Stop Nut M8

232581414

$0.47

38

STOPPER SCREW - Call your local BRP dealership

512058800

$12.12

39

Stopper

512059056

Unavailable

40

WASHER - Call your local BRP dealership

512059057

Unavailable

41

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

42

RUBBER BUMPER - Call your local BRP dealership

514052704

$10.74

43

Engine Support Extension

512059242

Unavailable

44

STOPPER - Call your local BRP dealership

512059055

Unavailable

45

Washer

512059058

Unavailable

46

Rubber Pad

570044100

Unavailable

47

Pop Rivet 3/16"

390402200

$0.26
