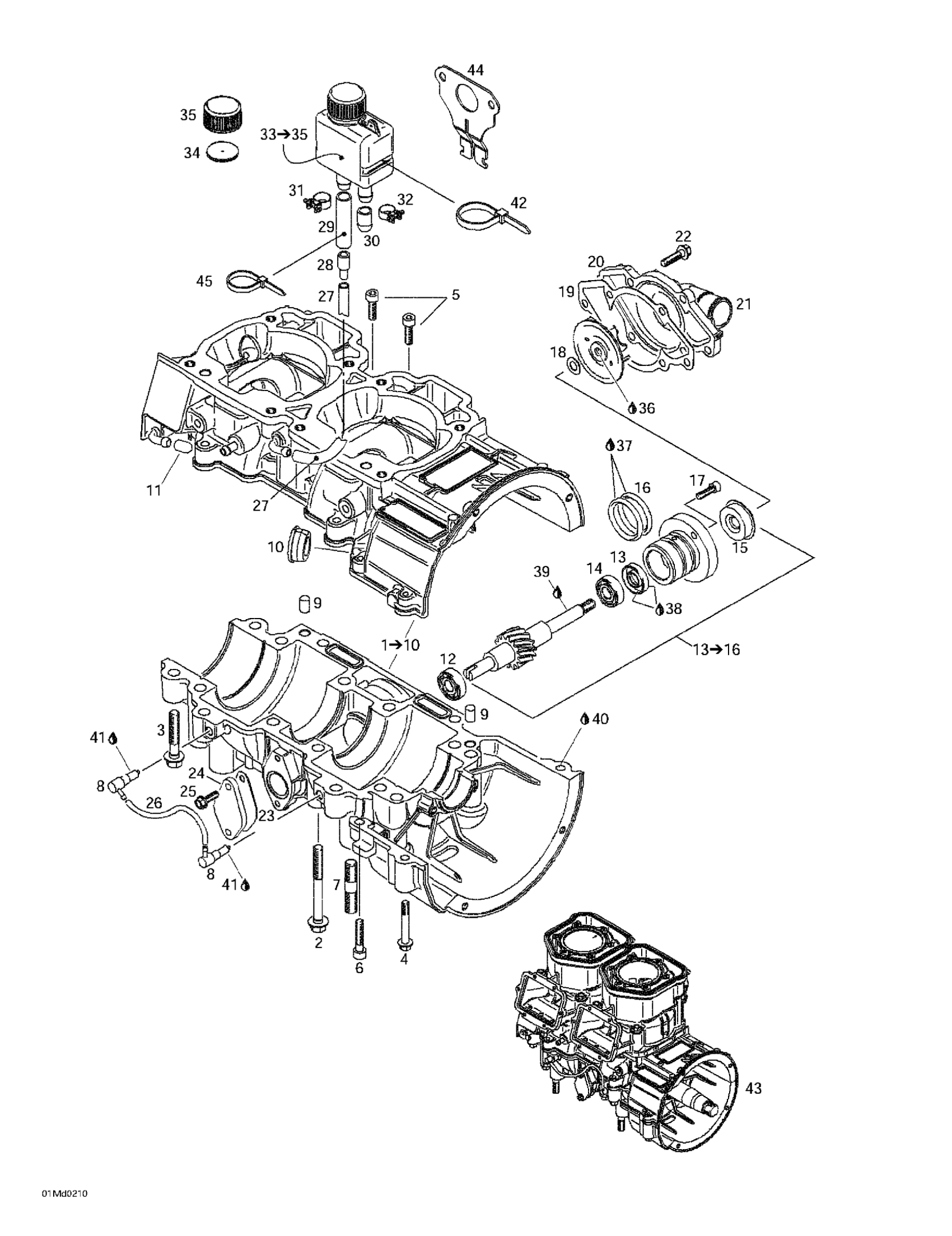

Ski-Doo MX Z X 440, 2002 Crankcase, Water Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 10.

420888762

Unavailable

2

Hex. Collar Screw M8 X 75

420640836

$1.88

3

Hex. Collar Screw M8 x 45

420640432

$1.88

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.15

5

Socket Head Screw M6 x 20

205241930

Unavailable

6

Socket Head Screw M6 x 30

205840880

Unavailable

7

Stud M10 x 25

420940400

Unavailable

8

Check Valve

420956511

$32.81

9

Center Pin 8 X 12

420632010

$3.52

10

Cable Grommet

420860965

$13.18

11

Cap

420960770

$3.88

12

Ball Bearing

420232100

$17.88

13

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$332.06

13

Oil Seal

420230195

$14.52

14

Ball Bearing

420232100

$17.88

15

Rotary Seal

420650371

$41.01

16

O-Ring

420950890

$4.15

17

Allen Screw M5 x 16

420840514

$1.79

18

Thrust Washer

420227945

$3.75

19

Water Impeller

420222505

$17.13

20

Gasket This part replaces 420931810.

420931811

$12.87

21

Water Pump Housing

420922630

$57.43

22

Hex. Screw M6 X 25

420240034

$1.79

23

Gasket This part replaces 420931566.

420931568

$9.03

24

Cover Plate

420810827

$14.10

25

Taptite Screw M5 X 16

420941928

Unavailable

26

Oil Line

414960561

Unavailable

27

Hose

415974535

Unavailable

28

Fitting

420874370

$14.10

29

OIL TUBE - Call your local BRP dealership

420956239

Unavailable

30

Closure Cap

420960279

$4.16

31

CLAMP - Call your local BRP dealership

420951260

Unavailable

32

CLAMP - Call your local BRP dealership

420951241

$8.04

33

Oil Tank Ass'y | Includes 25 to 27

420956240

$67.88

34

Rubber Gasket

420850350

$5.06

35

Oil Tank Cap

420956250

$13.18

36

Loctite 243, 10 ml

293800060

$21.49

37

Dow Corning 111, 150 g

413707000

$59.99

38

Petamo Grease, GHY133N, 400 g

420899271

$65.64

39

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

40

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

41

Sealant Loctite 648

219703000

$41.01

42

Tie Wrap 368 mm

293750008

$0.97

43

Engine Short Block <<453>>

420045302

Unavailable

44

Oil Tank Support

512059199

Unavailable

45

Tie-Rap 180 mm

414115200

$0.10
