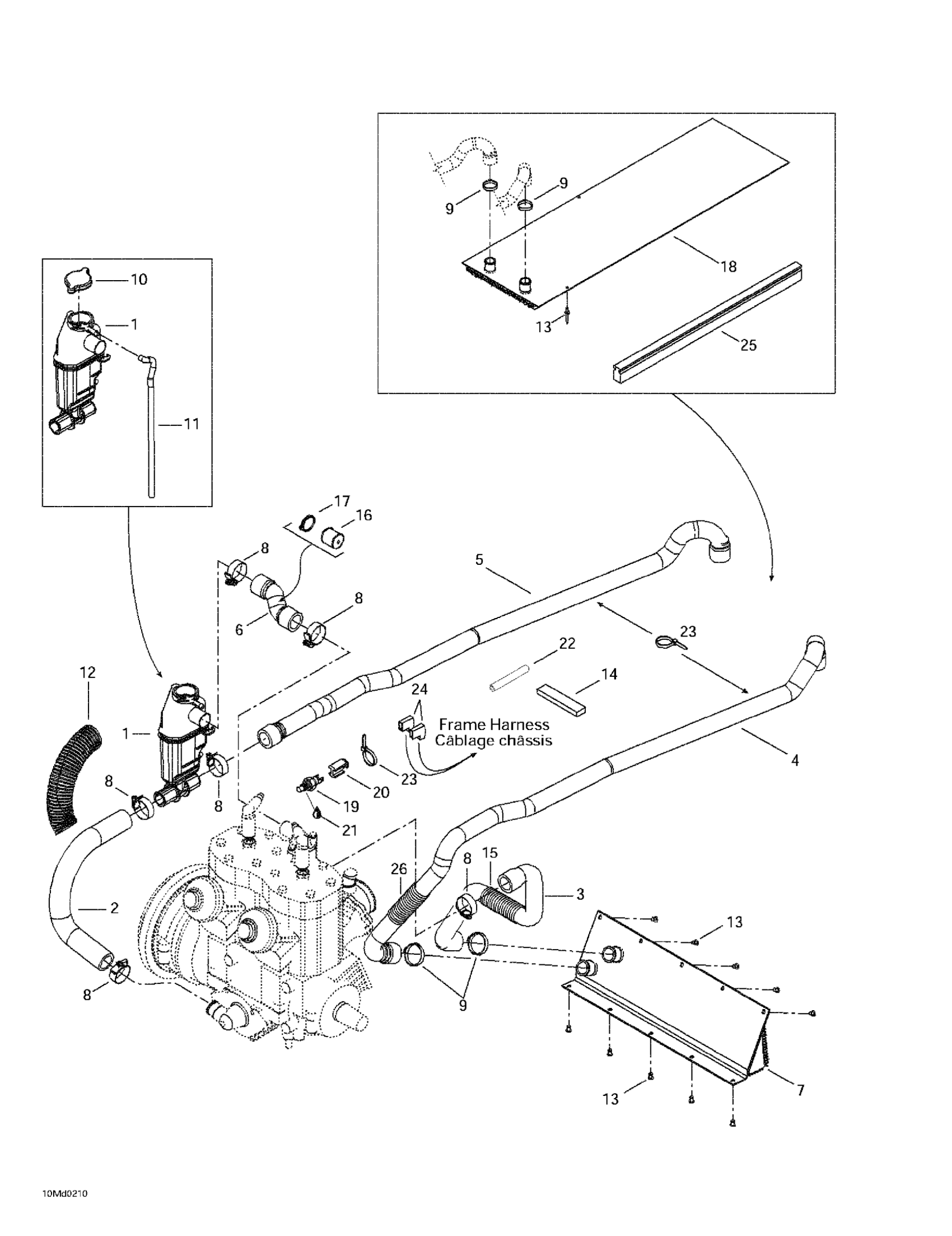

Ski-Doo MX Z X 440, 2002 Cooling System Diagram

#

Description
Price

1

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$86.12

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

$32.28

3

Engine Outlet Hose

509000002

Unavailable

4

RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000003

$74.58

5

Radiator Outlet Hose | Grand Touring 500.

509000004

Unavailable

6

Deviation Hose | Grand Touring 500.

509000112

Unavailable

7

Front Radiator | Grand Touring 500.

517297100

Unavailable

8

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

9

Oetiker Gear Clamp 36.1MM

509000045

$3.55

10

Pressure Cap

509000187

$27.66

11

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

12

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

13

Pop Rivet 3/16"

390402200

$0.26

14

Neoprene Seal (1PAC=3M)

219704364

$22.72

15

Tubing 25 MM 1000MM Long

219704402

$12.69

16

Choke

509000138

Unavailable

17

Tridon Gear Clamp

293650051

$3.61

18

Rear Radiator

518322056

Unavailable

19

Temperature Sensor | Grand Touring 500.

512047000

Unavailable

20

Connector Plug | Grand Touring 500.

515175297

Unavailable

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

22

TUBING 6 MM - Call your local BRP dealership

515175442

Unavailable

23

Tie Wrap 368 mm

293750008

$0.85

24

Female Terminal

409010300

$4.12

25

Radiator Protector

518322122

Unavailable

26

Tubing 25 MM 1000MM Long

219704402

$12.69
