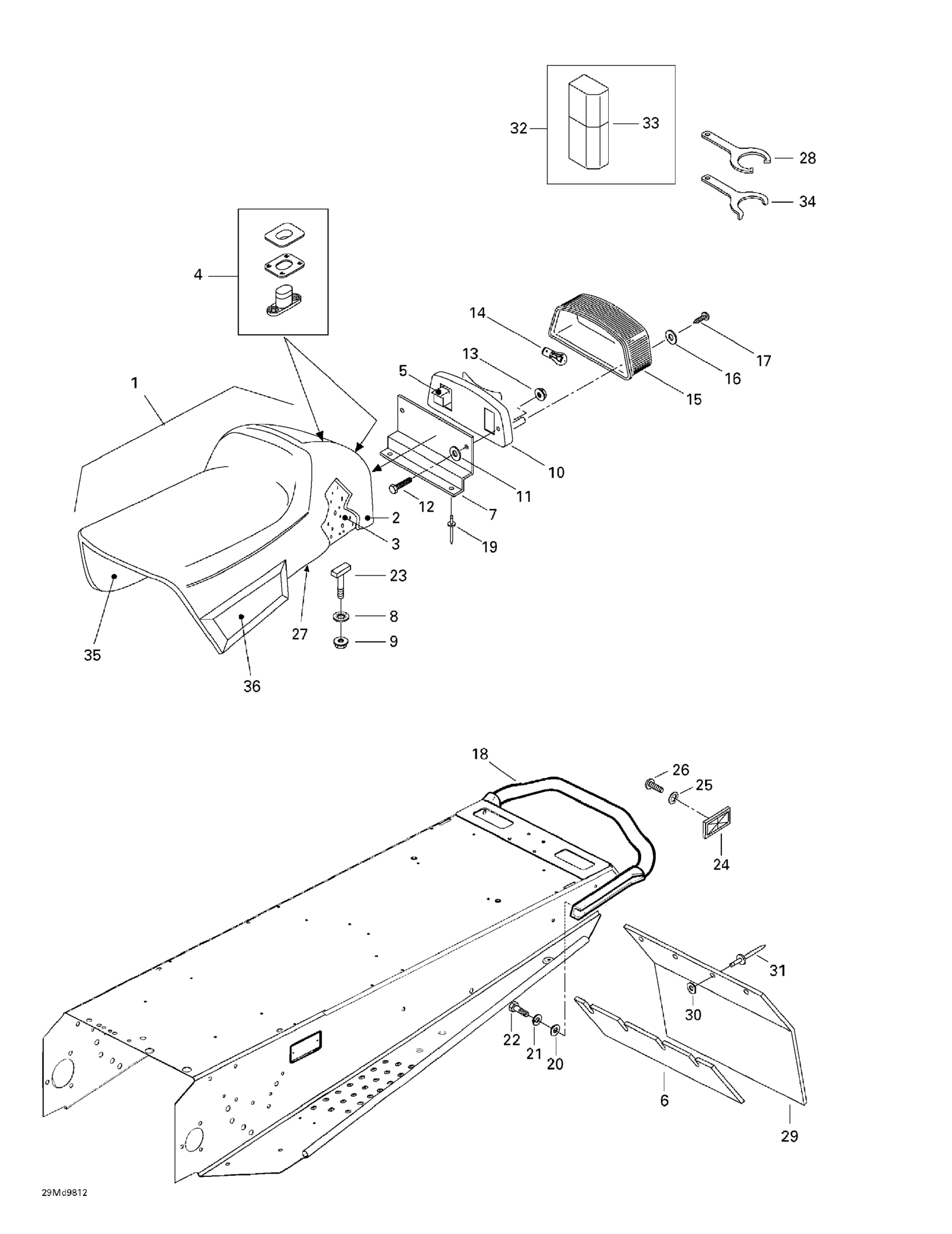

Ski-Doo MX Z X 400 LC, 1998 Seat And Accessories Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Seat Cover (1 pass.)
415113803
Unavailable
3
Seat Foam(1 pass.)
415065902
Unavailable
4
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
5
Block Dimmer Switch
572150800
Unavailable
6
REINFORCEMENT - Call your local BRP dealership
572108200
Unavailable
7
Case Holder | Summit X670.
415111700
Unavailable
8
Push Nut
732610072
Unavailable
9
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
10
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
11
WASHER - Call your local BRP dealership | MX Z X 600RS
517297900
Unavailable
12
Hex. Screw M5 X 30
207053044
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
Lens
414513700
Unavailable
16
Washer - Call your local BRP dealership
414516400
Unavailable
17
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
18
REAR BUMPER - Call your local BRP dealership
518318200
Unavailable
19
Pop Rivet 3/16"
390906800
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Lock Washer 8 mm
234181401
Unavailable
23
«T» Bolt
732601221
Unavailable
24
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
25
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
26
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
27
Seat Base | Summit X670.
572094100
Unavailable
28
Adjuster Wrench (Rear Suspension)
529024000
Unavailable
29
Snow Gard (Yellow)
572101500
Unavailable
31
Rivet (Black) 3/16 | Formula 500 LC.
390909600
Unavailable
32
Tool Kit
529027900
Unavailable
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
Socket Wrench 10/13 mm
529014900
Unavailable
Socket Wrench 21/26 mm
529014800
Unavailable
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
MULTI-WRENCH - Call your local BRP dealership
529014700
Unavailable
Was 412500100 Rope-Starter
219704403
Unavailable
Starter Grip
529000060
Unavailable
Spacing Tool
529035501
Unavailable
FORK WRENCH 15/17 MM - Call your local BRP dealership
529000003
Unavailable
33
TOOLS BOX - Call your local BRP dealership
708200043
Unavailable
34
Adjuster Wrench (Rear Suspension)
529025500
Unavailable
35
Front Seat Base
572111000
Unavailable
36
LH Padding (Not Showned)
415127461
Unavailable
RH Padding (Not Showned)
415127462
Unavailable
