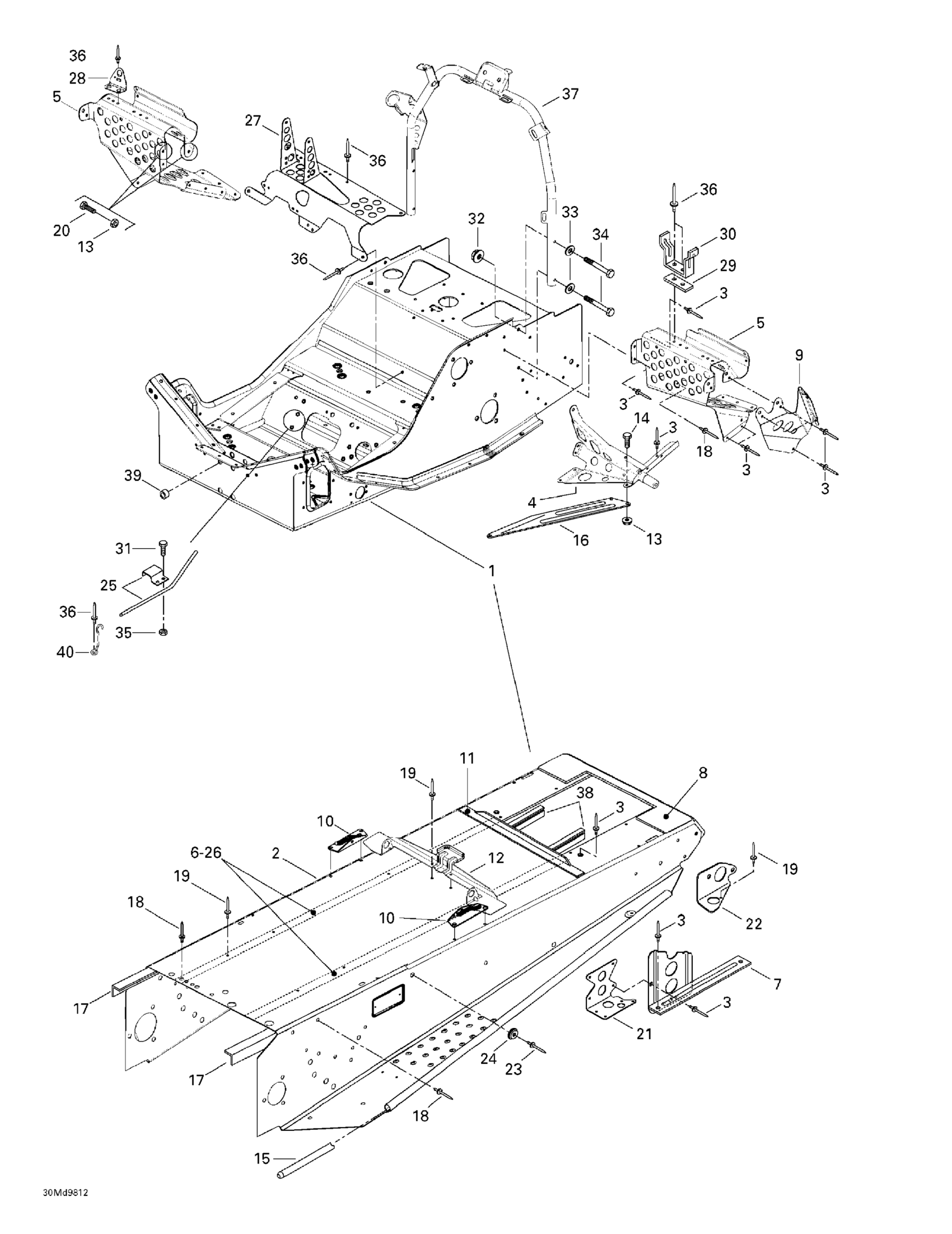

Ski-Doo MX Z X 400 LC, 1998 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 24.
518320640
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
RH Footrest Support
518320506
Unavailable
5
RH Front Footrest
518320602
Unavailable
LH Front Footrest
518320603
Unavailable
6
Frame Protector
518318112
Unavailable
7
LH Rear Bracket
518316723
Unavailable
RH Rear Bracket
518316724
Unavailable
8
Cap-End
518318102
Unavailable
9
Upper Plate L.H
518318121
Unavailable
Upper Plate R.H
518318122
Unavailable
10
RH Tank Bracket
518304747
Unavailable
LH Tank Bracket
518304748
Unavailable
11
Frame Member
518318116
Unavailable
12
Seat Bracket
518317560
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
14
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
15
Reinforcement
518318109
Unavailable
16
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
17
LH Tunnel Reinforcement
518318123
Unavailable
RH Tunnel Reinforcement
518318124
Unavailable
18
Pop Rivet 3/16"
390402300
Unavailable
19
Pop Rivet 3/16"
390402400
Unavailable
21
RH Junction Plate
518321426
Unavailable
LH Junction Plate
518321427
Unavailable
22
RH Rear Reinforcement
518321000
Unavailable
LH Rear Reinforcement
518321100
Unavailable
23
Pop Rivet 1/8", Black
293150189
Unavailable
24
Male Snap
415089100
Unavailable
25
Guide Rope
517293500
Unavailable
26
Protector
415068500
Unavailable
27
Muffler Support
518320611
Unavailable
28
Valve Bracket | MX Z 670 HO.
518310206
Unavailable
31
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Flat Washer 6 mm
234061410
Unavailable
35
Elastic Stop Nut M5
232551414
Unavailable
37
Handle Steering Support
518318400
Unavailable
38
Radiator Protector
415067300
Unavailable
39
Insert
293450166
Unavailable
40
Hook
518320609
Unavailable
