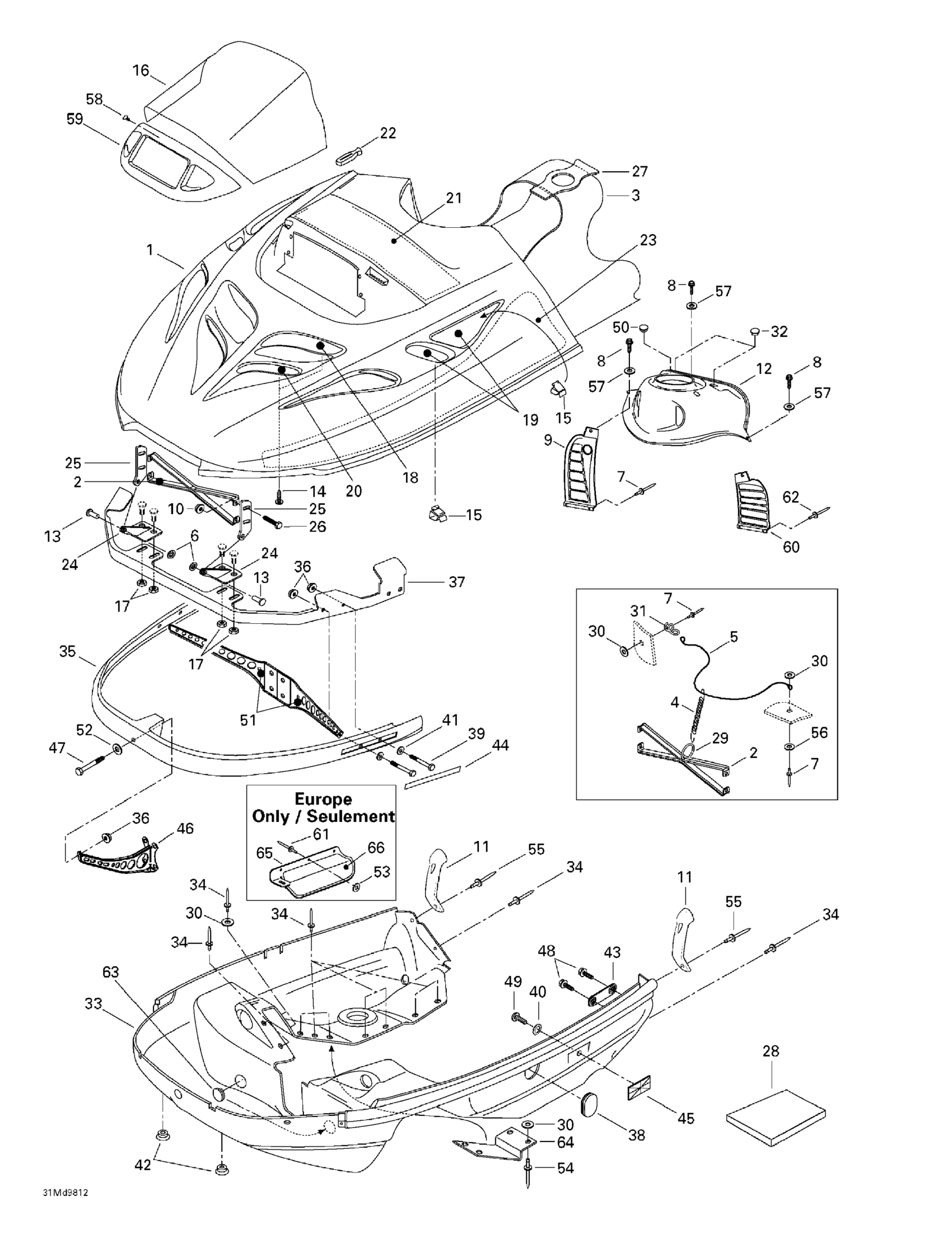

Ski-Doo MX Z X 400 LC, 1998 Cab, Console Diagram

#

Description
Price

1

Cab (Yellow)

572077158

Unavailable

2

Hood Reinfocer

517291600

Unavailable

3

Rear Tank Cover

415089300

Unavailable

4

Spring

414763300

Unavailable

5

Cab Retainer Cable

414212300

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Forming Screw M5 x 16

250000676

$0.83

9

Dash R.H

572094700

Unavailable

Dash RH (Europe)

517302017

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Hood Latch

570027100

Unavailable

12

Dash-Switch

572052703

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.45

16

Low Windshield

415057700

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

RH Upper Grill Ass'y

517298400

Unavailable

LH Upper Grill Ass'y

517298500

Unavailable

19

Side Grill (Black)

517280200

Unavailable

RH Side Grill (Europe) | Formula Z 670.

517301800

Unavailable

LH Side Grill (Europe) | Formula Z 670.

517301802

Unavailable

20

RH Lower Grill

517298600

Unavailable

LH Lower Grill

517298700

Unavailable

21

Center Foam

414985100

Unavailable

22

Windshield Latch

570023800

Unavailable

23

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

27

Front Tank Cover

415089200

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

Unavailable

31

Bracket

517262800

Unavailable

32

Cap | MX Z 670 HO.

572096200

Unavailable

33

Bottom Pan (Yellow)

572076212

Unavailable

34

Pop Rivet 3/16"

390906800

Unavailable

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hinge Bracket

517291500

Unavailable

38

Bottom Pan Cap (Yellow) | MX Z 380 F.

570053704

Unavailable

39

Hex. Screw M6 X 30

207063044

Unavailable

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

Hex. Screw M6 X 40

207064044

$1.48

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Cap

572051500

$5.38

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

Unavailable

53

Washer

517124300

Unavailable

54

Pop Rivet 3/16"

390402300

Unavailable

55

Pop Rivet 3/16"

390906800

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Washer | DS 650 X

391301600

Unavailable

58

Black, Dart

414644300

$0.78

59

Lamp Moulding

572079200

Unavailable

60

Dash L.H

572109300

Unavailable

Dash LH (Europe)

517302018

Unavailable

61

Pop Rivet 3/16"

390906800

Unavailable

62

Pop Rivet 3/16"

390406500

Unavailable

63

Rubber Cover

570041600

Unavailable

64

Deflector | Summit 500.

517296700

Unavailable

65

Deflector (Europe)

502006507

Unavailable

66

Reflective Sheet

502006508

Unavailable
