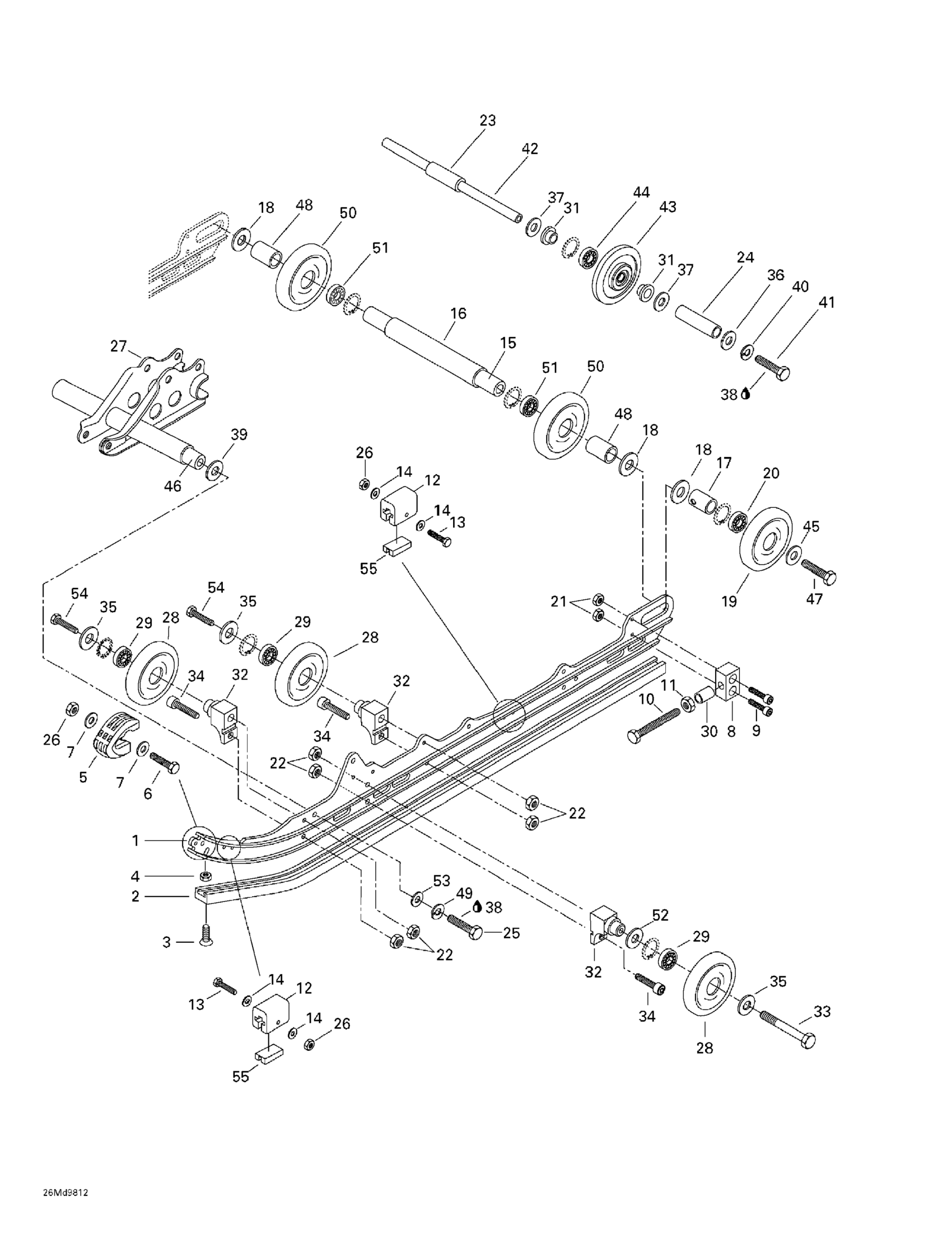

Ski-Doo MX Z X 400 LC, 1998 Rear Suspension Diagram

#

Description
Price

1

Runner (121")

503185800

Unavailable

2

Shoe

560316300

Unavailable

3

Phillips Screw M6 X 25

208562560

$2.21

4

Elastic Stop Nut M6

232561414

$1.78

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.46

8

Tensioner

503168400

Unavailable

9

Socket Head Screw M8 X 30

205083044

$1.06

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Hex. Nut M10 X 1.5

232006414

$1.27

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

$125.34

16

Center Spacer

503156000

$8.66

17

Outer Spacer

503189809

$14.90

18

Washer

503180400

$3.27

19

Wheel 165" | Includes 670 to 670b

503194127

$48.48

20

Ball Bearing

293350115

$10.82

21

Hex. Elastic Stop Nut M8

232581414

$0.54

22

Hex. Flange Elastic Nut M8

233281414

$1.31

23

Center Spacer

503160100

Unavailable

24

External Spacer | Formula Z 583. Formula 583 Deluxe.

503160200

Unavailable

25

Hex. Screw M12 x 40

222024065

Unavailable

26

Elastic Stop Nut M5

232551414

$0.82

27

Welded Shock Support | Formula Z 583. Formula 583 Deluxe.

503182800

Unavailable

28

Wheel 135

503191029

$31.31

29

Ball Bearing

293350115

$10.82

30

TENSIONER SPACER - Call your local BRP dealership

503168500

Unavailable

31

Cushion

415075400

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Hex. Screw M8 X 25

207182544

$0.85

35

Washer

503183100

$2.99

36

Yellow, Washer

503183200

$2.91

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 271, 10 ml

293800005

$23.85

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

$0.87

41

Hex. Screw M8 X 30

207183044

$1.06

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

$10.82

45

Washer

503183300

$5.51

46

Lower Axle

503174800

Unavailable

47

Hex. Screw With Nylon

250000019

$1.63

48

Inner Spacer

503182900

$9.88

49

Lock Washer 12 mm

224721218

Unavailable

50

Thin Wheel 165

503189478

$48.48

51

Ball Bearing

293350115

$10.82

52

WASHER - Call your local BRP dealership

503173700

Unavailable

53

Flat Washer 12 mm

234021410

$0.66

54

Hex. Screw M8 X 80

207088044

$1.54

55

Reinforcement Stopper

572084800

$5.09
