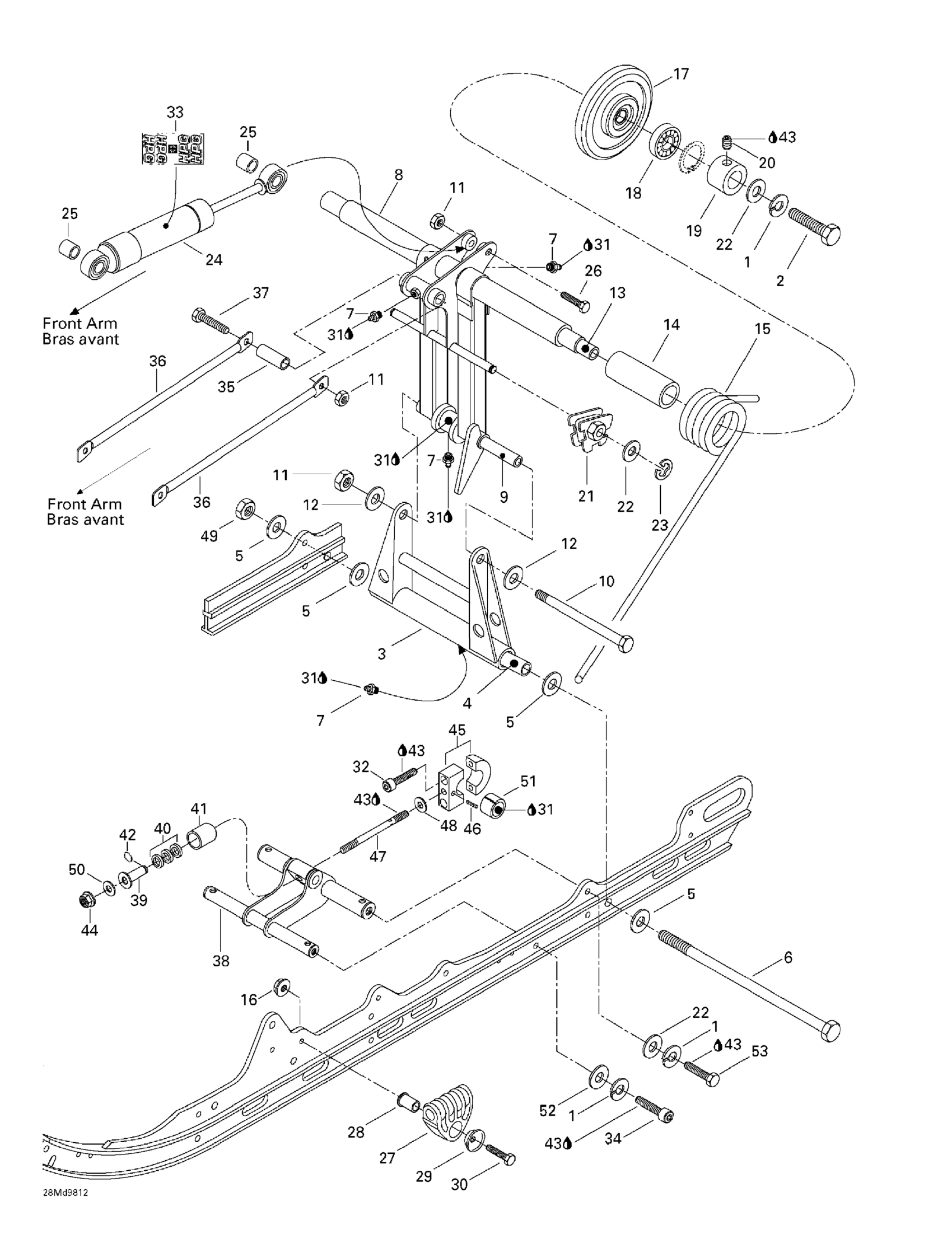

Ski-Doo MX Z X 400 LC, 1998 Rear Arm, Rear Suspension Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$29.07

7

Grease Fitting

408200700

$3.21

8

Welded Rear Arm

503186100

Unavailable

9

Upper Axle, Pivot Arm

503144300

$10.84

10

Bolt M8, Short

732601197

$14.61

11

Hex. Elastic Stop Nut M8

232581414

$0.54

12

Flat Washer 8 mm

234081410

$0.79

13

Upper Axle

503151700

Unavailable

14

Bushing

572080700

$14.81

15

RH Spring

503188100

Unavailable

LH Spring

503188200

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.31

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$10.82

19

Retaining Ring

503168800

$12.27

20

Socket Set Screw M6 X 8

206260844

$1.43

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.12

23

e Circlip

371907100

Unavailable

24

Take Apart Shock | . (Rear Suspension - Rear Shock)

415106800

Unavailable

25

Bushing

414936000

$11.21

26

Hex. Screw M8 X 50

207085044

$1.43

27

Spring Support

503189657

$9.90

28

Spring Axle Guide

503186300

Unavailable

29

Cup

503187600

Unavailable

30

Socket Head Screw M8 x 50

205085044

$1.79

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

32

Allen Screw M8 x 30

222983067

Unavailable

33

HPG Decal | Formula III 600. Formula III 600 R.

414871400

Unavailable

34

Socket Screw M10 X 35

205003544

$1.60

35

Tie Rod Shaft

503158600

Unavailable

36

Tie Rod

503187100

Unavailable

37

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

38

Bracket Weld

503187000

Unavailable

39

Bushing

503172900

Unavailable

40

RUBBER STOPPER - Call your local BRP dealership

570049600

Unavailable

41

Cup

503186800

Unavailable

42

Circlip

371910700

Unavailable

43

Loctite 271, 10 ml

293800005

$23.85

44

Hex. Flange Elastic Nut M10

233201414

$1.45

45

Pivot Block Ass'y | Includes 45 - 48. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

580653800

Unavailable

46

Rolled Pin M3 x 18

732804011

Unavailable

47

Threaded Rod | Formula Z 583.

503169100

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Hex. Flange Elastic Nut M8

233281414

$1.31

50

WASHER - Call your local BRP dealership

503183400

Unavailable

51

CUSHION - Call your local BRP dealership

415027800

Unavailable

52

Washer

503183800

$3.10

53

Hex. Screw M10 X 30

207103044

$1.43
