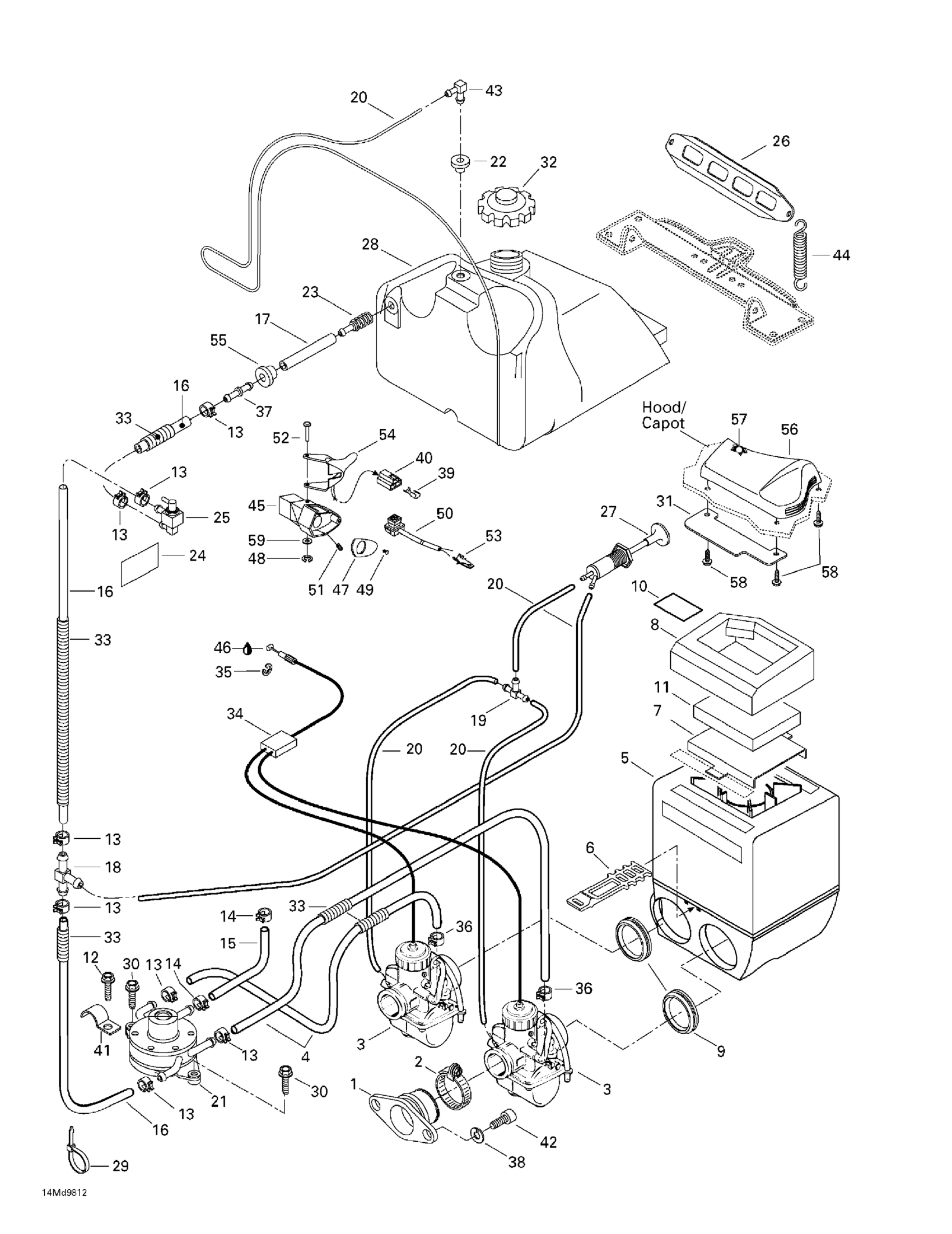

Ski-Doo MX Z X 400 LC, 1998 Fuel System Diagram

#

Description
Price

1

Intake Adaptor

570070200

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

VM 34-856 | Includes 1 - 32. .

403137400

Unavailable

4

Polyurethane Hose 10000Mm Long

219704410

$52.96

5

Air Silencer Ass'y | Includes 5 - 11.

580638611

Unavailable

6

LATCH - Call your local BRP dealership

570069700

Unavailable

7

Grill Intake

517283900

Unavailable

8

Lower Foam | Summit X670.

415125500

Unavailable

9

Intake Adaptor 34 mm

570065100

Unavailable

10

Warning Decal

414161500

Unavailable

11

Air Filter

415014800

$11.15

12

Hex. Flange Screw M6 X 16

210261650

$1.40

13

Spring Clamp

414554800

$0.81

14

Spring Clamp

414415200

$0.81

15

Hose

219704549

$46.24

16

Polyurethane Hose 10000Mm Long

219704410

$52.96

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.52

19

T-Fitting

414222400

$1.52

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

21

Fuel Pump

403900900

Unavailable

22

Grommet

709200285

$8.13

23

Fuel Filter

414865700

$9.63

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$32.06

28

Fuel Tank

572093800

Unavailable

29

Tie Wrap 368 mm

293750008

$0.97

30

Hexagonal Head Screw

210262050

$2.00

31

Deflector | MX Z 670 HO.

517292800

Unavailable

32

Fuel Tank Cap | MXZ X 440 LC.

415065800

Unavailable

33

Tubing 10 MM 1000MM Long

219704407

$2.52

34

Throttle Cable and Housing

415067600

Unavailable

35

Circlip

414274500

$0.85

36

Spring Clamp

414420700

$0.66

37

Elbow Male Connector

414580600

$4.01

38

Lock Washer 8 mm

234181401

$0.87

39

Female Terminal PACKARD

561503200

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

Open Clamp

414176000

$1.81

42

Hex. Screw M8 x 16

207181644

$1.00

43

Male Connector

414814100

$2.12

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Housing

512060603

$10.25

46

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

47

Plate

512060390

$9.03

48

Circlip | Model-RS

414439000

$4.01

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

51

Socket Set Screw M8 X 10

414440800

$3.88

52

Lever Pin

414438700

$10.81

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512060214

$114.15

55

Grommet

570045500

$6.13

56

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

57

Air Filter

414972600

$56.69

58

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

59

Flat Washer M5, Stainless

234051600

$0.73
