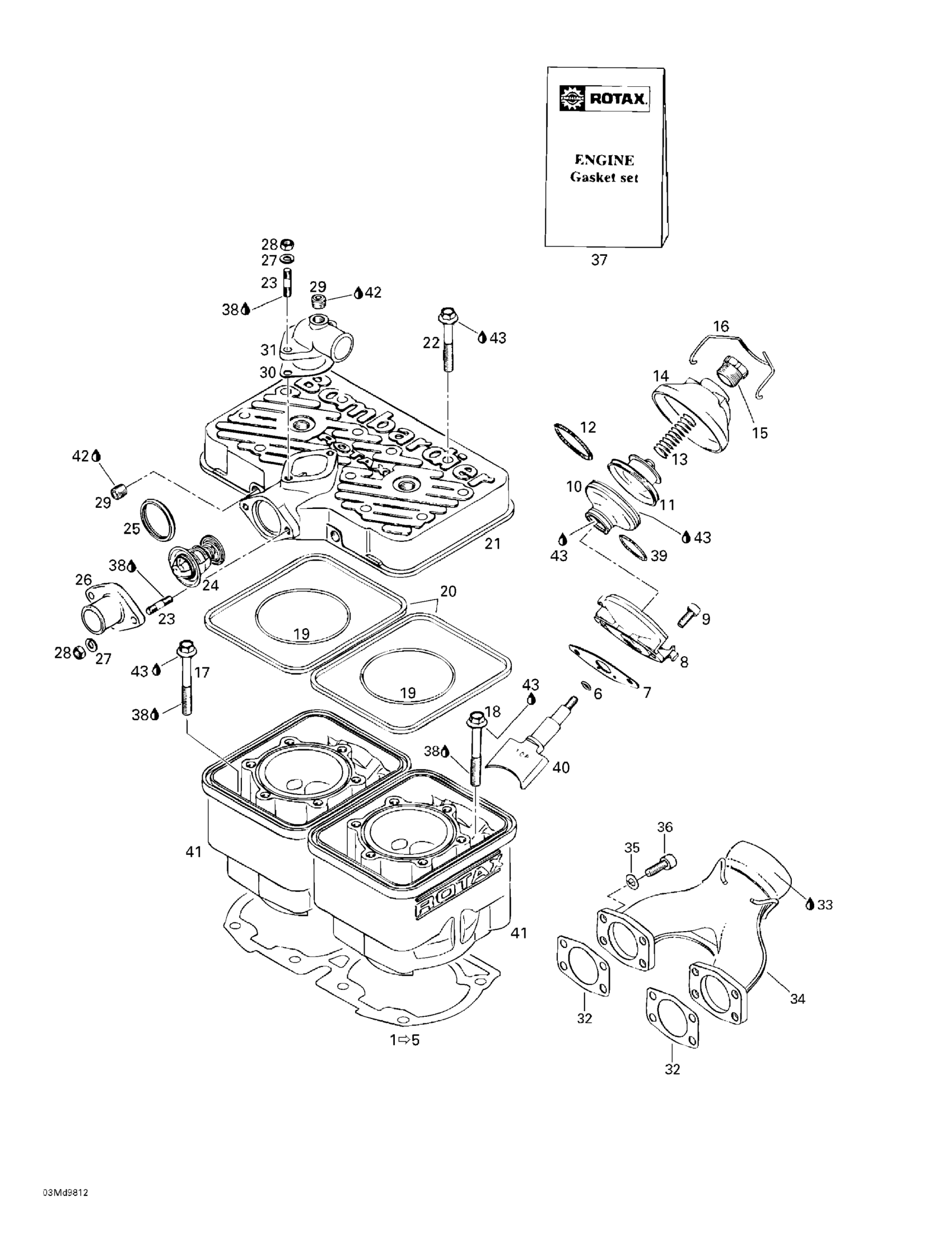

Ski-Doo MX Z X 400 LC, 1998 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

Double Gasket Set | Includes 1 - 5.

420931366

Unavailable

1

Double Gasket 0.8 mm

420931364

Unavailable

2

Double Gasket 0.6 mm

420931362

Unavailable

3

Double Gasket 0.5 mm

420931363

Unavailable

4

Gasket Double 0.4 mm

420931361

Unavailable

5

Double Gasket 0.3 mm

420931360

Unavailable

6

O-Ring

420430110

$3.61

7

Gasket

420250239

$6.62

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

Unavailable

10

Exhaust Bellows

420260723

$35.07

11

Exhaust Valve This part replaces 290253257.

420854449

$29.87

12

Hose Spring This part replaces 420239048.

420939281

Unavailable

13

Spring

420239945

Unavailable

14

Valve Cover

420911552

$37.66

15

Adjuster Screw

420241221

Unavailable

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

Unavailable

18

Hex. Screw M8 x 100 | Formula Deluxe 670.

420940126

Unavailable

19

O-Ring | Grand Touring 500.

420831792

Unavailable

20

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

21

Cylinder Head Cover (Yellow)

420923183

Unavailable

22

Hex. Screw M8 X 56.5

420941627

$8.34

23

Stud M6 x 18 | Formula Z 583. Formula 583 Deluxe.

420941160

Unavailable

24

Thermostat This part replaces 414834100.

420922519

Unavailable

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

27

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

28

Hex. Nut M6

232061414

$0.44

29

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

30

Gasket

420850338

$10.28

31

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

32

Gasket

420850531

Unavailable

33

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

34

Exhaust Manifold

420973221

Unavailable

35

Lock Washer 8 mm

234181401

Unavailable

36

Socket Head Screw M8 X 25

205082544

Unavailable

37

Gasket Set

420886248

Unavailable

38

Loctite 243, 10 ml

293800060

$20.77

39

Hose Spring This part replaces 420838253.

420838255

$6.11

40

Exhaust Valve

420854305

Unavailable

41

Cylinder With Sleeve

420923172

Unavailable

42

Sealant, 100 gr

413707100

Unavailable

43

Dow Corning 111, 150 g

413707000

$57.82
