Description

Price

1

Double Gasket 0.5 mm

420430080

$25.35

1

Double Gasket 0.6 mm

420430081

$27.66

1

Double Gasket 0.7 mm

420430082

$34.58

1

Double Gasket 0.8 mm

420430083

$34.58

1

Double Gasket 0.9 mm

420430084

$19.20

2

Cylinder

420413041

$929.99

2

Cylinder

420413041

$929.99

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

4

O-Ring

420430040

$5.69

5

O-Ring | Included in gasket kit

420931410

$2.67

6

Cylinder Head Cover

420613925

$274.99

7

Hex. Screw M8 X 56.5

420941627

$8.34

8

Noise Sensor

270000484

$65.62

9

Hex. Screw M8 X 35

207083544

$0.92

10

Gasket

420850338

$10.28

11

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

$40.74

12

Torx Flange Screw M6 X 20

420441386

$2.06

13

Gasket

420630780

$4.00

14

COVER - Call your local BRP dealership

420926260

$24.58

15

Torx Screw M6 X 16

420640324

$2.06

16

Reed Valve Ass'y

420924798

$39.20

17

Intake Socket

420667472

$87.66

18

Clamp

420851250

$9.31

19

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

20

Gasket

420430482

$8.23

21

Exhaust Manifold This part replaces 420673373.

420673374

$279.97

22

Gasket Set, Cylinder

420892477

$158.43

23

Gasket Set, Engine

420892472

$343.05

24

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.06

B

Loctite 243, 10 ml

293800060

$20.77

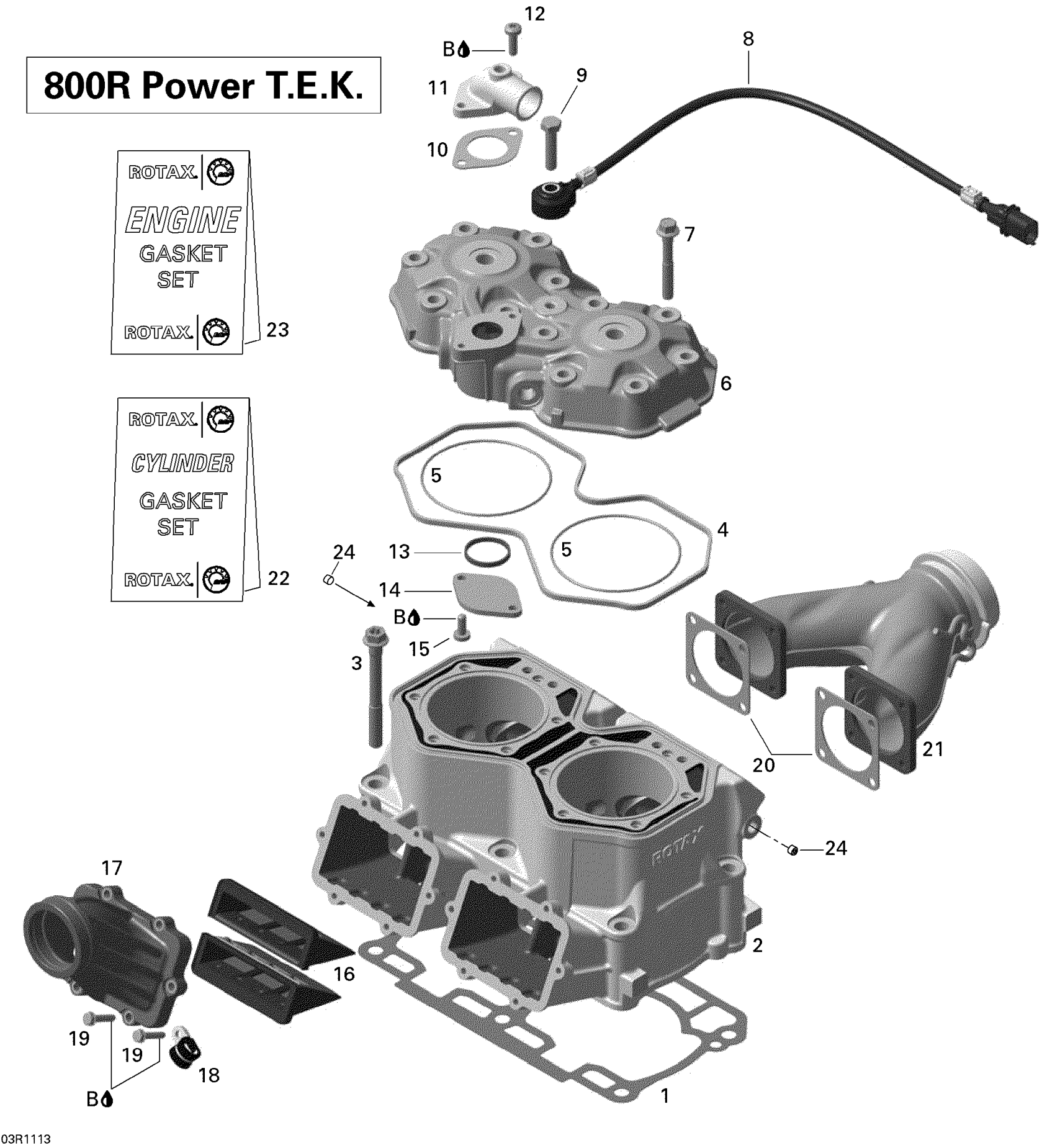

Ski-Doo MX Z TNT 800R PTEK, 2011 Cylinder and Cylinder Head Diagram
