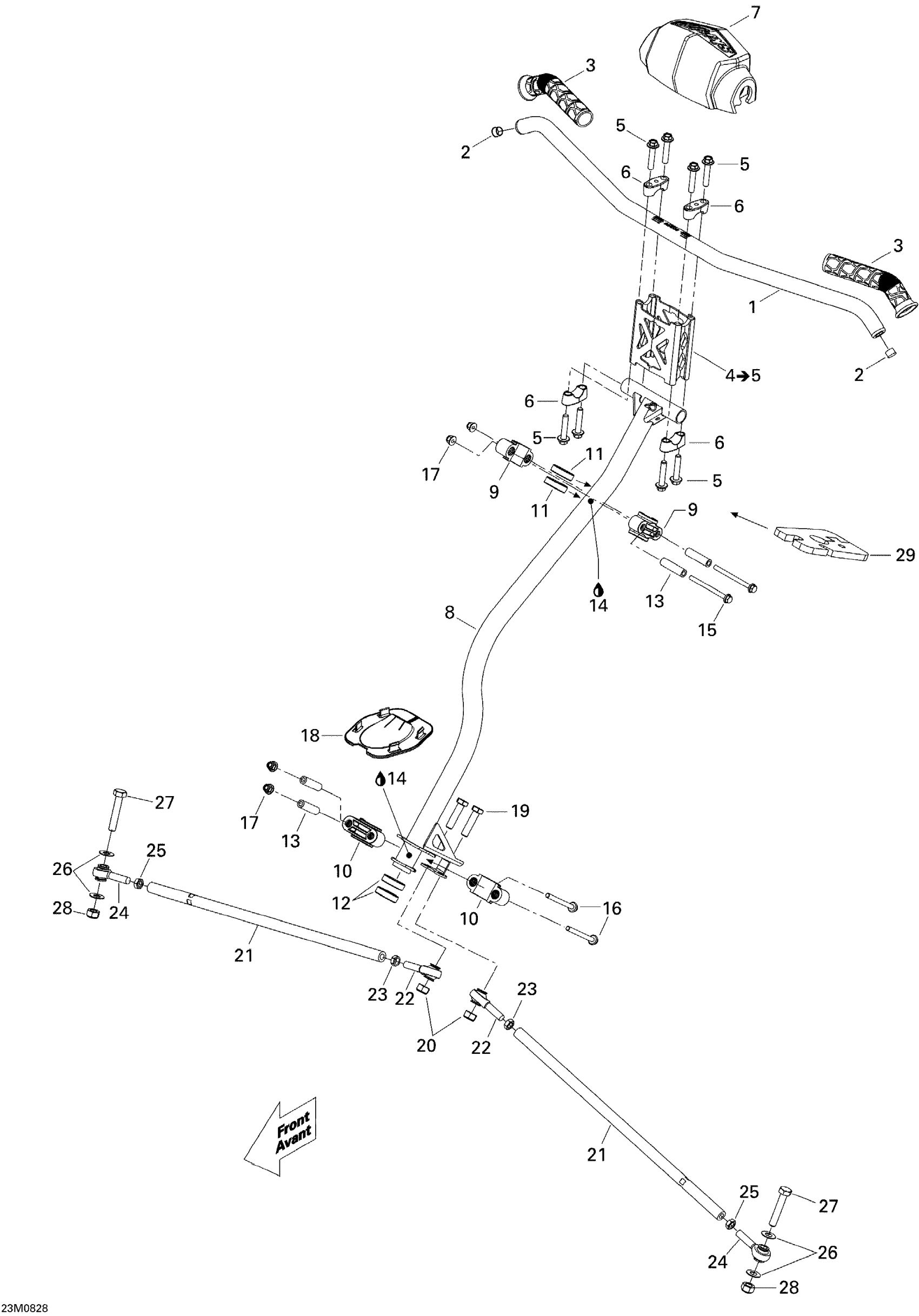

Ski-Doo MX Z TNT 600 H.O. E-TEC (MJ9A, Early Edition), 2009 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

2

Cap

572051500

$5.22

3

Grip

506152486

$14.27

4

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

5

Hex. Flange Screw M8 x 40

250000285

$0.75

6

Steering Support | Includes 40 to 40a

506152751

$11.58

7

Steering Pad

506152192

$52.96

8

Steering Column

506152964

$183.55

9

Upper Half Housing

506152219

$1.63

10

Lower Half-Housing

506152217

$5.40

11

Upper Vibration Ring

506152292

$0.70

12

Lower Vibration Ring

506152518

$4.39

13

Housing Bushing

506152297

$9.93

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Flange Screw M6 X 70

207667056

$4.15

16

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

17

Elastic Flange Nut M6 X 1.0

233261416

$2.00

18

Plate

506152163

$9.93

19

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

20

Elastic Stop Nut M10

232500416

$1.79

21

Tie-Rod Ass'y

506152496

$58.18

22

LH Thread Ball Joint

506152081

$38.78

23

LH Threaded Hex. Jam Nut M10

250100016

$0.70

24

RH Threaded Ball Joint

506152019

$38.78

25

RH Threaded Hex. Jam Nut M10

732610010

$0.70

26

Washer

506152194

$4.28

27

Hex. Screw M10 X 55

207005544

$2.12

28

Elastic Stop Nut M10

232500416

$1.79

29

CUSHION - Call your local BRP dealership

506152334

Unavailable
